| Prod Model: |
PDB-N Series 100-200W |
| Output Voltage: |
5-220VDC |
| Output Current: |
0-10A |
| Size: |
180*115*27mm |
| Warranty: |
2 Years |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Separate-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
ISO |
| Output Type: |
Dual/Triple |
| Output Power: |
100-200W |
| Input Voltage: |
9-72VDC |
| Brand: |
Pengtu |
Product Description

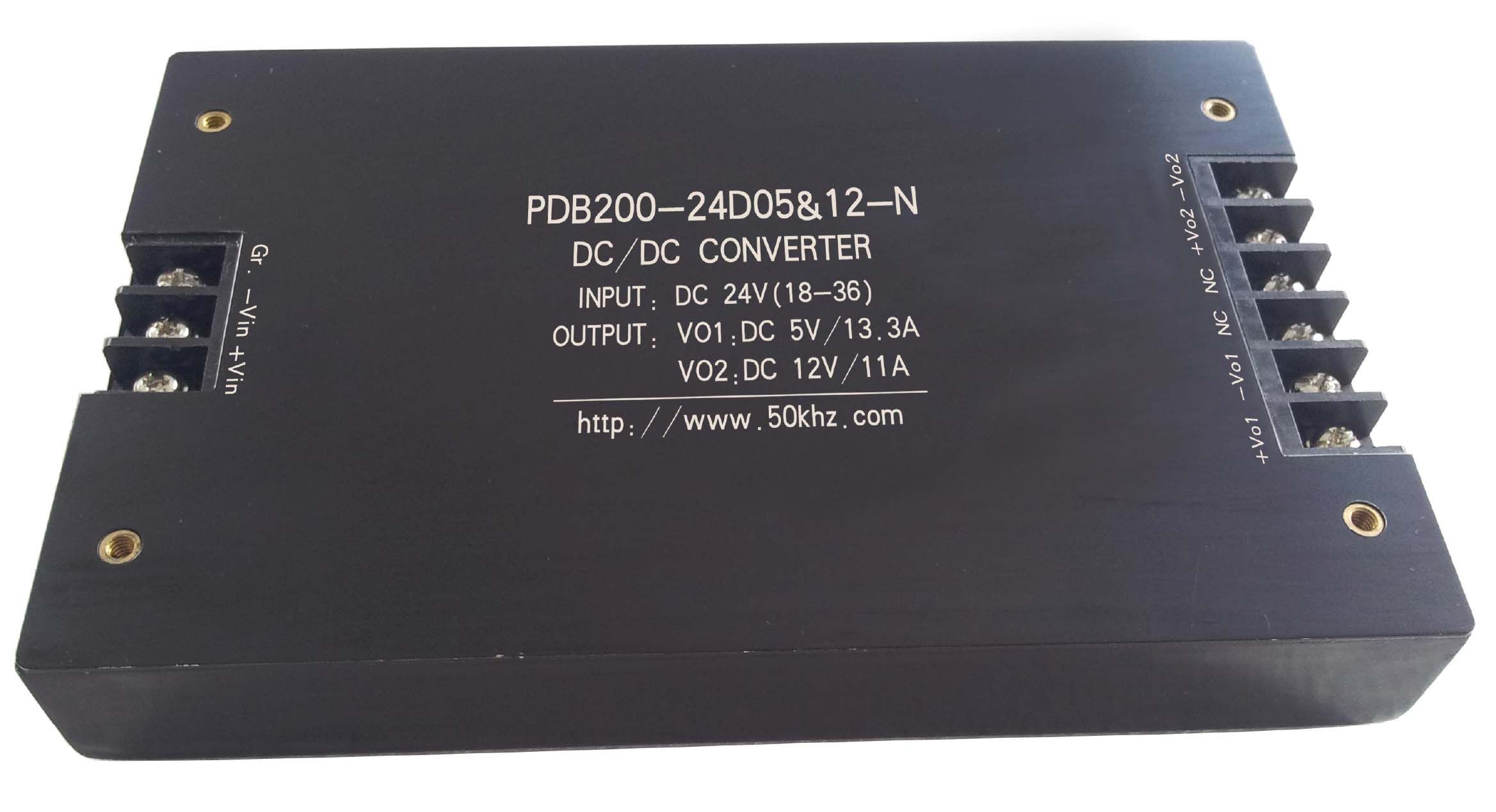

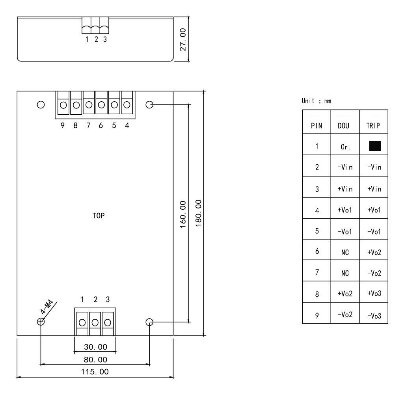

100-200W Dual/ Triple output smpsProduct Description Features l II type input filterl 2X voltage inputl Constant output currentl Output short circuit protectionl Design for high reliability, long lifetimel Easy installation, single side pin outl Best case attaching mode Input Characteristic l Inputvoltage range............9 ~ 18 VDC Rated value: 12VDC 18 ~ 36 VDC Rated value: 24VDC 36~ 72 VDC Rated value: 48VDC Reverse Protection Fuse Outside Output Characteristic l Voltage set-point accuracy .........±1%l Output Volt. adjusted...................................±10%l Line regulation(main) .................±0.2%l Load regulation(main) ......….......…±0.4%l Temperature coefficient ..............…±0.01%/ºCl Output current limiting ...............… 120%(Typ)l Dynamic response ............… 400μsl Output current ...............… 5-40Al Output voltage ...............… 5-48Vl Power ..................... 100-200W General Characteristic l Switching frequency ............ 160-200 KHzl Isolation resistance ............ 200 MΩl MTBF ..................… >500000Hl Isolation voltage Input-output:>1500 VDC Input-case: >1050 VDC Output-case: >500 VDC l Environmental Characteristic Case temperature ............ Industry: -25+85ºC; Military I: -40~ +85ºC; Military II: -55~ +85ºC Storage temperature ........... Industry: -45~ +105ºC; Military: -55~ +105ºC Models | Model | Output Lines | Input Voltage (V) | Input Voltage Range (V) | Output Voltage (V) | Output Current (A) | Ripple pk-pk (mv) | Efficieency (Typ) |
| PDB200-24D05&12-N | Dual | 24 | 18-36 | 05&12 | 13.3&11 | 50&100 | 88% |
| PDB200-24D12&24-N | Dual | 24 | 18-36 | 12&24 | 11&2.8 | 100&200 | 89% |
| PDB200-48D12&24-N | Dual | 48 | 36-72 | 12&24 | 8.3&4.16 | 100&200 | 89% |
| PDB104-24T05&12&24-N | Triple | 24 | 18-36 | 05&12&24 | 4&2&2.5 | 100&150&50 | 82% |
| PDB104-24T05&12&48-N | Triple | 24 | 18-36 | 05&12&48 | 4&2&1.25 | 150&200&50 | 83% |
| PDB104-48T05&12&24-N | Triple | 48 | 36-72 | 05&12&24 | 4&2&2.5 | 100&150&50 | 89% |
| PDB104-48T05&12&48-N | Triple | 48 | 36-72 | 05&12&48 | 4&2&1.25 | 200&300&50 | 89% |
