| Prod Model: |
PAB-E Series 100-300w |
| Size: |
196*162*60mm |
| Warranty: |
2 Years |
| Input Voltage: |
110-220V |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Separate-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
ISO |
| Output Type: |
Single/Dual/Triple |
| Output Power: |
100-300W |
Product Description

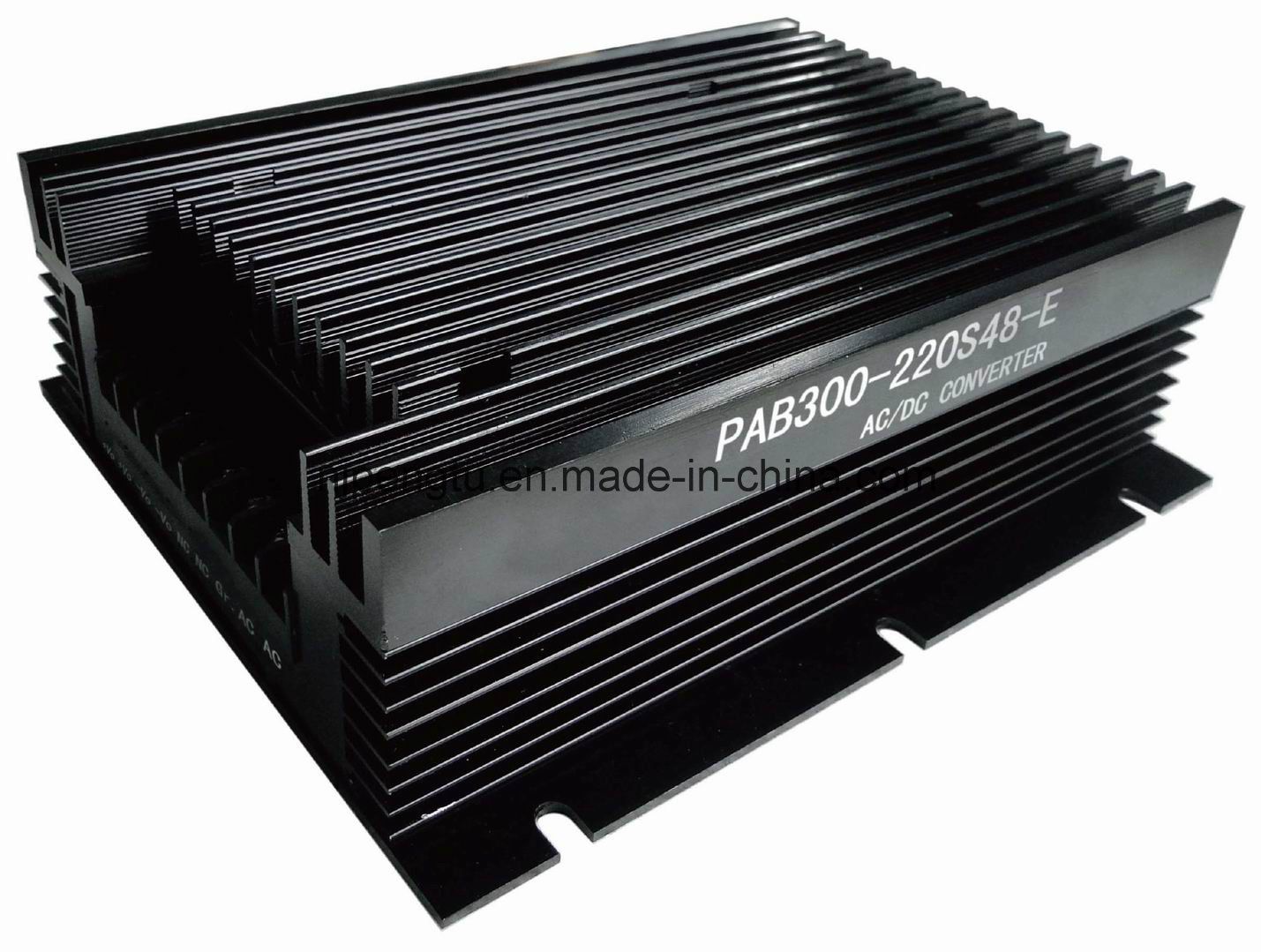

PAB-E Series 100-300W
Product Description
Features
l Wide input voltage
l Broadband noise filter of input
l Surge suppress circuit of input
l Comply with UL1950, IEC950 safety regulation
l Nice shape design
l Easy Installation
l Terminal connection method
l Fast dynamic response
Input Characteristic
l Inputvoltage range............176 ~ 264 VAC Rated value: 220VAC
Reverse Protection
Fuse Outside
Output Characteristic
l Voltage accuracy ..........................±1%
l Output Voltage Range .......................±10%
l Line regulation(main) .................±0.2%
l Load regulation(main) ......….......…±0.4%
l Temperature coefficient ..............…±0.01%/ºC
l Output current limiting ...............… 120%(Typ)
l Dynamic response ............… 400μs
l Output current ...............… 4-40A
l Output voltage ...............… 5-48VDC
l Power ..................... 100-300W
General Characteristic
l Switching frequency ............ 160-200 KHz
l Isolation resistance ............ 200 MΩ
l MTBF ..................… >500000H
l Isolation voltage
Input-output:>1500 VAC/Min (Leakage current<5mA)
Input-case: >1500 VAC /Min (Leakage current<5mA)
Output-case: >500 VDC/Min
l Environmental Characteristic
Case temperature ............ Industry: -25-+85ºC; Military I: -40-+85ºC; Military II: -55-+85ºC
Storage temperature ........... Industry: -45~ +105ºC; Military: -55-+105ºC
Models
| Model | Output Lines | Input V. (V) | Input V. Range (V) | Output V.(V) | Output Curr.(A) | Ripple (mv) | Efficieency (Typ) |
| PAB150-220S05-E | Single | 220 | 176-264 | 5 | 30 | 50 | 82% |
| PAB300-220S12-E | 220 | 176-264 | 12 | 25 | 120 | 83% |
| PAB300-220S15-E | 220 | 176-264 | 15 | 20 | 150 | 84% |
| PAB240-220S24-E | 220 | 176-264 | 24 | 10 | 200 | 87% |
| PAB480-220S48-E | 220 | 176-264 | 48 | 10 | 400 | 88% |
| PAB170-220D05&12-E | Dual | 220 | 176-264 | 05&12 | 10&10 | 50&100 | 85% |
| PAB320-220D12&24-E | 220 | 176-264 | 12&24 | 10&8.33 | 120&200 | 88% |
| PAB200-220D05&15-E | 220 | 176-264 | 05&15 | 10&10 | 50&150 | 84% |
| PAB150-220D05&05-E | 220 | 176-264 | 05&05 | 15&15 | 50&50 | 85% |
| PAB360-220D12&12-E | 220 | 176-264 | 12&12 | 15&15 | 120&120 | 85% |
| PAB300-220D15&15-E | 220 | 176-264 | 15&15 | 10&10 | 150&150 | 87% |
| PAB240-220D24&24-E | 220 | 176-264 | 24&24 | 5&5 | 240&240 | 88% |
Remarks: Custom-made specifications are acceptable.

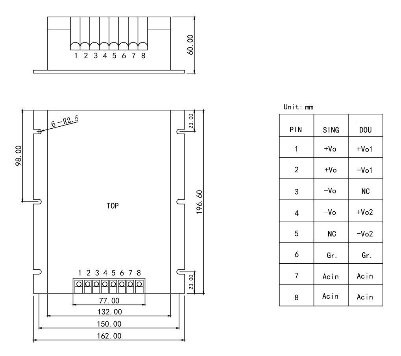

Mechanical drawing and pin definition
Our service
1.Your inquiry will be reply within 24hours
2.Well-trained and experienced staffs to answer all your inquiries in English
3.We have strictly management on the production and quality control
4.We have our own factory and professional engineers team to help you to resolve the prombles
5.We are greatly to accept the sample order for testing our quality ,serive and your market
Warranty term
1. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, we will provide free new products or components based on the proof-documents.
2. If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instuction, we will provide paid .
