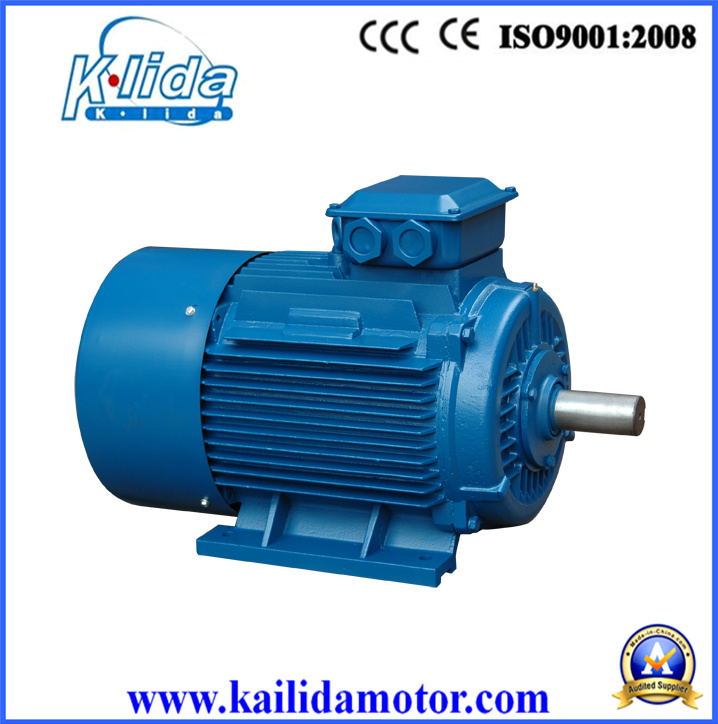

100 HP 4 Pole Three Phase Electric Motors, Induction Motors

Prod Model:	Y2-280S-4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	Kailida or OEM Brand
Model:	Y2-280s-4
Output Power:	75kw, 100HP
Frequency:	50Hz, 60Hz or 50/60Hz
AC Voltage:	380/660V
Type:	Induction Motor
Protect Feature:	Totally Enclosed
Efficiency:	Ie1, Ie2
Place Of Origin:	Zhejiang, China (Mainland)
Application:	Universal
Operating Speed:	Constant Speed
Number Of Stator:	Three-Phase
Species:	Y, Y2 Series Three-Phase
Rotor Structure:	Winding Type
Casing Protection:	Protection Type
Starting Mode:	Direct on-line Starting
Brand:	K.Lida
Certification:	Ce

Product Description

Technical parameter:

1, Frame Size: 63-355 MM;
2, Rated Output: 0.12- 315 KW or 0.15- 465 HP;
3, Rated Voltage: 380/660 V or to be your request;
4, Rated Frequency: 50 Hz, 60 Hz, 50 Hz / 60 Hz;
5, Poles: 2 / 4 / 6 / 8 / 10;
6, Speed: 590 - 2980 r/min
7, Ambient Temperature: -15° C- 40° C
8, Model of CONEECTION: Y-Connection for 3 KW motor or less while Delta-Connection for 4 KW motor or more;
9, Mounting: B3; B35; B34; B14; B5; V1;
10, Current: 1.5- 465 A (AC);
11, Duty: Continuous (S1);
12, Insulation Class: B / F;
13, Protection Class: IP54 / IP55;
14, Cooling Method: ICO 141 Standards;
15, Altitude: No more than 1, 000 meters above sea level;
16, Packing: 1PC in a Strong carton several cartons on a Pallet.

Type	Rated Power		Current	Speed	EFF	Power Factor
	kW	HP	A	r/min	(%)	COSφ
Y2-631-2	0.18	0.24	0.53	2730	65	0.8
Y2-632-2	0.25	0.33	0.69	2730	68	0.81
Y2-711-2	0.37	0.5	0.99	2750	70	0.81
Y2-712-2	0.55	0.75	1.39	2790	73	0.82
Y2-80M1-2	0.75	1	1.83	2845	75	0.83
Y2-80M2-2	1.1	1.5	2.6	2840	77	0.84
Y2-90S-2	1.5	2	3.5	2840	79	0.84
Y2-90L-2	2.2	3	4.9	2840	81	0.85
Y2-100L-2	3	4	6.4	2850	83	0.87
Y2-112M-2	4	5.5	8.1	2890	85	0.88
Y2-132S1-2	5.5	7.5	11	2910	86	0.88
Y2-132S2-2	7.5	10	15	2920	87	0.88
Y2-160M1-2	11	15	22	2935	88	0.89
Y2-160M2-2	15	20	29	2935	89	0.89
Y2-160L-2	18.5	25	35	2935	90	0.9
Y2-180M-2	22	30	41	2940	90	0.9
Y2-200L1-2	30	40	56	2945	91.2	0.9
Y2-200L2-2	37	50	68	2945	92	0.9
Y2-225M-2	45	60	82	2950	92.3	0.9
Y2-250M-2	55	75	100	2965	92.5	0.9
Y2-280S-2	75	100	136	2965	93	0.9
Y2-280M-2	90	125	160	2965	93.8	0.91
Y2-315S-2	110	150	196	2975	94	0.91
Y2-315M-2	132	180	234	2975	94.5	0.91
Y2-315L1-2	160	215	280	2975	94.6	0.92
Y2-315L2-2	200	270	348	2975	94.8	0.92
Y2-355M2-2	250	340	433	2980	95.3	0.92
Y2-355L2-2	315	420	544	2980	95.6	0.92
Y2-631--4	0.12	0.16	0.44	1320	57	0.72
Y2-632-4	0.18	0.24	0.62	1320	60	0.73
Y2-711-4	0.25	0.33	0.79	1350	65	0.74
Y2-712-4	0.37	0.5	1.12	1340	67	0.75
Y2-80M1-4	0.55	0.75	1.57	1390	71	0.75
Y2-80M2-4	0.75	1	2.05	1380	73	0.76
Y2-90S-4	1.1	1.5	2.9	1390	75	0.77
Y2-90L-4	1.5	2	3.7	1410	78	0.79
Y2-100L1-4	2.2	3	5.2	1410	80	0.81
Y2-100L2-4	3	4	6.8	1440	82	0.82
Y2-112M-4	4	5.5	8.8	1445	84	0.82
Y2-132S-4	5.5	7.5	11.9	1445	85	0.83
Y2-132M-4	7.5	10	16	1460	87	0.84
Y2-160M-4	11	15	23	1470	88	0.84
Y2-160L-4	15	20	30	1470	89	0.85
Y2-180M-4	18.5	25	36	1475	90.5	0.86
Y2-180L-4	22	30	43	1475	91	0.86
Y2-200L-4	30	40	58	1475	92	0.86
Y2-225S-4	37	50	70	1485	92.5	0.87
Y2-225M-4	45	60	85	1485	92.8	0.87
Y2-250M-4	55	75	103	1485	93	0.87
Y2-280S-4	75	100	140	1485	93.8	0.87
Y2-280M-4	90	125	197	1485	94.2	0.87
Y2-315S-4	110	150	201	1485	94.5	0.87
Y2-315M-4	132	180	241	1485	94.8	0.88
Y2-315L1-4	160	215	288	1485	94.9	0.88
Y2-315L2-4	200	270	360	1485	95	0.89
Y2-355M3-4	250	340	443	1490	95.3	0.9
Y2-355L3-4	315	420	556	1490	95.6	0.9
Y2-711-6	0.18	0.24	0.74	865	0.66	56
Y2-712-6	0.25	0.33	0.95	865	0.68	59
Y2-801-6	0.37	0.5	1.3	885	0.7	62
Y2-802-6	0.55	0.75	1.79	885	0.72	65
Y2-90S-6	0.75	1	2.3	915	0.72	69
Y2-90L-6	1.1	1.5	3.2	915	0.73	72
Y2-100L-6	1.5	2	4	910	0.75	76
Y2-112M-6	2.2	3	5.6	940	0.76	79
Y2-132S-6	3	4	7.5	960	0.76	81
Y2-132M1-6	4	5.5	10	960	0.76	82
Y2-132M2-6	5.5	7.5	13	960	0.77	84
Y2-160M-6	7.5	10	17	970	0.77	86
Y2-160L-6	11	15	25	970	0.78	87.5
Y2-180L-6	15	20	32	970	0.81	89
Y2-200L1-6	18.5	25	39	975	0.81	90
Y2-200L2-6	22	30	45	975	0.83	90
Y2-225M-6	30	40	59	980	0.84	91.5
Y2-250M-6	37	50	71	980	0.86	92
Y2-280S-6	45	60	86	980	0.86	92.5
Y2-280M-6	55	75	105	980	0.86	92.8
Y2-315S-6	75	100	142	935	0.86	93.5
Y2-315M-6	90	125	170	935	0.86	93.8
Y2-315L1-6	110	150	207	935	0.86	94
Y2-315L2-6	132	180	245	935	0.87	94.2
Y2-355M1-6	160	215	292	990	0.88	94.5
Y2-355M2-6	200	270	365	990	0.88	94.7
Y2-355L-6	250	340	455	990	0.88	94.9
Y2-80M1-8	0.18	0.24	0.88	645	0.61	51
Y2-80M2-8	0.25	0.33	1.15	645	0.61	54
Y2-90S-8	0.37	0.5	1.49	670	0.61	62
Y2-90L-8	0.55	0.75	2.17	670	0.61	63
Y2-100L1-8	0.75	1	2.4	680	0.67	71
Y2-100L2-8	1.1	1.5	3.4	680	0.69	73
Y2-112M-8	1.5	2	4.4	700	0.69	75
Y2-132S-8	2.2	3	6	710	0.71	78
Y2-132M-8	3	4	7.9	710	0.73	79
Y2-160M1-8	4	5.5	10.3	720	0.73	81
Y2-160M2-8	5.5	7.5	13.6	720	0.74	83
Y2-160L-8	7.5	10	18	720	0.75	85.5
Y2-180L-8	11	15	25	730	0.76	87.5
Y2-200L-8	15	20	34	730	0.76	88
Y2-225S-8	18.5	25	41	730	0.76	90
Y2-225M-8	22	30	48	730	0.78	90.5
Y2-250M-8	30	40	64	730	0.79	91
Y2-280S-8	37	50	78	735	0.79	91.5
Y2-280M-8	45	60	95	735	0.79	92
Y2-315S-8	55	75	112	735	0.81	92.8
Y2-315M-8	75	100	151	735	0.81	93
Y2-315L1-8	90	125	178	735	0.82	93.8
Y2-315L2-8	110	150	217	735	0.82	94
Y2-355M1-8	132	180	261	745	0.82	93.7
Y2-355L-8	200	270	388	745	0.83	94.5

Kailida motors advantage:

Prompt Quotation.
Competitive Price
Guaranteed Quality
Timely Delivery.
100% Tested.
Sincere and Professional Service.
Outstanding Finishing Surface.
Strictly and Perfect Management is guaranteed for Production.
Specialized in Manufacturing and Supplying a wide range of Electric Motors since year 2002.
Have Rich Experience and Strong ability to Develop New Products.
Have Ability to Design the Products Based on Your Original Samples.


Our promise:

Prompt Reply to Your Inquiry within 24 Hs during Working Days.
Long Life Time Products
Products One Year Guarantee from the Date of Sales.
Professional Service in Handling Your Goods in Daily Communications
Deliver Time about 15-20 days for Normal Models.
Deliver Time about 30 days for New Models upon Receiving the New Samples.

Welcome your sincere inquiry about ELECTRIC MOTORS, We look forward you to visiting our factory. We remain the best service all the time. Thank you very much.
