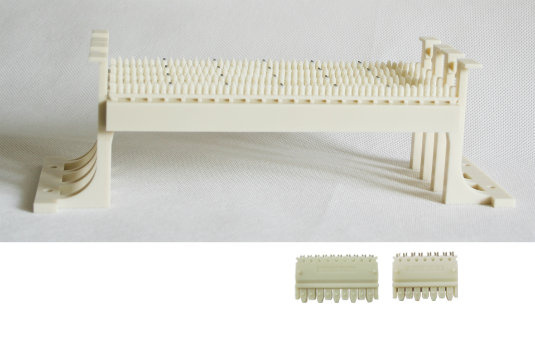

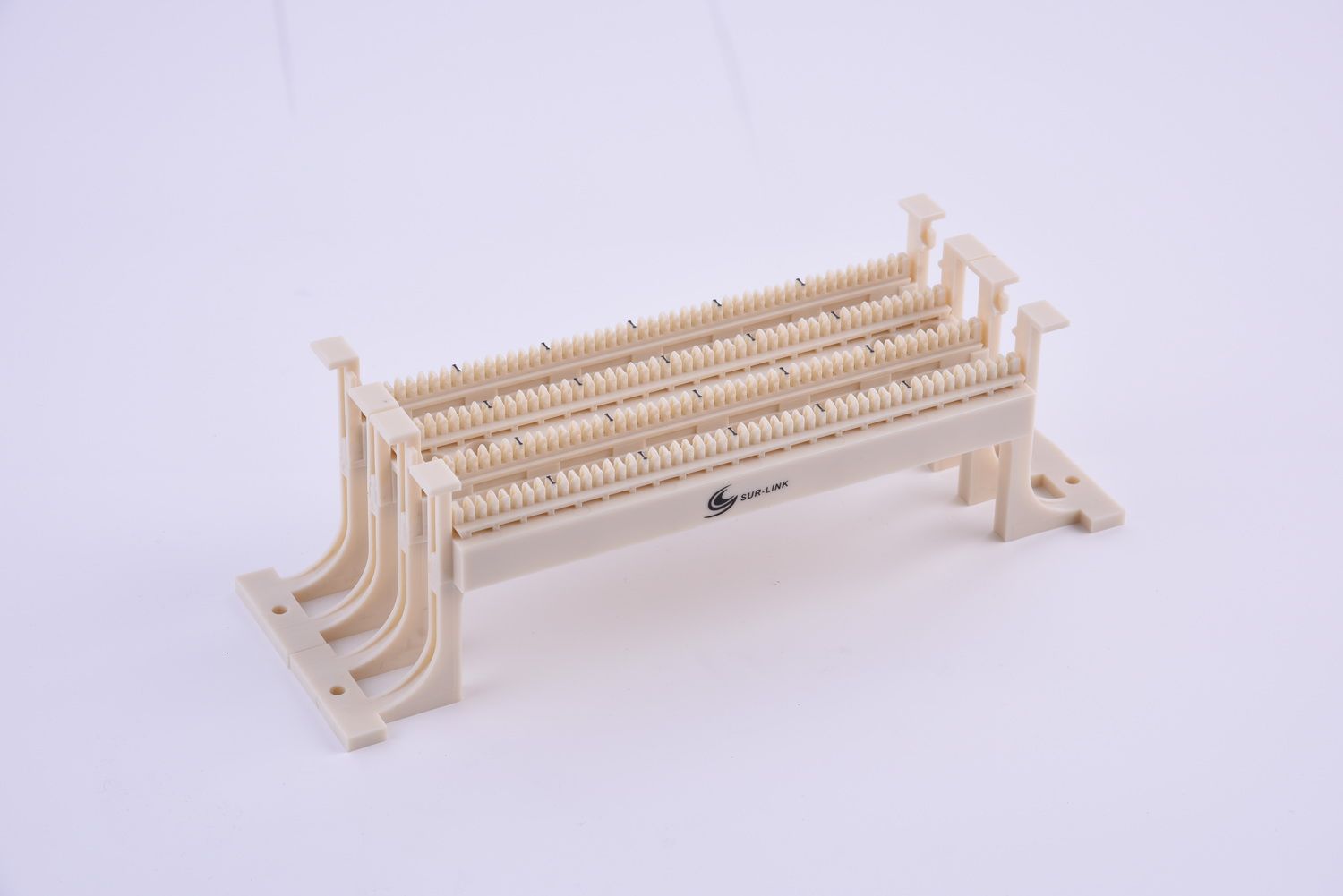

100 Pair Wiring Blocks with Legs for Patch Cord

Name: 100 Pair Wiring Blocks with Legs for Patch Cord
Brand: all-electronics-online.com
SKU: 810980975
Availability: InStock
Rating: 4.3 (46 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	SWB-115601
Housing:	Plastic
Application:	Computer
Environmental Protection:	General
Connection Mode:	Push-Pull Connection
Shape:	Rectangle
Contact Termination Form:	Winding Connection
Brand:	Sur-Link

Product Description

Product model:SWB-115601

Description:Wiring Blocks, 100 Pair, with Legs

ELECTRICAL:

1. VOLTAGE RATING: 125 VAC RMS

2. CURRENT RATING: 1.5 AMP

3. CONTACT RESISTANCE: 100 MILLIOHMS MAX

4. INSULATION RESISTANCE: 1000 MEGOHMS MIN @ 500 VDC

5. DIELECTRIC STRENGTH: 750 AC RMS 60HZ, 1MIN

MECHANICAL:

1. BASE MATERIAL: PC UL94V-0

2. CABLE BINDER MATERIAL: PC UL94V-0

3. LEG MATERIAL: PC UL94V-0

4. IDC HOUSING AND PLATE: PC UL94V-0

5.TERMINALS MATERIAL: PHOSPHOR BRONZE T=0.8mm

6.WIRE: AWG 24~26

ORDERING INFORMATION:

Product Code	Description	Packaging	Carton Size	GW
SWB-115601	Wiring Blocks, 100 Pair, with Legs	20 PCS	402953 cm	10 kg
