| Prod Model: |
JPR292 |
| Color: |
Black |
| Other Services: |
ODM OEM |
| Delivery Time: |
30 Days After Deposit |
| Application: |
Refrigeration, Air Conditioning and Heating |
Product Description

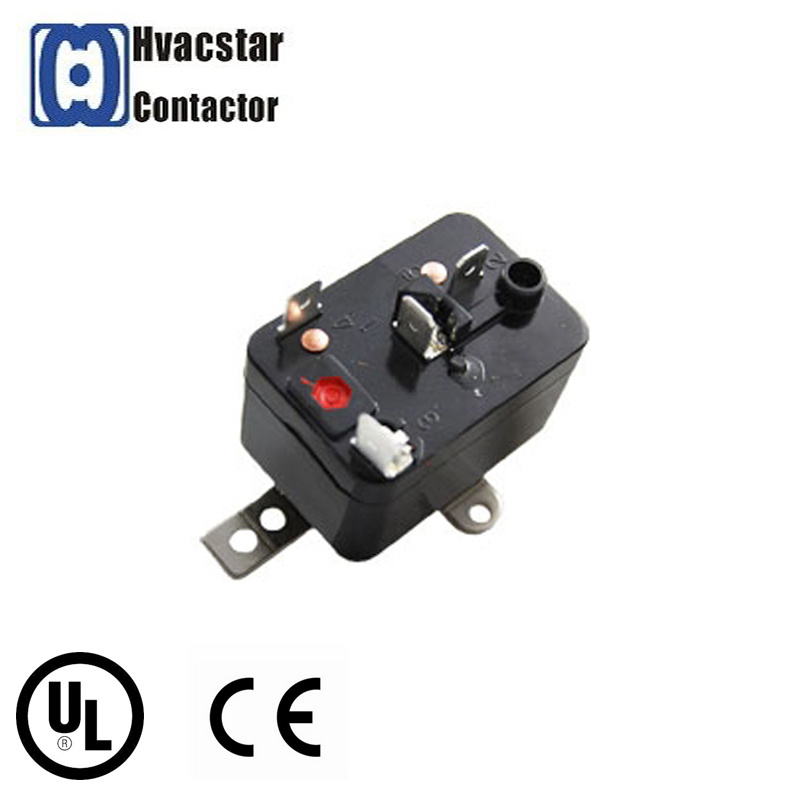

100% Safe AC Relay High Power/Fan Relay With UL Certificated
About Us
Mingguang Hecheng electrical Co.,LTD , is a master of manufacturing all Kinds of Relay, Founded in Mingguang City,China, in 2005, stepped into the HVAC industry as a reliable source .Our strongest domestic suppliers and our vast experience with global trading, allows us to bring the most innovative and highest quality products available to our customers.
Products Details
FEATURES:
1) 16A switching capability
2)2.5kV dielectric strength(between coil and contacts)
3) Panel mount types available
4) Environmental friendly product(RoHS COMPLIANT)
5) Outline Dimensions: 47.0×32.0×28.5mm
| Amps Resistive | 16 |
| Coil Voltage | 24 |
| FLA/LRA at 250 Volts | 8/25 |
| Switch Type | SPST-NO |
| Contact arrangement | 1A, 1B, 1C |
| Contact resistance: | 50mΩ max.(at 1A 24VDC) |
| Contact Material | Silver alloy |
Contact rating:
(Res. Load) | Form A: 16A 250VAC, resistive load |
| Form B: 8A 250VAC, general load |
| Form C: 16A 250VAC, resistive load |
| Max. Switching Voltage: | 250VAC |
| Max. Switching Current: | 16A |
| Max. Switching Power: | 4000VAC |
| Mechanical endurance: | 1×106OPS |
| Electrical endurance: | Form A: SPST-NO 1×10 5OPS(16A 250VAC, Resistive load, at 65 ºC 1s on 9s off) |
| Form B: SPST-NC 3×10 4OPS(8A 250VAC, General use, at 40 ºC 1s on 9s off) |
| Form C: SPDT-NO+NC 1×10 5OPS(16A 250VAC, Resistive load, at 65 ºC 1s on 9s off) |
Products CHARACTERISTICS
| Insulation resistance | 500MΩ max.(at500VDC) |
Dielectric strength | Between coil & contacts | 2500vac 1min |
| Between open contact | Dust protected |
| Operate time(at nomi. Volt.) | DC type: 25ms Max. |
| Release time(at nomil. Volt.) | DC type: 25ms Max. |
| Temperature rese(at nomil. Volt.) | 90K Max. |
| Shock resistance(Functional) | 147m/s2 11ms |
| Vibration resistance | 10Hz to 55Hz 2.54mm DA |
| Ambient temperature | -40ºC to 65ºC |
| Humidity | 5% to 85% RH |
| Termination | QC |
| Unit weight | Approx. 71g |
| Construction | Dust protected |
COIL DATA at 23ºC
Nominal Voltage
VDC | Pick-up Voltage VDC max. | Drop-out Voltage
VDC min. | Max. Voltage VDC | Coil ResistanceΩ |
|
| 6 | 4.50 | 0.6 | 6.6 | 17.5×(1±10%) |
| 9 | 6.75 | 0.9 | 9.9 | 40×(1±10%) |
| 12 | 9.00 | 1.2 | 13.2 | 70×(1±10%) |
| 24 | 18.00 | 2.4 | 26.4 | 280×(1±10%) |
| 48 | 36.00 | 4.8 | 52.8 | 1120×(1±10%) |
| 120 | 90.00 | 12 | 132 | 7000×(1±10%) |
Nominal Voltage
VAC | Pick-up Voltage VDC max. | Drop-out Voltage
VDC min. | Max. Voltage VDC | Coil ResistancΩ |
|
| 6 | 5.1 | 1.2 | 6.6 | 4.8×(1±10%) |
| 12 | 10.2 | 2.4 | 13.2 | 19×(1±10%) |
| 24 | 20.4 | 4.8 | 26.4 | 90×(1±10%) |
| 48 | 40.6 | 9.6 | 52.8 | 300×(1±10%) |
| 120 | 102.0 | 24 | 132 | 2000×(1±10%) |
| 240 | 204.0 | 48 | 264 | 7200×(1±10%) |
| 277 | 235.0 | 55.4 | 304.7 | 11000×(1±10%) |
This Item Replaces
| White-Rodgers | 90-290 |
| RBM | 90-290Q |
| Mars | 90290 |
