100% Test First Printed Circuit Board with Competitive Price

Name: 100% Test First Printed Circuit Board with Competitive Price
Brand: all-electronics-online.com
SKU: 811580515
Availability: InStock
Rating: 4.9 (76 reviews)

Price:	US $ 0.29-0.45/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy Resin + Polyimide Resin
Flame Retardant Properties:	HB

Product Description

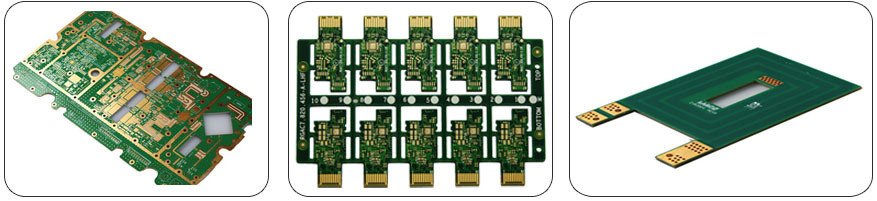

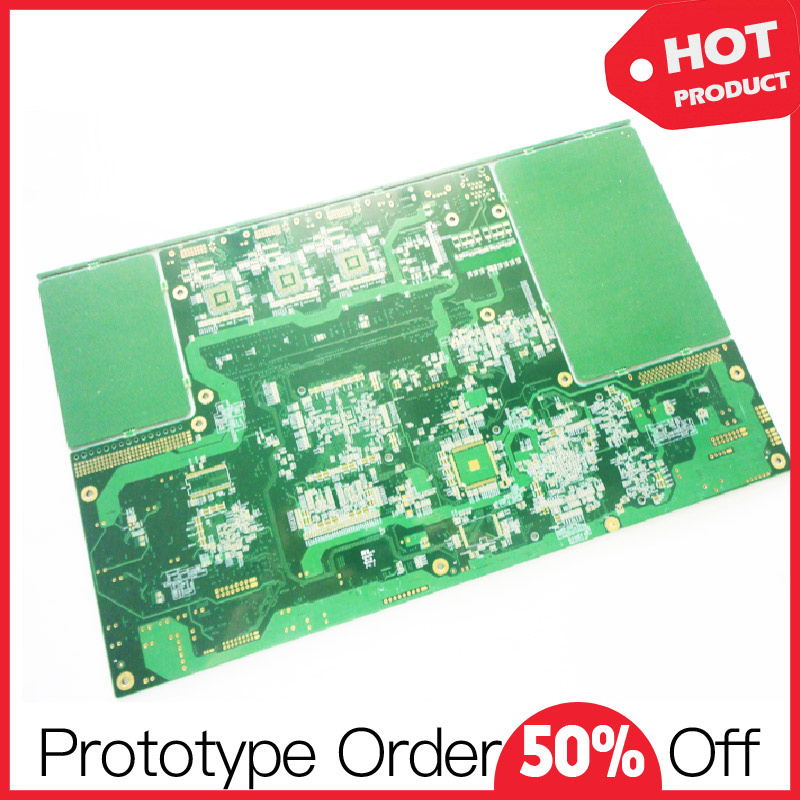

100% Test First Printed Circuit Board with Competitive Price

To be the first printed circuit board for you !

1.Company profile:
One-stop EMS service-----Your reliable double sided PCB and PCBA design assembly Supplier As an experienced PCB and PCBA manufacturer, we provide prototype for small volume and medium volume projects.We are able to guarantee complete services with comprehensive technical backup, offering a cost advantage and scheduled delivery.
2.Our Main Service including offering
Rigid Flex Blind Via Board 12 layers
Impedance Alumium PCB
PCB Assembly
PCB Manufacturing
Electronics ODM
Box Building

How is the manufacturing capabilities of Printed Circuit Board ? please checking the following table

Total Pad Size	Standard	Advanced
Capture Pad	Drill + 0.008	Drill + 0.006
Landing Pad	Drill + 0.008	Drill + 0.006
BC Mechanical Drill (Type III)	0.008	0.006
Laser Drill Size	0.004-0.010	0.0025
Material Thickness	0.0035	0.0025
Stacked Via	Yes	Yes
Type I Capabilities single & Double Deep	Yes	Yes
Type II Capabilities Buried Vias with Microvias	Yes	Yes
Type III Capabilities	Yes	Yes
Copper Filled Microvia	Yes	Yes
Smallest Copper Filled Microvia	0.004	0.0025
Copper Filled Microvia Aspect Ratio	0.75:1	1:01
Smallest Laser Microvia Hole Size	0.004	0.0025
Laser Via Aspect Ratio (Depth:Diameter)	0.75:1	c

How to make the first printed circuit board ? the manufacturing process is as follows:

Combining years of experience with the latest in high-tech manufacturing efficiencies allow our pricing to be among the most competitive. Our boards are manufactured based on IPC guidelines and comply with ISO-9001-2008, UL, and RoHS standards.

Our customers are widely distributed in mainland China, Taiwan, the United States, Japan, Singapore, Korea, Russia, Germany, Switzerland and other parts of the word.

Trade Terms:
1. Payment: T/T in advance (Western Union , payple is welcomed)
2. Production lead time 100PCS: 5-7days, 500~1000PCS: 7-10days, above 1000PCS 15-20days.
3. Sample can be delivered in 3days
4. Shipping freight are quoted under your requests
5. Shipping port: Guangzhou, Huangpu,China
6. Discounts are offered based on order quantities
7. MOQ: 1PCS

If you have any demand of our special first printed circuit board, please feel free to contact us any time, NOD is ready to service you !

As a service-leading PCB manufacturing and PCB assembly (PCBA) partner, NOD Electronics strives to support international small-medium business with 10+ years engineering experience in Electronic Manufacturing Services (EMS). Our headquarter is located in Guangzhou, China. We have 10, 000 square meters plant, 287 employees and 42 engineers, monthly capabilities of 15, 000 square meters PCB design & fabrication and 80 million spot SMT. We were approved by ISO9001-2008, TS16949, UL, CE, RoHS.

We strive to be your rightest partner in electronic manufacturing serivce with a commitment from creative team members. Do you agree that every electronic product has its soul, bearing the designer's product concept, just like the Apples and Steve Jobs? Electronic product is a bridge between the customer and designer rather than a cold and ruthless object. Although they have no verbal communication, they have soul connection in between.

So, we perform and create a bridge, which turns your concept or design into a product and present in front of the customers by offering reliable manufacturing solutions and engineering support, including New Product Introduction (NPI), Printed Circuit Board (PCB) design, Printed Circuit Board Assembly (PCBA), Casing (plastic & mental) solutions.
