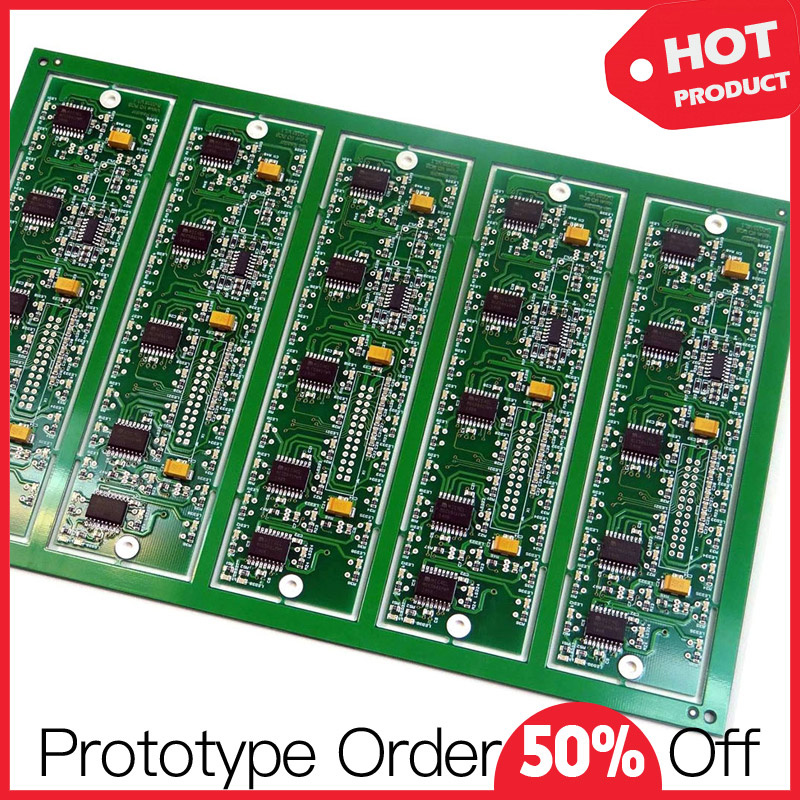

100% Test Fr4 HASL Lead Free PCB Manufacturing

Name: 100% Test Fr4 HASL Lead Free PCB Manufacturing
Brand: all-electronics-online.com
SKU: 809429685
Availability: InStock
Rating: 4.5 (37 reviews)

Price:	US $ 0.175-0.26/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	NOD006
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	HB

Product Description

Impressive PCB Manufacturing with Assembly Services

Our aim is to provide the best value in the industry based on product quality, turn-around time and low prices. Our experienced engineers and helpful support staff will ensure that you get PCBs made exactly to your specifications, and offer you the most effective and optimized solutions.

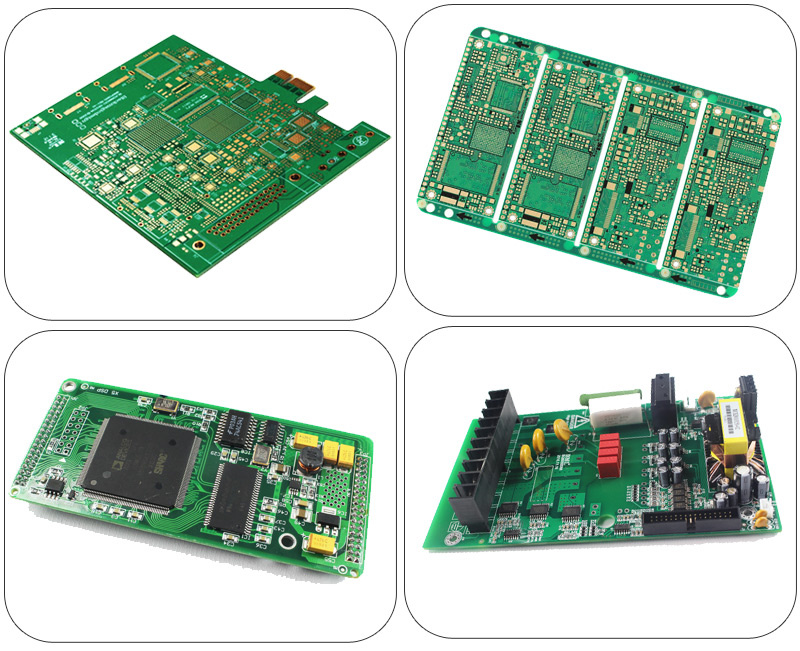

PCB Manufacturing Capabilities

· Smallest drill size of 0.1mm (~4mil)

· 1 to 36 layers

· Rigid (standard FR4), Flex, Aluminum backed.

· FR4*, Rogers, Duriod, Polyimide, CEM1,3, etc.

· PCB Fabrication thickness starting at 8mil for Rigid and 0.2mm for Flex.

· 0.4 ounce to 4 ounce copper

· Minimum Trace / Space of 3mil.

· Finishes include; immersion Gold, Silver, Tin, Lead free HASL and OSP.

· Board finish colors; Green, Blue, Black, Yellow, Red, White.

About Us

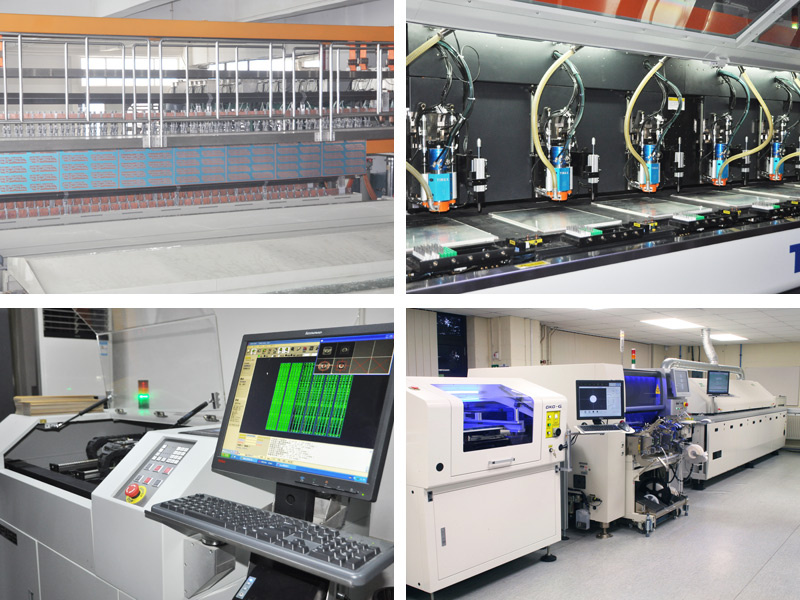

As a service-leading PCB manufacturing and PCB assembly (PCBA) partner, NOD Electronics strives to support international small-medium business with 10+ years engineering experience in Electronic Manufacturing Services (EMS). Our headquarter is located in Guangzhou, China. We have 10,000 square meters plant, 287 employees and 42 engineers, monthly capabilities of 15,000 square meters PCB design & fabrication and 80 million spot SMT. We were approved by ISO9001-2008, TS16949, UL, CE, RoHS.

We are offering PCB manufacturing and assembly services to following big customers all over the world.

Except PCB manufacturing, we can also handle the one-stop PCB assembly services with following manufacturing capabilities and engineering process for you.

Turn Times	Selected Volume	Selected Solder Types
Same day through four weeks turns	No minimum order quantity	Leaded
Scheduled deliveries	Engineering prototypes	Lead-free/RoHS compliant
	Low cost first article builds	No-clean process available
Parts Procurement	Selected Stencils	Selected Ball Grid Arrays (BGA)
Turnkey	Laser cut stainless steel	As small as .5mm pitch
Kitted/Consigned	Nano-coating available	All BGA placements are x-ray inspected
Partial Turnkey
Assembly Types	Selected Component Types	Selected Other Capabilities
Surface Mount (SMT)	As small as 0402 package	Pitch components as small as 15 mil
Thru-hole	As small as 0201 with design review	Repair/Rework services
Mixed Technology (SMT/Thru-hole)		Mechanical Assembly
Single or double sided placement		Box Build/Electromechanical Assembly
		Sub-assemblies

Your PCB manufacturing and assembly will be perfectly handled by our advanced production lines and responsive team!

As a service-leading PCB manufacturing and PCB assembly (PCBA) partner, NOD Electronics strives to support international small-medium business with 10+ years engineering experience in Electronic Manufacturing Services (EMS). Our headquarter is located in Guangzhou, China. We have 10, 000 square meters plant, 287 employees and 42 engineers, monthly capabilities of 15, 000 square meters PCB design & fabrication and 80 million spot SMT. We were approved by ISO9001-2008, TS16949, UL, CE, RoHS.

We strive to be your rightest partner in electronic manufacturing serivce with a commitment from creative team members. Do you agree that every electronic product has its soul, bearing the designer's product concept, just like the Apples and Steve Jobs? Electronic product is a bridge between the customer and designer rather than a cold and ruthless object. Although they have no verbal communication, they have soul connection in between.

So, we perform and create a bridge, which turns your concept or design into a product and present in front of the customers by offering reliable manufacturing solutions and engineering support, including New Product Introduction (NPI), Printed Circuit Board (PCB) design, Printed Circuit Board Assembly (PCBA), Casing (plastic & mental) solutions.
