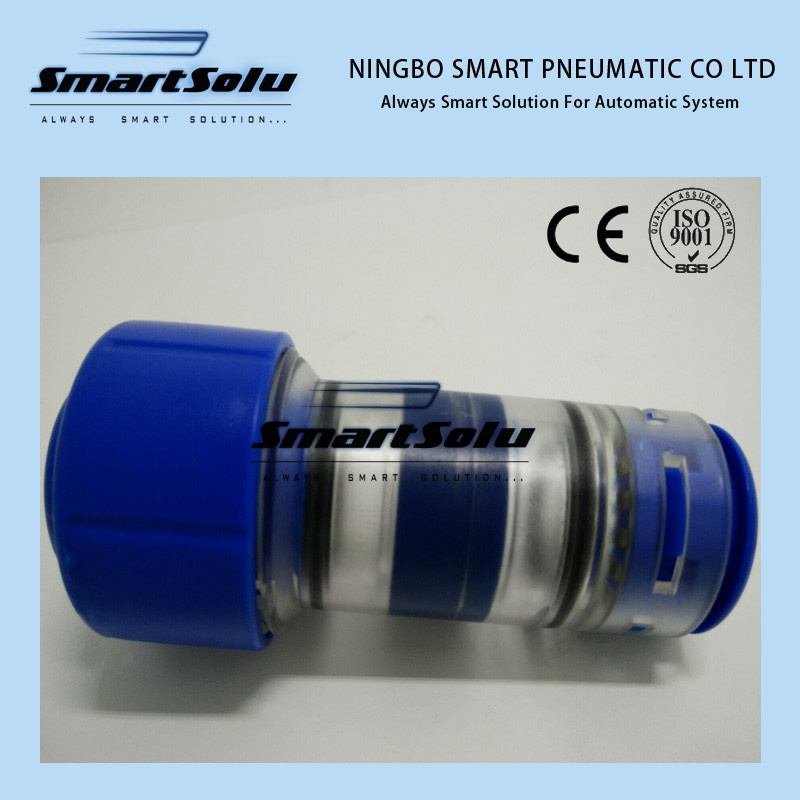

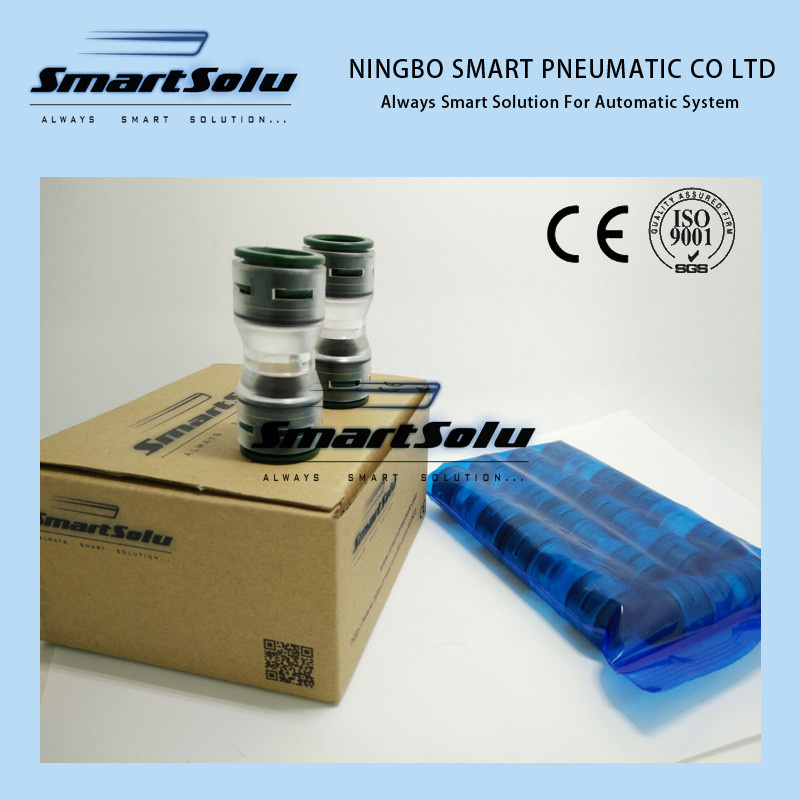

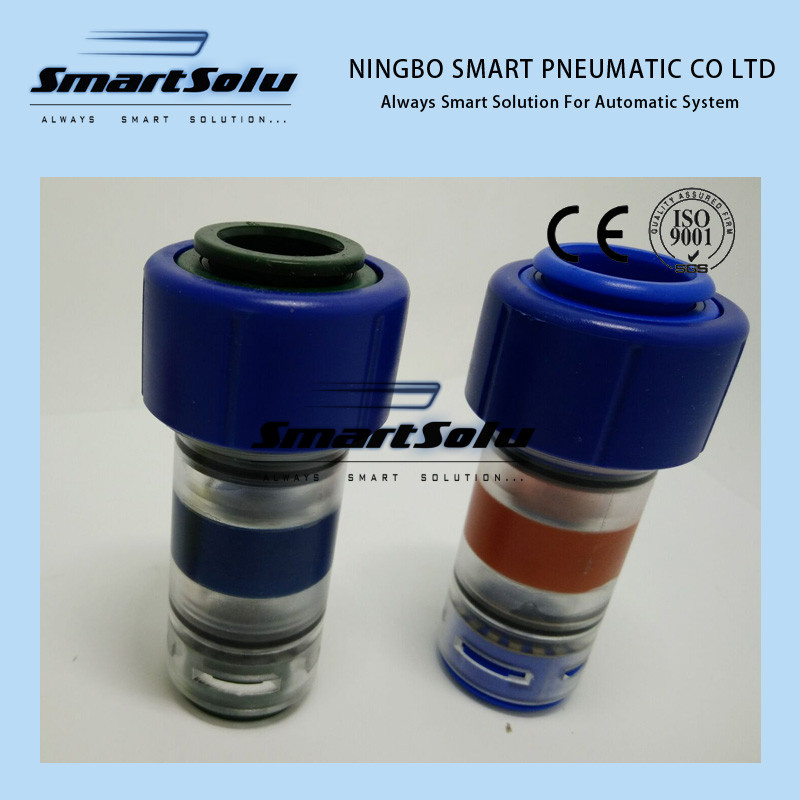

100% Tested Micro Duct Gasblock Connector
| Price: |
US $ 0.40-0.6/Piece |
| Trade Terms: |
FOB |
| Min Order: |
200/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
BLS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sizes: |
3mm to 22mm |
| Gasblock: |
Waterblock |
| Color: |
Red, Blue, Yellow |
| Transmission Medium: |
Single-Mode |
| Structure: |
SC |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
APC |
Product Description
- Provides a watertight and gastight seal
- The internal seal can be open to blow cable through and closed after installation to provide a complete seal
- Tube to tube connection
- Caters for various cable diameters
About MicroDuct Accessories
Microduct Couplers and End Stops are of a quick connect design, with pull ring release and a clear barrel for viewing. The clear barrel allows for visual inspection to determine if the duct ends are properly seated in the coupler during installation, or if the cable has passed through the coupler during the installation phase.
Microduct Couplers are available two configurations; straight and transition to allow the connection of two microducts with different outer diameters. Microcouplers are rated at 175 psi with a safety factor of 4:1. Sizes and specification are listed below:
Working Pressure/Temperatures:
TrueSeal™ Fiber Optic Fitting Working Pressure (PSI)
Fitting Size.....Polycarbonate
5mm.............Vacuum to 175
7mm.............Vacuum to 175
8mm.............Vacuum to 17510 mm..............Vacuum to 17512 mm..............Vacuum to 175
12.7mm.............Vacuum to 175
14mm.............Vacuum to 175
16mm.............Vacuum to 17518mm
............Vacuum to 17520mm
............Vacuum to 17522mm
............Vacuum to 175Temp. Range.....-30°F (-34°C) to +180°F (85°C)Actual working pressures will be lower at elevated temperatures
Burst pressures are four times the fittings room temperature working pressure (four time safety factor)
Vacuum rating to 28 inches of Hg at room temperature
Microduct Split Couplers are used when it is necessary to access cables at mid-span for placing slack coils. Available to fit 12mm and 12.7mm O.D. microducts.
Microduct Cutters are available in two styles:
Standard Straight Cutters for clean cuts prior to coupling
Ring Cutters are used when necessary to safely access cable in the duct
Microduct End Caps are threaded into microducts internally for pressurizing microducts prior to installing. Microduct End Caps keep microducts from imploding and add stiffness during the installation process. Available to fit 10mm and 12 and 12.7mm microducts.Why choose us? (1) Quality, we only produce top-level quality products, we promise that all of our product's raw material are first class, and good quality system controls, so our goods' quality is very good. (2) Price, our policy is that "Win-to-Win". That means in view of our long-standing business relationships, we only take small profit to help you for the marketing. (3) Delivery, we alway have some products in stock, so we can complete the delivery within the time stipulated before. (4) No MOQ, I think it is an attractive condition to some of you who have no big demands for each items temporarily.Microduct Coupler Removal Tool makes removing microcouplers easy saving wear and tear on hands and fingers.
Digital Calipers used for measuring the outer diameters of cables and ducts to insure proper sizing and compatibility with Jetting inserts and couplers. Measurements ASME and Metric.
Ningbo Hi-Tech Smart Pneumatic Co., Ltd. is specialized in manufacturing all kinds of hydro pneumatic components, aluminum parts and plastic parts. Our main products are including pneumatic cylinder, (air cylinder), solenoid valve, air filter, air regulator, air lubricator, pneumatic fitting, hydraulic fitting, tubes, muffler (silencer) etc.
SMART PNEUMATIC take the lead in passing ISO9001 quality system certification and UKAS system certification in this industry and equip with a complete set equipment (CNC machine, data control lathe, and all kinds of testing machines) and checkout system. Under the joint effort of all our members, SMART PNEUMATIC has already established a strong foundation today.
SMART PNEUMATICS' Sprit is to give you the best quality, the competitive price, the quick delivery, the perfect service. Our goal to customers is "Always Smart Solution for your Automatic System. "
SMART PNEUMATIC believes our profession and efficiency will make your international business easier and quicker.
SMART PNEUMATIC hopes to work together with you, developing in parallel!
