1000A/1A High Accuracy Class AC Clamp on Cts

1000A/1A High Accuracy Class AC Clamp on Cts
Price: US $ 60/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 3/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Prod Model: Q50A
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Types: Clamp on Cts
Features: Low Phase Shift for Power Measurement
Measurement Range: 1mA to 1000A AC
Nominal Input Current: 1000A
Output Signal: 1A AC at Nominal Input Current
Accuracy: 0.1%, 0.2%
Max. Jaw Opening: 50mm
Dimensions: 94mm X 210mm X 22mm
Weight: 600g
Output Model: Lead Output
Application: Lighting
Type: Current Transformer
Phase: Single

Product Description

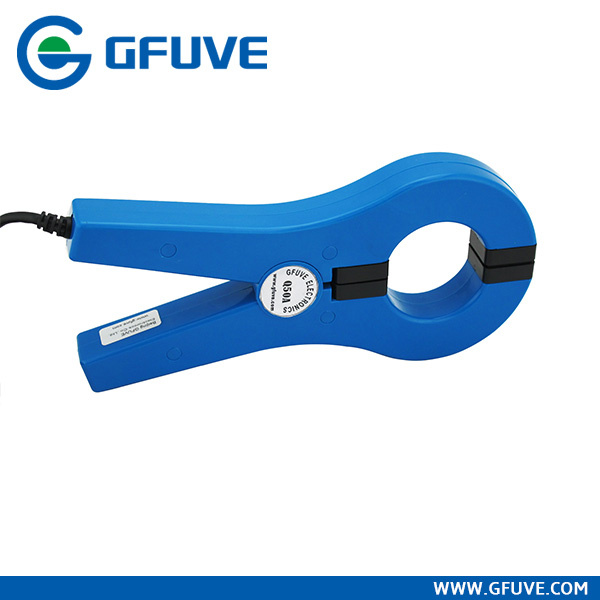

Q50A 1000A/1A High Accuracy Class ac Clamp on Cts
The model Q50A 1000A/1A High Accuracy Class ac Clamp on Cts are best-in-class devices for use with power meters, power analyzers and high performance oscilloscopes.
Applications
Power quality measuring
Large industrial loads
HVAC
Measuring around cable bundles
Power load monitoring
Waveform analysis
Features
Measurement range of 1mA to 1000A AC
Small, compact size
Improved ergonomic design and easy operation
Conforms to EN 61010, 600V CAT III
Low phase shift for power measurement
Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters
With load capacity≤ 4, When 1A output, it is 0.1; When 5A output, it is 2.5VA.
Output model: Lead output(2.5m)
Ratio1000: 1 or 2000:1 , customized
Nominal input current1000 A
Max. Cont. Input current1200A
Accuracy0.1 %,0.2%,0.5%
Over voltage categoryCAT III 600 V
Output signal1A AC at nominal input current
Frequency range40 Hz....2000 Hz
Dielectric strength3KV 50Hz/60Hz  at 1 minute
Temperature range-20 °C...+55 °C
Output2.5 meter cable with D01 connector
Max. voltage not insulated conductors600 V
Max. jaw opening50 mm
StandardEN 61010-1
Dimensions94mm x 210mm x 22mm
Weight600 g
