| Prod Model: |
P50 |
| Class: |
0.1 |
| Types: |
Clamp on Cts |
| Ratio: |
1000:1 |
| Weight: |
550g |
| Cable Lenght: |
2.5m |
| Burden: |
1va |
| Application: |
Lighting |
| Type: |
Current Transformer |
| Phase: |
Single |
Product Description

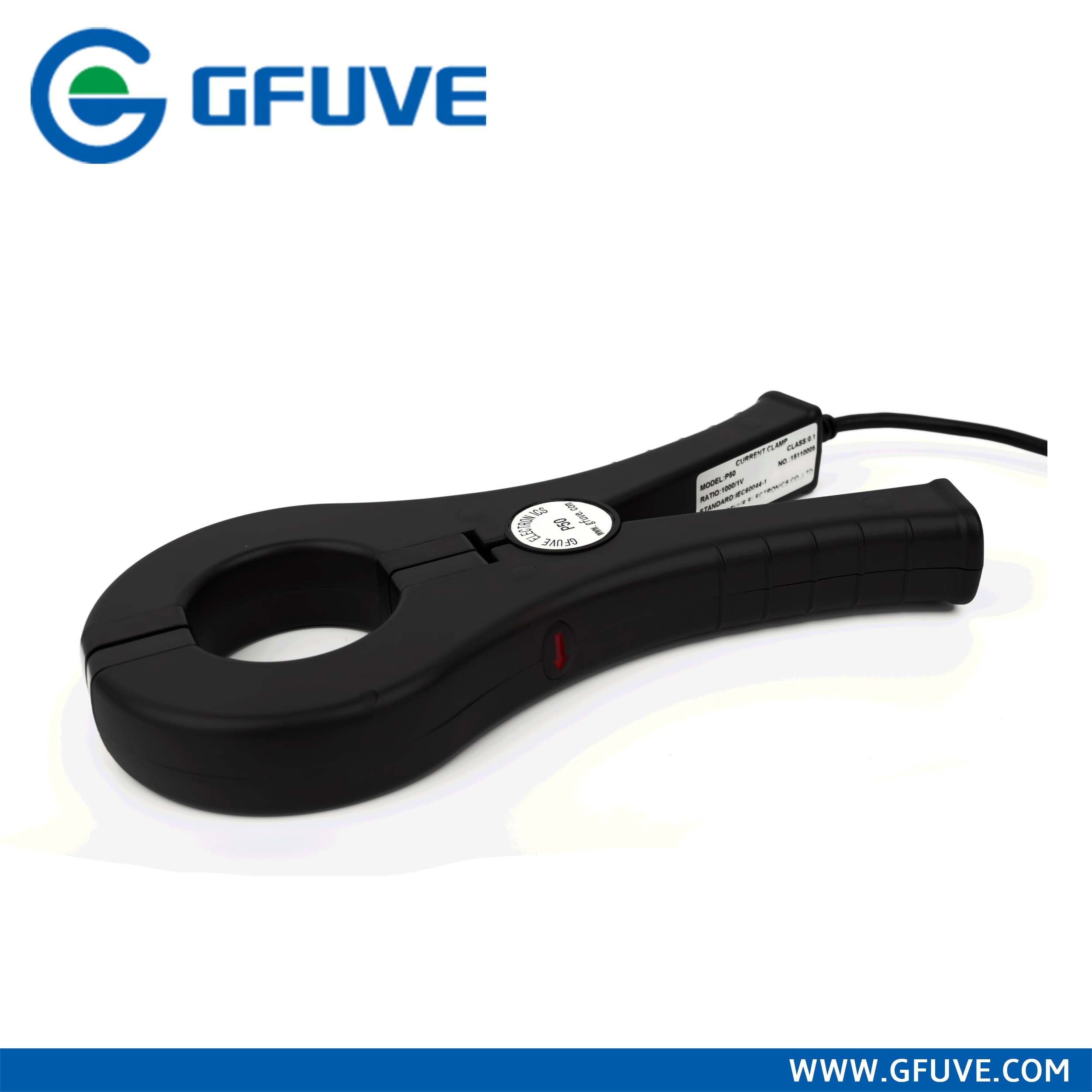

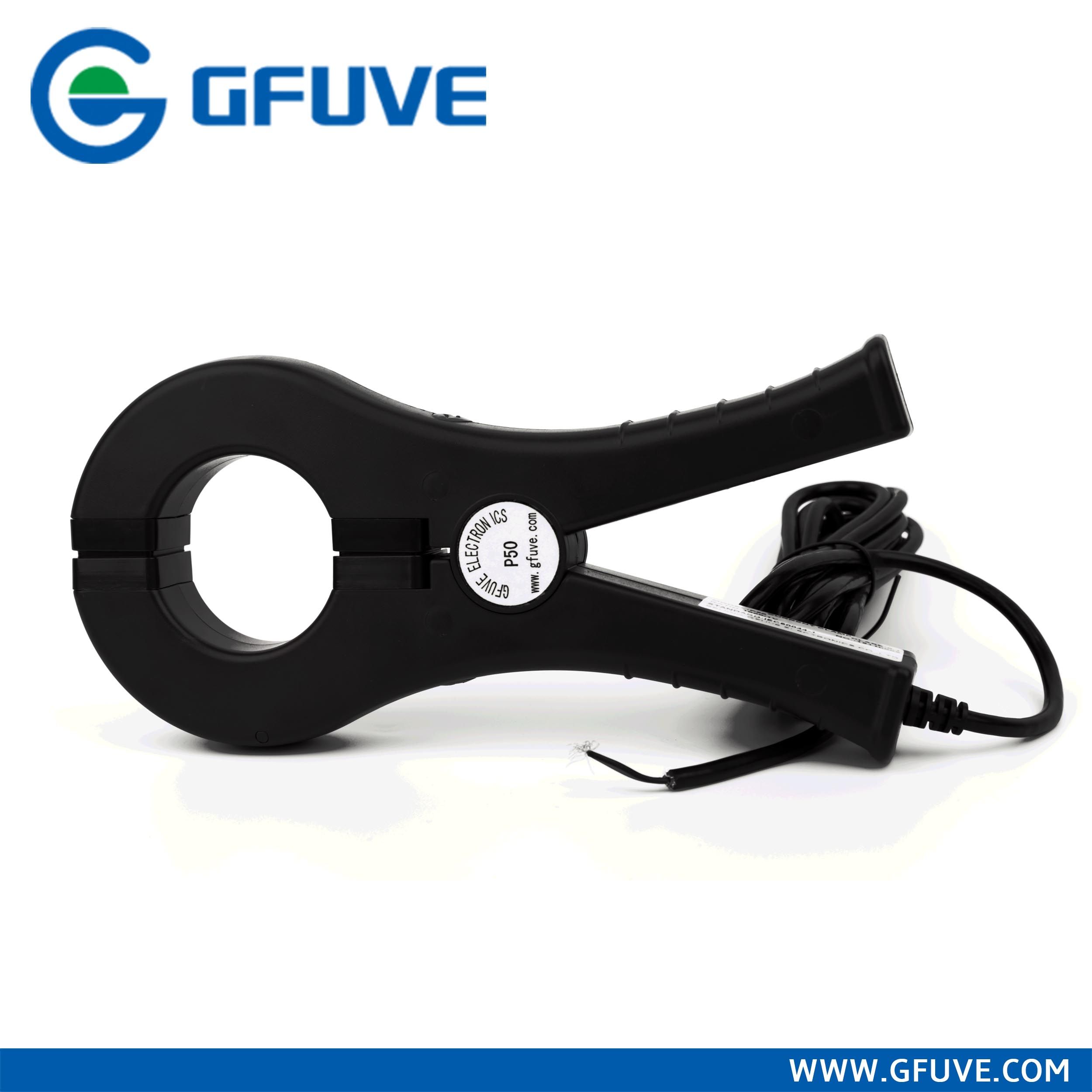

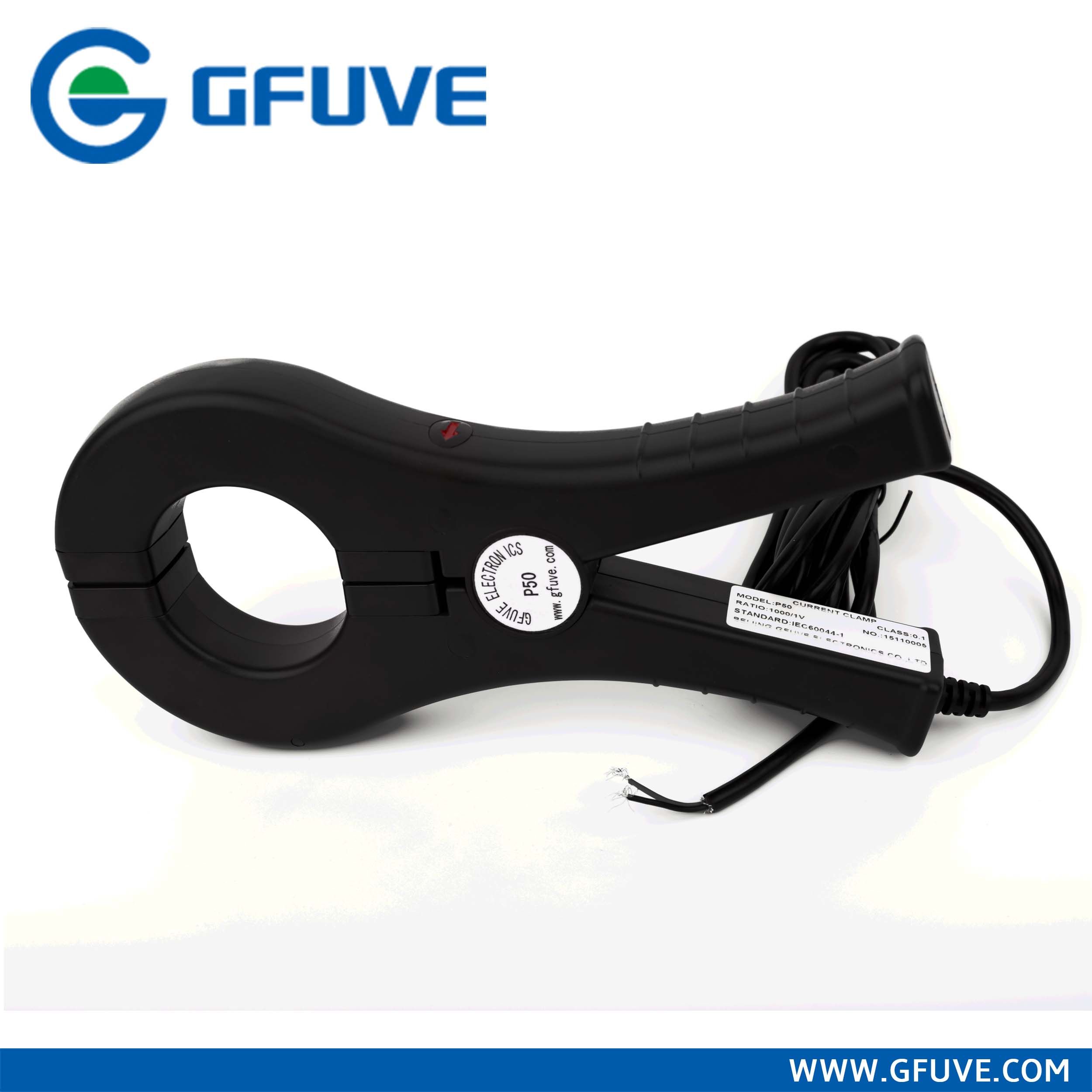

P50 1000A CLASS 0.1 GREY BLUE HIGH PERFORMANCE SPLIT CORE AC CURRENT CLAMP ON CTS
The round jaw design on the P50 Series AC clamp on cts along with the high content nickel metal core makes them well suited for power quality applications where high accuracy and low phase shift along with wide frequency are important. Measurement range is 1mA to 1200A. The P50 is a general purpose 1000A AC clamp on cts
designed for use with DMMs, loggers and other instruments that have a current input. It has a 1000:1 ratio and output of 1mA per amp or 1mV per amp measured in the jaw. The P50 clamp on cts
has an integral 2.5m lead terminated. The rounded jaw design on this probe makes it well-suited for power applications where high accuracy 0.1% and low phase shift and wide frequency response are important.APPLICATIONS
- Power quality measuring
- Large industrial loads
- Measuring around cable bundles
- Power load monitoring
- Waveform analysis
- Energy meter calibrator
FEATURES
- Measurement range of 1mA to 1200A AC
- Large jaw opening accommodates conductors up to two 500kcmil
- Improved ergonomic design and easy operation
- High content nickel metal core
- Conforms to EN 61010, 600V CAT III
- Low phase shift for power measurement
- Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters
- UL, CE mark
PARAMETERS
| Electrical parameters |
| Ratio | 1000: 1 or 2000:1 (customized) |
| Accuracy class | 0.1%, 0.2%, 0.5% |
| Primary current | 0 - 1000A AC |
| Secondary output | 1mV/A AC, 5mV/A or (customized) |
| Max. Cont. Input current | 1200A |
| Over voltage category | CAT III 600V |
| Output signal | 333mV, 500mV,1V,2V,5V AC at nominal input current |
| Accuracy (1000A Range) | |
| 0-10A | ≤0.5% |
| 10-100 | ≤0.2% |
| 10-1200A | ≤0.1% |
| Phase Shift(1000A Range) | |
| 0-10A | ≤0.5° |
| 10-100 | ≤0.2° |
| 100-1200A | ≤0.1° |
| Electrical parameters - continued | |
| Frequency range | 40Hz-2000Hz |
| Dielectric strength | 3KV 50Hz/60Hz at 1 minute |
| Temperature range | -20°C to +55°C |
| Output | 2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors | 600 V |
| Standard | EN 61010-1, EN 61010-2-032, IEC60044-1 |
| Installation | clamp type |
| Output mode | lead output(2.5m) |
| Mechanical parameters |
| Dimensions (L x W x H) (mm) | 102.9 x 219.6 x 28 |
| Weight (g) | 550 |
| Holding wire diameter (mm) | φ50 |
| Max. jaw opening (mm) | 50 |
| Color | Gray or Blue |
| Material | PC+ABS+Polycarbonate, UL94 V0 |
| Model | Rate Current | Max Current | Secondary Current | Coil Ratio | Burden Resistance | Accuracy |
| P50-200 | 200A | 240A | 5A | 40:1 | 2.5VA | 0.5% |
| P50-300 | 300A | 360A | 5A | 60:1 | 2.5VA | 0.5% |
| P50-400 | 400A | 480A | 5A | 80:1 | 2.5VA | 0.5% |
| P50-500 | 500A | 600A | 5A | 100:1 | 2.5VA | 0.5% |
| P50-600 | 600A | 720A | 5A | 120:1 | 2.5VA | 0.5% |
| P50-800 | 800A | 960A | 5A | 160:1 | 2.5VA | 0.5% |
| P50-1000 | 1000A | 1200A | 5A | 200:1 | 2.5VA | 0.5% |
| P501-100 | 100A | 120A | 1A | 100:1 | customized | 0.5% |
| P501-200 | 200A | 240A | 1A | 200:1 | customized | 0.5% |
| P501-300 | 300A | 360A | 1A | 300:1 | customized | 0.2% |
| P501-400 | 400A | 480A | 1A | 400:1 | customized | 0.2% |
| P501-500 | 500A | 600A | 1A | 500:1 | customized | 0.2% |
| P501-600 | 600A | 720A | 1A | 600:1 | customized | 0.2% |
| P501-800 | 800A | 960A | 1A | 800:1 | customized | 0.2% |
| P501-1000 | 1000A | 1200A | 1A | 1000:1 | customized | 0.1% |
| P502-500 | 500A | 600A | 500mA | 1000:1 | customized | 0.1% |
| P502-1000 | 1000A | 1200A | 500mA | 2000:1 | customized | 0.1% |
| P503-800 | 800A | 960A | 400mA | 2000:1 | customized | 0.1% |
| P503-1000 | 1000A | 1200A | 400mA | 2500:1 | customized | 0.1% |
| P504-500 | 500A | 600A | 250mA | 2000:1 | customized | 0.1% |
| P504-1000 | 1000A | 1200A | 250mA | 4000:1 | customized | 0.1% |
| Model | Rate Current | Max Current | Secondary Voltage | Coil Ratio | Burden Resistance | Accuracy |
| P50V1-1000 | 1000A | 1200A | 1V | 1000:1 | customized | 0.1% |
| P50V2-1000 | 1000A | 1200A | 2V | 1000:1 | customized | 0.1% |
| P50V4-1000 | 1000A | 1200A | 4V | 1000:1 | customized | 0.1% |
| P50V5-1000 | 1000A | 1200A | 5V | 1000:1 | customized | 0.1% |
| P50V10-1000 | 1000A | 1200A | 10V | 1000:1 | customized | 0.1% |
| P50V1-500 | 500A | 600A | 1V | 1000:1 | customized | 0.2% |
| P50V2-500 | 500A | 600A | 2V | 1000:1 | customized | 0.2% |
| P50V4-500 | 500A | 600A | 4V | 1000:1 | customized | 0.2% |
| P50V5-500 | 500A | 600A | 5V | 1000:1 | customized | 0.2% |
| P50V10-500 | 500A | 600A | 10V | 1000:1 | customized | 0.2% |
