Guangzhou Kingrise Enterprises Co., Ltd. >> 1000A High Precision Single Phase Isolation Current Booster

1000A High Precision Single Phase Isolation Current Booster

1000A High Precision Single Phase Isolation Current Booster
Price: US $ 400-700/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: KE6331H
Accuracy: 0.02%
Primary Current Range: 10mA-100A
Output Current: 100mA - 1000A
Ratio: 1:10
Weight: 13kg
Application: Instrument
Phase: Single
Usage: Instrument
Brand: KRE

Product Description

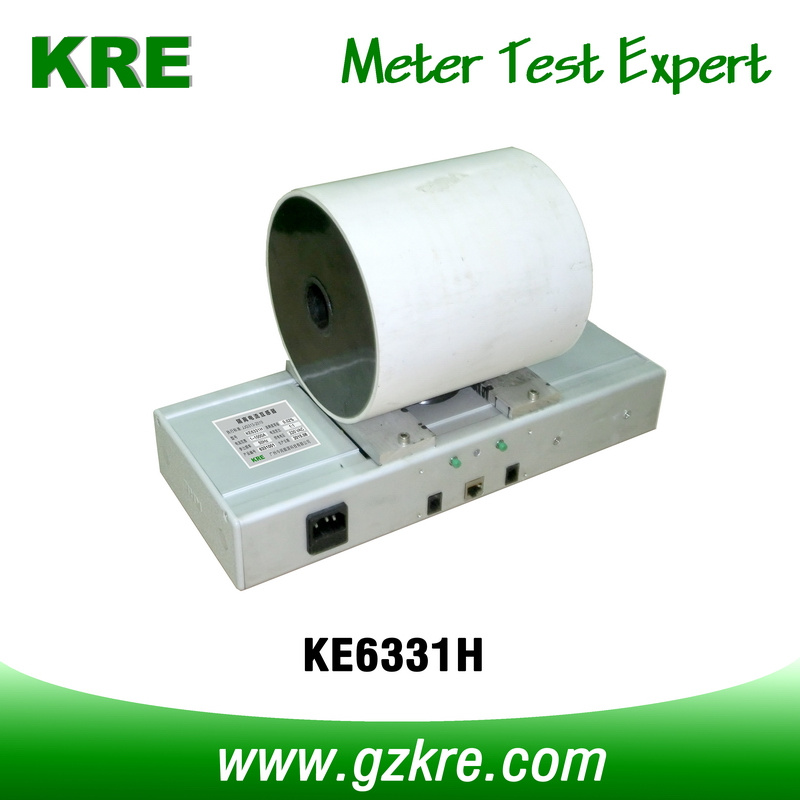

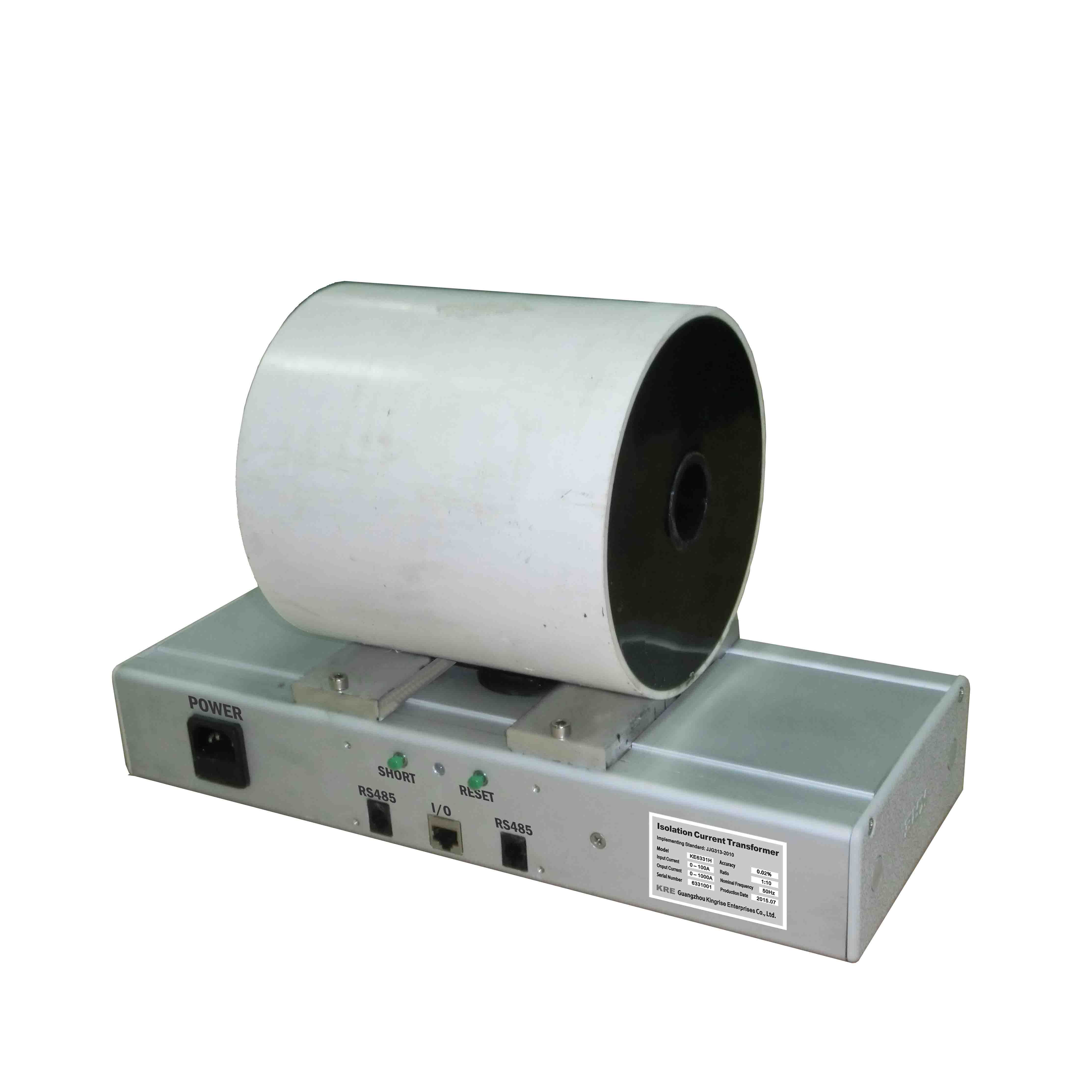

KE6331H Isolation Current Transformer is used on multi-position test benches for testing three-phase high current meter or clamp CT meter. Besides, as its ratio is 1:10, it can also be used as current booster.


Highlight


Main Specification

 KE6331H
Accuracy0.02
Phase number1
Nominal frequency50 Hz (45 … 55 Hz) or 60 Hz (54 … 66 Hz)
Primary current range10mA-100A
Ratio1:10
Secondary current range100mA -1000A
Ratio error(typical)±0.02%
Angle error(typical)±0.1min
Output powe(max.)600VA
Auxiliary power supplyAc185V- 265V / 45Hz - 65Hz

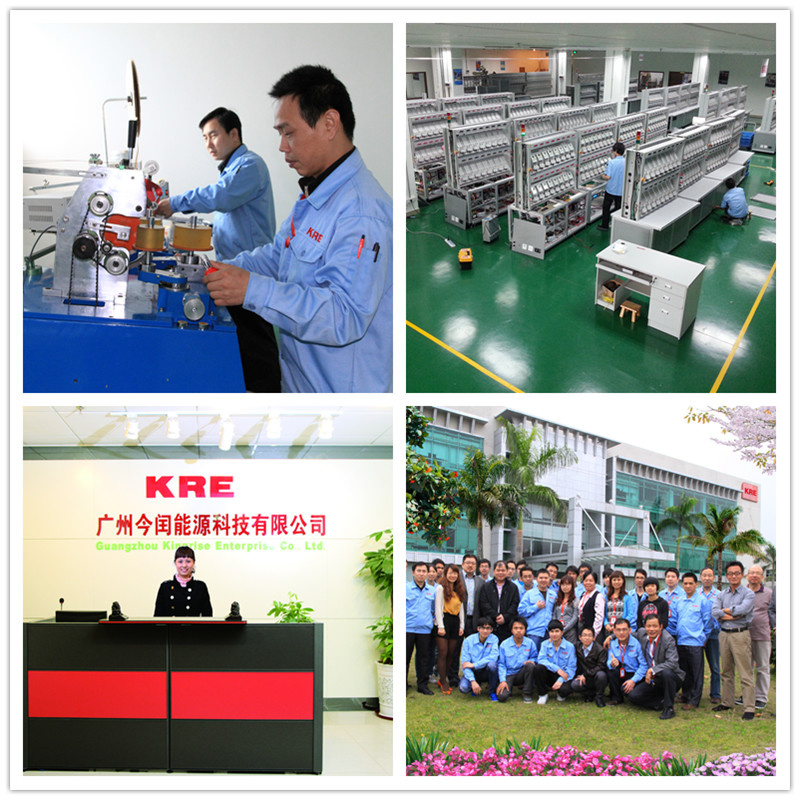

Company Show

Customers From All Over The World



Guangzhou Kingrise Enterprises Co., Ltd. is an ISO 9001: 2008 certified company which specialized in manufacturing, R&D and sales of energy meter test equipment, mainly including single/ three phase energy meter test bench, portable single/ three phase energy meter test system, single/ three phase stationary power source, single/ three phase reference standard meter and portable standard meter. It provides not only high quality energy meter test products but also professional meter test solutions. Even though it is a new company established in 2012, the core employees have more than 10 years' R&D and sales experience in meter testing industry. With rich experience in R&D, manufacturing, and service, its products have been sold to more than 40 countries and regions and its brand KRE are well known to the customers in the meter testing industrial line.

In the coming future, we will constantly to increase the investment on R&D, seize the chance of energy development, under the management philosophy of providing our customer with best products and service, to become a customer-trusted, employee-satisfied, and society-respected company. We will hold onto our faith and try our best to achieve this target.
