| Prod Model: |
CAT5EU305 |
| Applications: |
Cat5e Cable |
| Coductor Material: |
CCA/Copper |
| Conductor Size: |
28/26/24 |
| Length: |
1000FT |
| Color: |
Optional |
| Application: |
LAN Cable |
| Conductor Material: |
Copper |
| Cover Material: |
PVC |
| Type: |
Cat 5 |
| Certification: |
RoHS |
| Wire Core Material: |
CCA |
| Model: |
Cat5EU305 |
| Brand: |
Chinasky |
Product Description

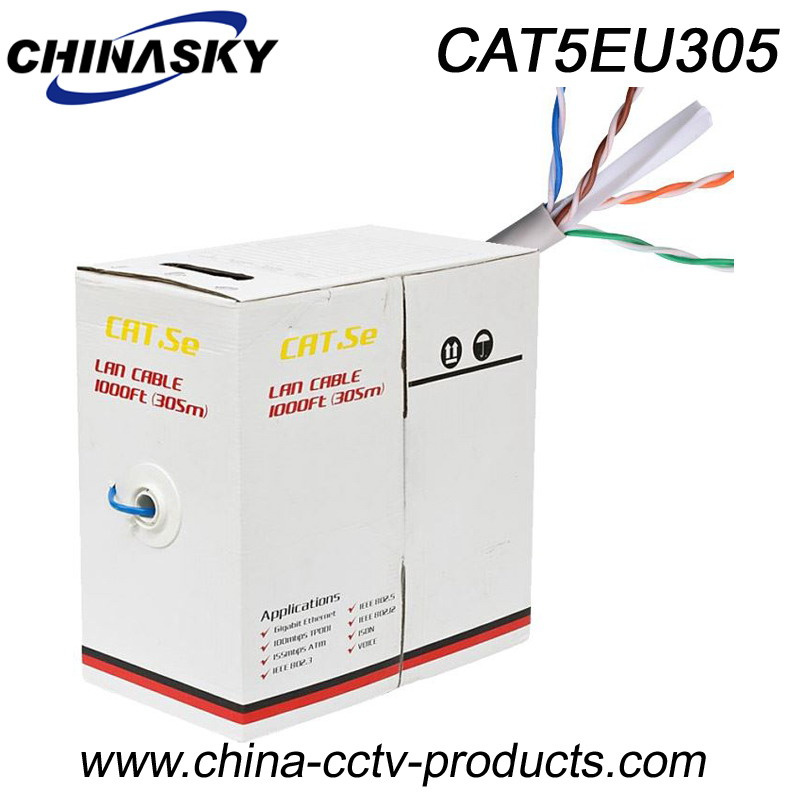

1000ft UTP Cat5e Security System Ethernet Cable (CAT5EU305)
Descriptions:
Cat5e Cable is currently the most commonly used in new installations. It's designed to greatly reduce crosstalk. It basically means the Cat5e is better at keeping signals on different circuits or channels from interfering with each other. A step above Cat5, it can handle 1000 Mbps speeds (gigabit Ethernet) at 100 MHz.
Connects a computer to a printer, router, switch box or other network component in a wired Local Area Network (LAN). Share server files, use a network printer, stream audio/video, link PC's through a network switch & more, at data transfer speeds up to 1000 Mbps (1 Gbps). This cable meets stricter TIA/EIA standards than normal Cat5 cables, & handles high-bandwidth needs. male RJ45 connectors are built with corrosion-resistant for high-quality accuracy. Noise, interference & crosstalk are reduced with its 4 unshielded twisted pairs (4 pairs UTP) of copper strands & tough, yet flexible PVC jacket. A heavy-duty, snag-less molding makes setup simple & 350 MHz bandwidth allows for high-speed distribution of data, voice & video.
Features:
UTP Cat5e, Ethernet Cable and LAN
Twisted pairs with bright color for easy recognition
Connect PC or laptop for network connectivity
Support network speed: 10 to 100Mbps automatically
Applications: transmission control system, internal wiring of electronic and electrical system
Color Code ( or Customized):
Pair 1: White/Blue-Blue/WhitePair 2: White/Orange-Orange/White
Pair 3: White/Green-Green/WhitePair 4: White/Brown-Brown/White
Specifications:
| Type | Lan Cable/Network Cable/UTP Cat6 Cable |
| Conductor Size | 28AWG,26AWG,24AWG |
| Conductor Material | CCA/Bare Cooper |
| Conductor Construction | 8*0.5mm |
| Jacket | PVC |
| Shield | Unshielded twisted pairs |
| Impedance | 100±15Ω at 1~250MHz |
| Operating Temperature | -40 °C - +70 °C |
| PVC Jacket Color | Optional |
| Packing | wooden spool, paper spool, plastic spool or customized |
