1000m Base-Fx Mini Fiber Media Converter Sc
| Price: |
US $ 58-60/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
Mini 10/100/1000base-Tx to 1000base-Fx Media Conve |
| Item Name: |
1000m Mini Fiber Media Converter Sc |
| Keywords: |
Fiber Media Converter/Mini Media Converter |
| Warranty: |
2 Years Hardware Warranty |
| Case Material: |
Iron |
| Case Color: |
Black or Grey |
| Net Weight: |
150g Approx. / Unit |
| Dimensions: |
60 (W) X 20 (H) X 90 (L) (mm) |
| Operating Temperature: |
0-50 |
| Storage Temperature: |
-20-85 |
| Data Rates: |
10/100/1000 Mbps |
| Usage: |
Laptop |
| Type: |
Wired |
| Support Network: |
Ethernet |
| Information Content: |
Data |
| Certification: |
GS |
| Condition: |
New |
Product Description

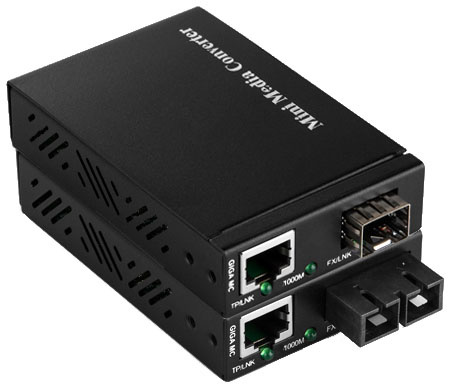

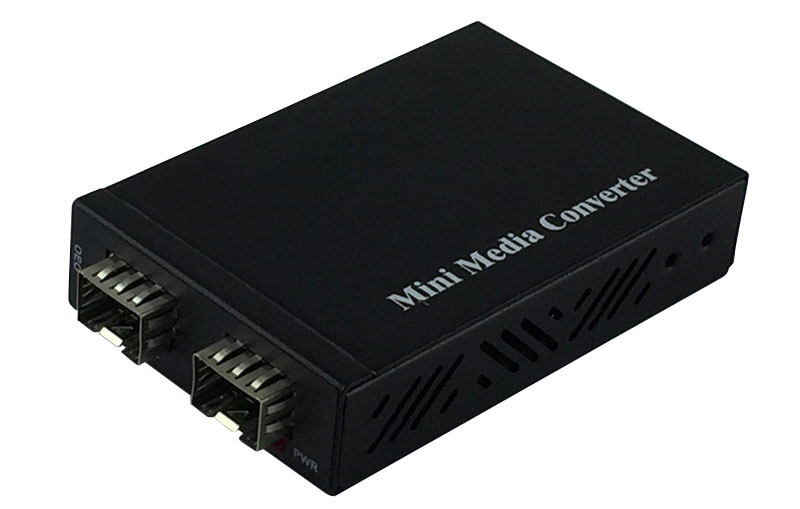

1000M Base-Fx Mini Fiber Media Converter ScMini Fiber media converters are applied for overcoming the distance limitations of traditional network cables. Fiber media converters connect different types of network cabling and help you extend networks between buildings and over longer distances.
1.Key Features:
10/100/1000Base-TX UTP to 1000Base-FX fiber media converter
Support IEEE802.3U, IEEE802.3z, 1000Base-TX/FX standards
Choice of SC, LC, BiDi or other connectors for Multi mode and single mode
DIP switch to set different configurations
Compact package size
The mini 10/100/1000Base-TX to 1000Base-FX (also can be forced to 100Base-FX) media converter is fully compliant with IEEE802.3U, IEEE802.3z 1000Base-TX/FX protocols. The converter can support auto MDI-MDIX function, flow control for full and half duplex operation, etc.
A DIP switch is placed at the bottom of the case. Depend on different configurations; the user can set the different operating mode (Force FX to 100M, pass through mode, etc).
2.Technical Specifications:
Data Rates:
10/100/1000 Mbps
(IEEE802.3U IEEE802.3z 1000Base-Tx)
1000 Mbps (1000Base-FX) or
100 Mbps (100Base-FX)
3.Input Power Requirements:| Input voltage | DC 5-12V |
| Power consume | 3 Watts maximum |
4.Environmental Conditions:| Operating temperature | 0ºC to 50ºC |
| Cooling | free air convection |
| Storage temperature | -20ºC to +85ºC |
| Operating Humidity | 90% max, non-condensing |
5.Media Converter Mechanical Specifications:| Case Material | Iron |
| Case Color | Black |
| Net Weight | 150g approx. / unit |
| Dimensions | 60 (W) x 20 (H) x 90 (L) (mm) |

6.Ordering Information:
DF200-203
supports optic connector / fiber type and distance. For more details, please refer to the list below or contact us.
Fiber transmission distance:
05: 500 m
10: 10 km
20: 20 km
40: 40 km
TX wave length:
3: 1310 nm
5: 1550 nm
8: 850 nm
Fiber interface:
S: Single-mode
M: Multi-mode
B: Single-mode bi-directional
SFP: SFP type (Not include SFP transceiver module)
Our products cover:
Patch Cords,Pigtail /MPO(MTP)/ Optical Fiber Cable/Optic Terminal Box / ODF,Patch Panels /Optic Splice Closure / SFP Module/ Media Converter / Video Optical transceiver /Connector /Adapter / AttenuatorCoupler / PLC Splitter / CWDM / DWDM / FWDM / OADM etc.
What we can offer you:
1.Excellent quality with good price.
2.Efficient and safe delivery.
3.OEM and custom-made services are available.
4.Life time after-sale services.
Any questions or requirements about mini Fiber media converter just feel free to contact me.
