| Prod Model: |
YET412PC |
| Decode: |
Universal, Fixed Code, Learning Code, Rolling Code |
| Use For: |
Liftmaster, Nice Flo, Hormann,Faac, Sommer, Clemsa |
| Memory Capacity: |
200, 400, 1000 Codes |
| Frequency: |
315,433,868 MHz |
| Product Name: |
12 Multi Channel Universal Receiver Switch |
| Channel: |
12 |
| Application: |
Gate Barrier Security Alarm Home |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Material: |
Plastic |
| Voltage: |
12V 24V |
| Battery Type: |
12V 24V Power |
Product Description

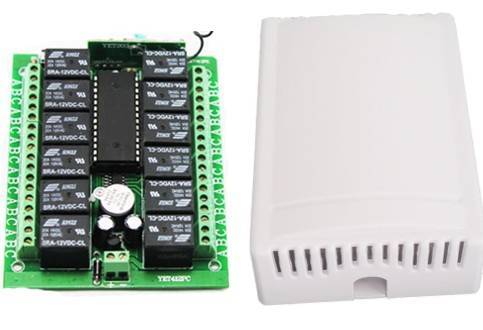

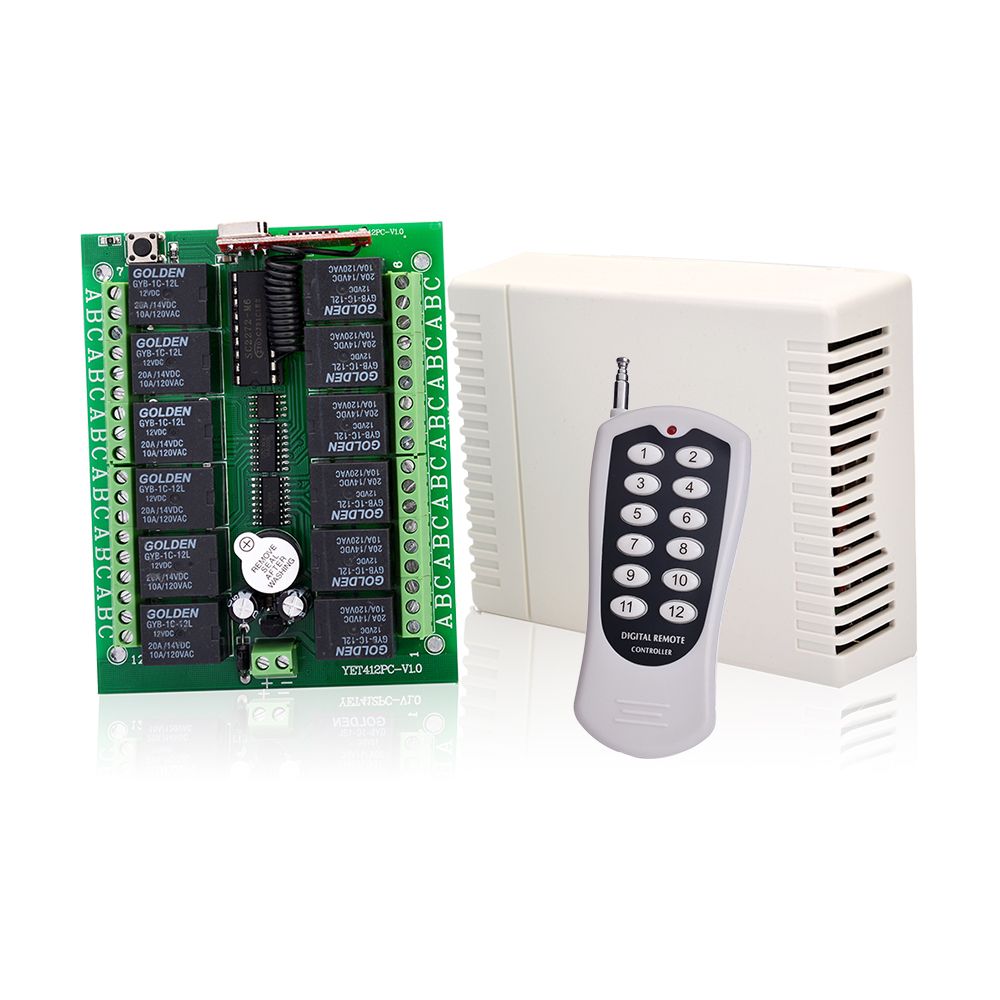

Product description1000M Control Distance RF 315/433 MHZ Digital Wireless Remote Control Power Switch YET412PC
1. Brief introductionOur factory design and produce the twelve channel wireless intellect receiving control what can provide switch signal to the twelve relays, so it can meet many requirements such as: control motor's corotation and reversal; the connection and lock of the switch and other special control programs. This kind of wireless intellect receiving control main apply to auto door, curtain, lifting appliance, gate way, lifter, industrial control and security field.This kind of wireless receiving control is high confidentiality, large memory space, stable characteristics, low power consume and very convenience, it is unnecessary adopt the traditional wire jumper or dip switch code but only receive and store the wireless signal from the remote control, and The lost learnt control can not work if you delete the memory message of the receiving control, however, it should learning again by the owner if want to obtain the right of use.2. The way of outputA. Signal point start -- press the first button on the transmitter to learnB. Signal interlock-- press the second button on the transmitter to learnC. Signal self-locking -- press the fourth button on the transmitter to learn3. Learning way and steps1. Press learning key of receiver and buzzer tweet, indicate enter into the status of learning 2. Press the corresponding button of the transmitter to learn corresponding output way, indicate learning success as the buzzer tweet 'de de'. Receiver automatically exit learning state if you do nothing in 32 seconds.4. Delete memory messageKeep pressing the learning key of the receiver, the buzzer keep tweeting about 7 seconds then stop, indicate success to delete the memory message.5. Main Technique Data| Working voltage | DC12V/ 24V (optional) |
| Static working current | ≤7mA |
| Working temperature | -40ºC - +80ºC |
| Receiving sensitive | ≥-105dBm |
| Working frequency | 315MHz,433MHz (optional) |
| Relay capacity | 10A 250VAC or 10A 30VDC |
| Receive the type of encoding | Learning code, Fixed code, Rolling/Hoping code |
| Maximum storage for transmitter | 3pcs of learning or fixed code |
| Size | 100mm*80mm*27.5mm |

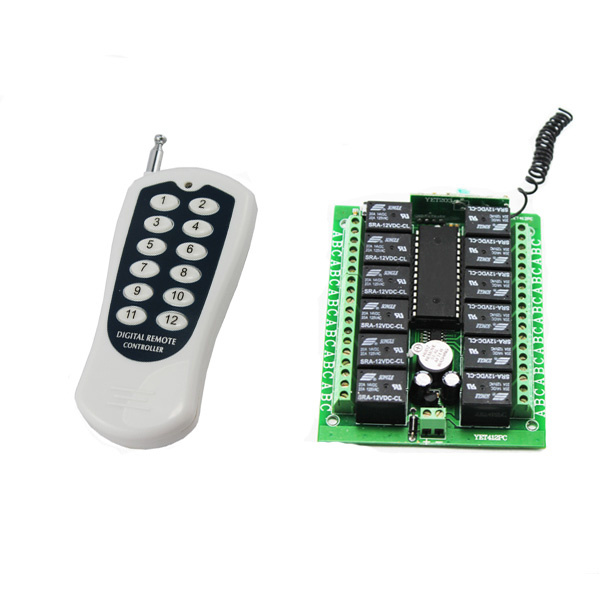

Transmitter Receiver kit

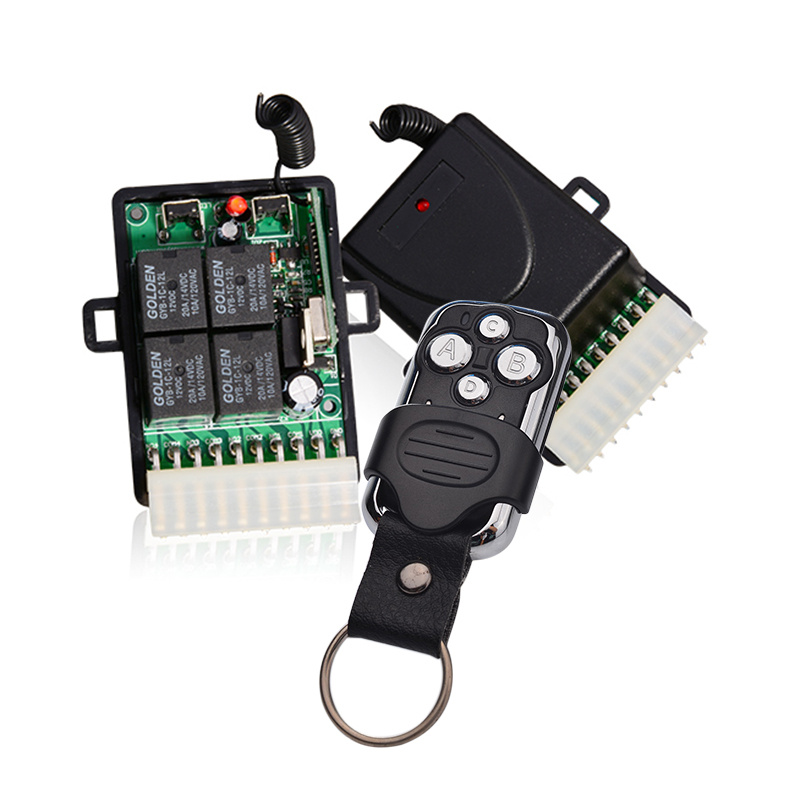

Related 4 channel receiver transmitter kit
Spec.| Model no. | 404pc |
| working frequency | 315,433,868mhz |
| Power | 12V , 24V,220V |
| channel | 4 channel |
Related Products

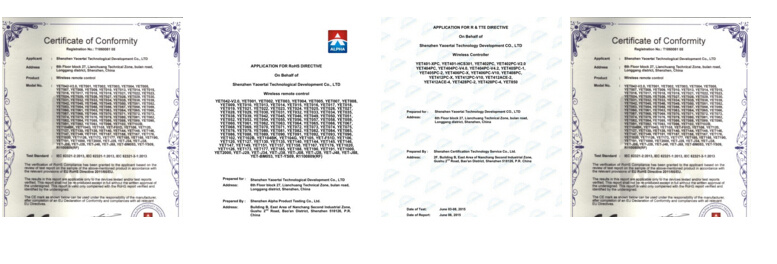

Certifications CE & Rohs
Our Company Established in 2005, Shenzhen Yaoertai Technology Development Co., Ltd. specializes in designing, developing, manufacturing and marketing of such RF products as wireless receivers and transmitter modules, wireless remote controls, car alarm systems, home alarm systems and related accessories.
Our product have won CE and RoHS Certification. Strict quality control is performed in every procedure from material sourcing, processing and testing to packing. Our products are exported to Australia, Latin America, Southeast Asia, North America, the Middle East and Europe.
We welcome OEM and ODM orders. Professional engineer are available to assist you further. Please contact us for possible project
Packing & Delivery| Packaging Details | 1. PC bag with master carton, 500PCS per case
2. Blister package with master carton
3. White box with master carton
4. Color box with master carton |
|---|
| Delivery Time | 3~7 working days after received payment |
|---|
Our Service1. Your inquiry related to our products or prices will be replied in 12 hours
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. OEM&ODM,any your customized products we can help you to design and put into production
4. Protection of your sales area, ideas of design and all your private information
5. Deliver by air mail or ship for your orders.
Extra service:1. Logo printed
2. Sample for testing could be arranged
3. Sample could ship out by DHL,FEDEX or TNT or EMS in 3 days after confirmation.
FAQQ1:How can I find a suitable module?
A: Please show us the frequency (433.92MHz is the most common frequency) and chip (fixed code, learning, rolling code or duplicator). OR take a clear picture of the PCB board, and pass it to us, we will help you find it and recommend the right items.
Q2: May I have samples for testing?
A: Yes, samples are available and they will be ready in 3 working days, please check the model and code & frequency needed.
Q3: How to program it?
A: The programming is different from code to codes, we can provide you a manual or video
