1000V Solar DC Isolator Switch with Mc4 Connector

Name: 1000V Solar DC Isolator Switch with Mc4 Connector
Brand: all-electronics-online.com
SKU: 719787712
Availability: InStock
Rating: 4.6 (128 reviews)

Price:	US $ 27.69-30/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	HGN4-008GL
Product Name:	DC Isolator Switch
Waterproof:	IP66
Rated Voltage:	1000V
AMP:	16A, 25A, 32A
Wiring:	Upside Input, Downside Output
Working Temperature:	-5 to +60 Degree Celsius
Material:	PC+ABS / Stainless Steel
Type:	Low-voltage
Structure:	Single-column Disconnector
Installation:	Outdoor High-voltage
Operation:	Manual
Grounding:	Double Ground
Switching Mode:	Double-Throw Type
Certification:	CE
Number Of Poles:	2pole 3 Pole 4 Pole
Series:	2pole 3 Pole 4 Pole
Run:	Rotary

Product Description

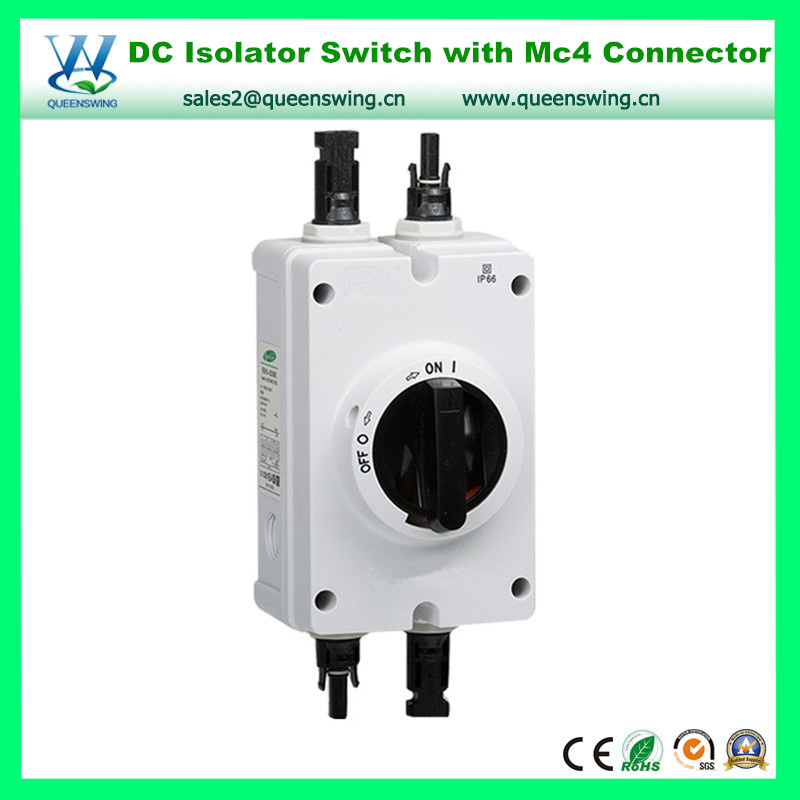

1000V Solar DC Isolator Switch with Mc4 Connector

Product Description

1000V DC Isolator Switch with MC4 connector

Feature

1. Small size.
2. Easy to install.
3. It is Non-Polarity Product.
4. Has passed CB and TUV test and conform the IEC/EN 60947-3.
5. Degree of protection to IP66.
6. Upside input, downside output.

Technical Data

Rated Voltage: 1000VDC (10A, 16A, 20A, 25A, 32A,50A,63A) Max 1500V

IP Rating: IP66

Connection Type: MC4

Rated Current: 10A, 16A, 20A, 25A, 32A, 40A,63A

Working Temperature: -5° C- +60° C

Standard: IEC 60947-3

SISO	3	25	P	Y
safey isolating switch	No.of poles	Operational current rating	Switch type	Colour
	3=3 pole	Operational current rating	P-Polycarbonate	Y-Yellow/Red
	4=4 pole	25A	R-Rotary with handle	G-Grey/Black

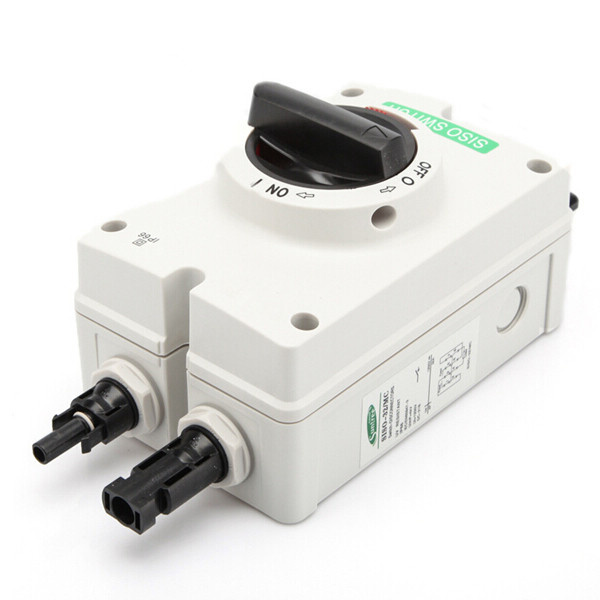

SISO Switch : Safety isolating switches / Polycarbonate enclosed rotary switches

Features:

1.Compact and suitable wire space is limited
2. DIN rail mounting for easy installation
3. Load-breaking up to 8 times rated current making it ideal for motor isolation
4. Double-break with silver rivets-superior performace, reliablity and long lasting.
5. Large padlockable red/yellow or grey/black handles
6.Comprehensive range, 16A to 32A models
7. High IP65 rating
8. High breaking capacity with 12.5mm contact air gap
9. Easy to install and operate
10. Easy snap-on fitting of auxiliary switches

Specifications:

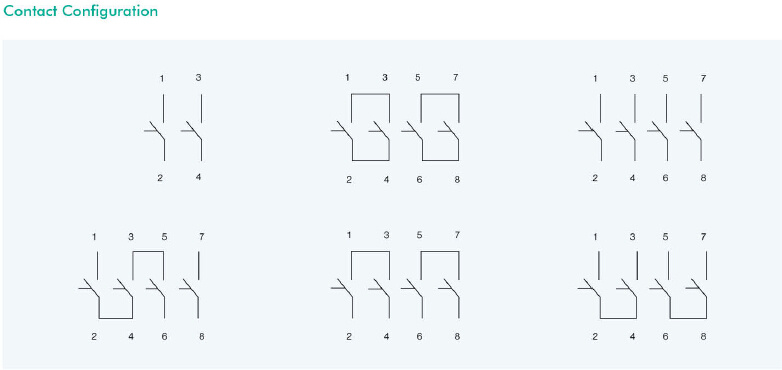

3/4 pole SISO DC isolator switch

Main contacts		Type	SISO-63
Rated Current ( I )		A	16	25	32
Rated insultaion voltage( V)		V	1000	1000	1000
Rated operational current DC21B
2 poles in series	600V	A	16	25	32
2 poles in series + 2 poles in parallel	600V	A	29	45	50
	900V	A	13	16	20
	1200V	A	9	11	13
3 poles in series	900V	A	16	25	32
3 poles in series	1000V	A	16	25	32
4 poles in series	600V	A	16	25	32
	1000V	A	16	25	32
	1200V	A	16	25	32
Rated operational current DC22B
2 poles in series	600V	A	5.5	6	6.5
	900V	A	2	2.5	3
	1200V	A	1	1.5	2
3 poles in series	600V	A	16
	900V	A	6.5
	1200V	A	5.5
4 poles in series	600V	A	16
	1000V	A	11.5
	1200V	A	8
Short circuit current		A	5
Mechanical use life		Y	10 years
Short time withstand current(1s)		2,4/2+2H	800/1300	900/1500	1000/1700
Short circuit making capacity		I cm	800/1300	900/1500	1000/1700

1000V DC Isolator Switch with Mc4 Connector

Payment Terms:
T/T, Western Union, Money Gram
Production arranged after receipt of payment.

Lead Time:
Sample order will be delivered within 7 working days.
Order quantity below 100PCS, delivery time is 7-15 working days.
Container order will be delivered within 15-30 working days.

Shipment:
Courier: FedEx, DHL, TNT, UPS, Aramex, EMS ect.
Forwarder: By sea / air or Customer designated

Contact us:
86-13433933395

Guangzhou Queenswing Solar Energy Co., Limited is a supplier of Solar Energy Product including power inverter, solar charge controller, solar panel and battery to dealers and distributors worldwide serving the electronic system, safety, industrial and military affairs.

QueensWing offers solar products including power inverter (Car power inverter, UPS+charger inverter,

Pure sine wave inverter); Solar charge controller( PWM, MPPT), Solar panel (Poly, Mono).

Our staff of sales and technical support is available to help you in selecting the right protection for your

Application as well as to provide you with samples of our products for evaluation.

At Queenswing, we are committed to providing the highest level of customer service, competitive pricing,

Speedy delivery and a comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.

Now, we already established long and well business relationship with many foreign customers in Europe,

African, the Middle East and South East Asian, and gained their Acceptance & Praise.

We believed that we are not your only choice, but we are your best choice!
