| Prod Model: |
ep1000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Voltage: |
170-280VAC |
| Wave Form: |
Modifed Sine Wave |
| Charge Current: |
10-20AMP |
| Transfer Time: |
8-10ms |
| Phase: |
Single Phase |
| Type: |
Standby |
| Protection: |
Overvoltage |
| Brand: |
Must or OEM |
Product Description

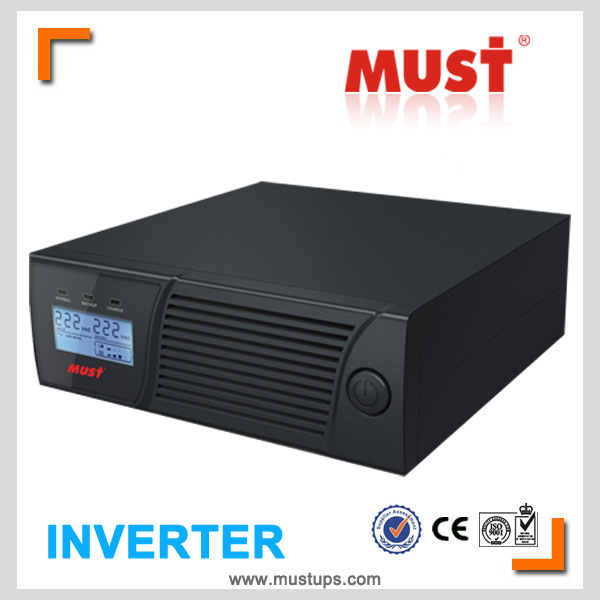

Square wave high frequency inverter with charger(500-2000VA)
High reliability with CPU control.
Inner-equipped protection of over-load, short-circuit, over-voltage, low-voltage over-heating
Self-diagnosis function, capable of detecting status at inverter and battery in the Inverter.
Automatic voltage regulation (AVR), most suitable for areas where commercial power supply is unstable.
Extra long standby time. And additional battery connections possible for longer power supply time according to customer's requirements.
| MODEL | 115V Models | 230V Models |
| OUTPUT |
| Power Levels crated at nominal inputs | 500VA/300W;1000VA/600W;2000VA/1200W | 500VA/300W;1000VA/600W;2000VA/1200W |
| Output Voltage | 120V | 230V |
| Phase | Single |
| Voltage Waveform | Modified Sine Wave |
| Power Factor | 0.6 |
| Output Frequency(Synchronized to Mains) | Auto Select for 50/60Hz |
| Regulation (Nominal) | 10%-18% |
| Regulation(Battery mode) | ±0.1HZ |
| Transfer time | 8ms Typical |
| INPUT |
| Nominal Voltage | 110V/120V Selectable | 220V/230V/240V Selectable |
| Phase | Single |
| Voltage range | 90 - 145VAC or 170-280VAC ( Narrow Range ) |
| 50-145VAC / 90-280VAC (Wide Range) |
| BATTERY |
| Charger Current | 500VA/300/12VDC:10 Amp + / - 1Amp ;1000VA/600W/12VDC:10 Amp + / - 1Amp 2000VA/1200W/24VDC:10 Amp + / - 1Amp |
|
| Floating Voltage | 500VA/300W:13.7V + / - 0.2V ; 1000VA/600W:27.4V + / - 0.4V ; 2000VA/1200W:27.4V + / - 0.4V |
|
| Overcharge Protection | 500VA/300W: 15V +/- 0.3V charger stops and fault |
| 1000VA/600W:15V +/- 0.6V charger stops and fault |
| 2000VA/1200W: 30V +/- 0.6V charger stops and fault |
| EFFICIENCY |
| AC to AC | 95% "> >95% |
| DC to AC | >80% |
| INDICATOR |
| AC Mode | Green LED lighting |
| Battery Mode | Yellow LED lighting |
| Battery Charging Mode | Green LED flashing every 2 seconds |
| Overload | Red LED flashing every 0.5 second |
| Fault | Red LED lighting |
| AUDIBLE ALARM |
| Low Battery at Battery Mode | Sounding every 2 seconds |
| Overload | Sounding every 0.5 second |
| Fault | Continously sounding |
| Protection |
| Full Rrotection | Deep Discharge, Overcharge, and Overload protection |
| ENVIRONMENTAL AND SAFETY |
| Operating Temperature | Up to 1500 meters:0 °Cto 40°C (32°F to 104°F) |
| Transit/storage Temp. | 15°C below zero to 50°C (5°F to 131°F) |
| Relative Humidity | 0 - 90% non condensing |
| Quality control system | ISO 9001:2000, ISO 14002-2004 |
| PHYSICAL |
| Appearance | Size(mm)L x W x H | 224 x 255 x 80 |
| Weight(Kg) | 500VA / 300W: 1.8kg ;1000VA /600W :2.0kg ; 2000VA / 1200W :2.5kg |
| Carton BOX(mm)L x W x H | 414*311*560(3pcs) |
| Gross Weight Weight(Kg) | 500VA / 300W:7.4kg ;1000VA /600W :8kg ; 2000VA / 1200W :9.5kg |
Shenzhen Must Power Limited established in 2010, with the headquarter in Hongkong, which is a professional hi-tech enterprise specialized in UPS, Power Inverter, Solar Power, VRLA Battery development, manufacturing, sales and after-service.
Our comprehensive product lines include:
Off-line UPS, line interactive UPS, On-line UPS, Solar inverter, Power inverters, Stabilizers and Solar battery.
Most of products from MUST applied with CE, FCC certificates. The main markets are Ukraine, Russia, Vietnam, Thailand, Pakistan, India, etc. Must Power Limited is one of the authorized suppliers for China Citic Bank, Ministry of Information Industry of China, Ministry of Power Industry of China, Ministry of Transportations of China.
With an excellent R & D team formed by over 30 engineers and a skilled, dedicated workforce, together 10, 000 square meter in-house manufacturing facilities in Guangdong China, Shenzhen Must Power Limited has innovated, developed and improved the products to meet the demands of customers and keep pace with changing demands of the industries. With 'close to customer' notion, we have aligned most of its resources to support our Original Equipment Manufacturer (OEM) customers, and work with our customers as power partners. Our mission is to be the best supplier of power solutions, and to accomplish this, we will continue to tailor products for market needs while maintaining high quality, integrated customer service and prompt delivery.
