| Prod Model: |
EA1000 Series Offline UPS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| After Service: |
2% Spare Parts |
| Wide Input Voltage: |
165-275VAC |
| Warranty: |
One Year |
| Battery Type: |
Lead Acid Batter |
| Overload Protection: |
Yes |
| Backup Time: |
7-15mins |
| Capacity Range: |
500va-1500va |
| Function: |
3 Step AVR |
| UPS Type: |
Standby |
| Phase: |
Single Phase |
| Type: |
Standby |
| Protection: |
Unbalanced Loads |
| Brand: |
Must |
Product Description

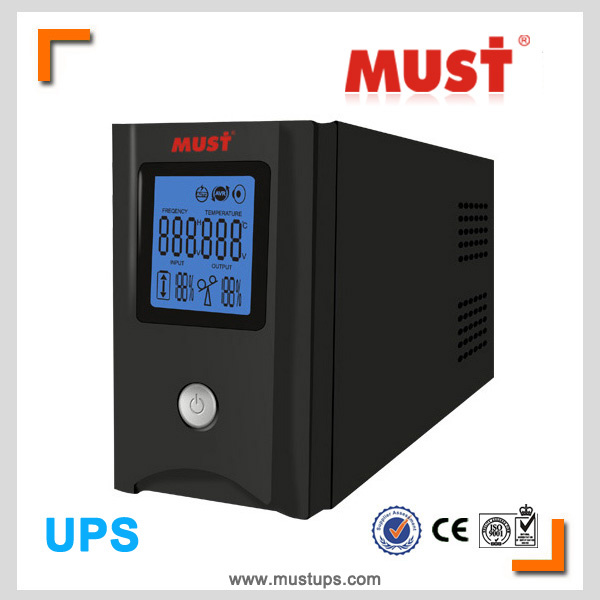

EA1000 Series Offline UPS 500VA-1500VA Power Supply1.
MUST Company:Must Power Limited was established in 1998, with the headquarter in Hong Kong, which is a professional Hi-tech enterprise specializes in the research, development and manufacturing of Uninterruptible Power Supply (UPS), power inverter, solar power inverter.
Our comprehensive product lines include: offline UPS, line interactive UPS, online UPS, power inverter, solar inverter, solar controller. Most products with CE, SONCAP certificate and IS9001 quality certificate. We are one of the authorized suppliers for China Government.
2.Date Sheet:| Offline UPS Model | B500 | B600 | B650 | B800 | B1000 | B1200 |
| Rated power(VA) | 500VA | 600VA | 650VA | 800VA | 1000VA | 1200VA |
| Rated power(W) | 300W | 360W | 390W | 450W | 600W | 700W |
| AC Input | Rated voltage | 110/115/120VA or 220/230/240V AC |
| Voltage range | 85-150V AC/145VAC-280VAC |
| Output | Phase | Single |
| Voltage(Btt. Mode) | 110/120VAC or 220/230/240VAC |
| Wave-form under battery | Modified sine wave |
| Voltage Battery mode | ±10%(auto-sensing) |
Frequency Range
(Batt. Mode) | 60 Hz or 50 Hz ±1 Hz |
| Transfer time | Typical 2-6 ms, 10ms max. |
| Protection | Spike protection | 320joules, 2ms |
| Filter | 10dB at 0.15MHz , 50dB at30Hz |
| Overload | UPS automatic shutdown if overload exceeds 110% of normal
value for 30 seconds and 130% for 3 seconds |
| Short circuit | UPS output is cut off immediately or input circuit breaker protection |
| Alarm | Battery back-up | Beeping sound every 4 seconds |
| Battery low voltage | Beeping sound every 1 seconds |
| Overload | Continuous beeping sound |
| Battery | Type | Sealed maintenance-free lead acid |
| Capacity | 1*7ah/12v | 1*7ah/12v | 1*7ah/12v | 1*9ah/12v | 2*7ah/12 | 2*7ah/12 |
| Recharge time | 8 hours to 90% of full capacity |
| Back-up time | Typical 15 min(half) |
| Physical | Net weight (kgs) | 4.5 | 4.5 | 4.5 | 4.7 | 9.5 | 9.5 |
| Body size(L*W*H)(mm) | 305 *85*140 | 350 * 120 *188 |
| Inner box size(mm) | 365 *130*210 | 405*195*288 |
| master carton(mm) | 380*278*440(4pcs/master carton) | 420*410*303
(2pcs/master) |
| GWNW(kgs): | 22.5/20KGS | 21/20kgs |
| Loading | 20 ' | 2340 pcs | 1000pcs |
| 40' | 4800 pcs | 2050pcs |
OPERATING
ENVIRONMENT | Humidity | 0-90 % RH @ 0- 40°C (non-condensing) |
| Noise Level | Less than 40dB | Less than 45dB |
| MANAGEMENT | Optional USB/RS-232 Port | Supports Windows® 98/2000/2003/XP/Vista/2008, Windows® 7, Linux, and MAC |
Must power with an excellent R & D team formed by over 30 engineers, and together 10,000 square meter in-house manufacturing facilities in Shenzhen city, Guangdong, China.
Our main markets are Africa, Middle East as Ukraine, Italy, Kenya, south Africa, Nigeria, Pakistan etc.
Feature:
- AVR function.
- High reliability with CPU control.
- Advanced PWM technology for inverter output.
- Advanced battery management system with automatic re-charging,with auto restart while AC recovery.
- Special surge suppression output sockets.
- Perfect automatic protection against extremely high and low voltage, overload, over-current, short circuit, or low battery.
Shipping Photos:
Samples are Available for Testing and Market Test. OEM is welcomed for us.
1-Year Warranty on MUST POWER Products
Guides and After-sell service Consultancy
Must Power Team will offer these guides below.
A. Need a Accessory
B. Products Repair
C. Power Problems to Solve
D. Power Protection Solutions, etc.
24 Hours After-service consultancy just for you and to make your problems to solve easily.
Shenzhen Must Power Limited established in 2010, with the headquarter in Hongkong, which is a professional hi-tech enterprise specialized in UPS, Power Inverter, Solar Power, VRLA Battery development, manufacturing, sales and after-service.
Our comprehensive product lines include:
Off-line UPS, line interactive UPS, On-line UPS, Solar inverter, Power inverters, Stabilizers and Solar battery.
Most of products from MUST applied with CE, FCC certificates. The main markets are Ukraine, Russia, Vietnam, Thailand, Pakistan, India, etc. Must Power Limited is one of the authorized suppliers for China Citic Bank, Ministry of Information Industry of China, Ministry of Power Industry of China, Ministry of Transportations of China.
With an excellent R & D team formed by over 30 engineers and a skilled, dedicated workforce, together 10, 000 square meter in-house manufacturing facilities in Guangdong China, Shenzhen Must Power Limited has innovated, developed and improved the products to meet the demands of customers and keep pace with changing demands of the industries. With 'close to customer' notion, we have aligned most of its resources to support our Original Equipment Manufacturer (OEM) customers, and work with our customers as power partners. Our mission is to be the best supplier of power solutions, and to accomplish this, we will continue to tailor products for market needs while maintaining high quality, integrated customer service and prompt delivery.
