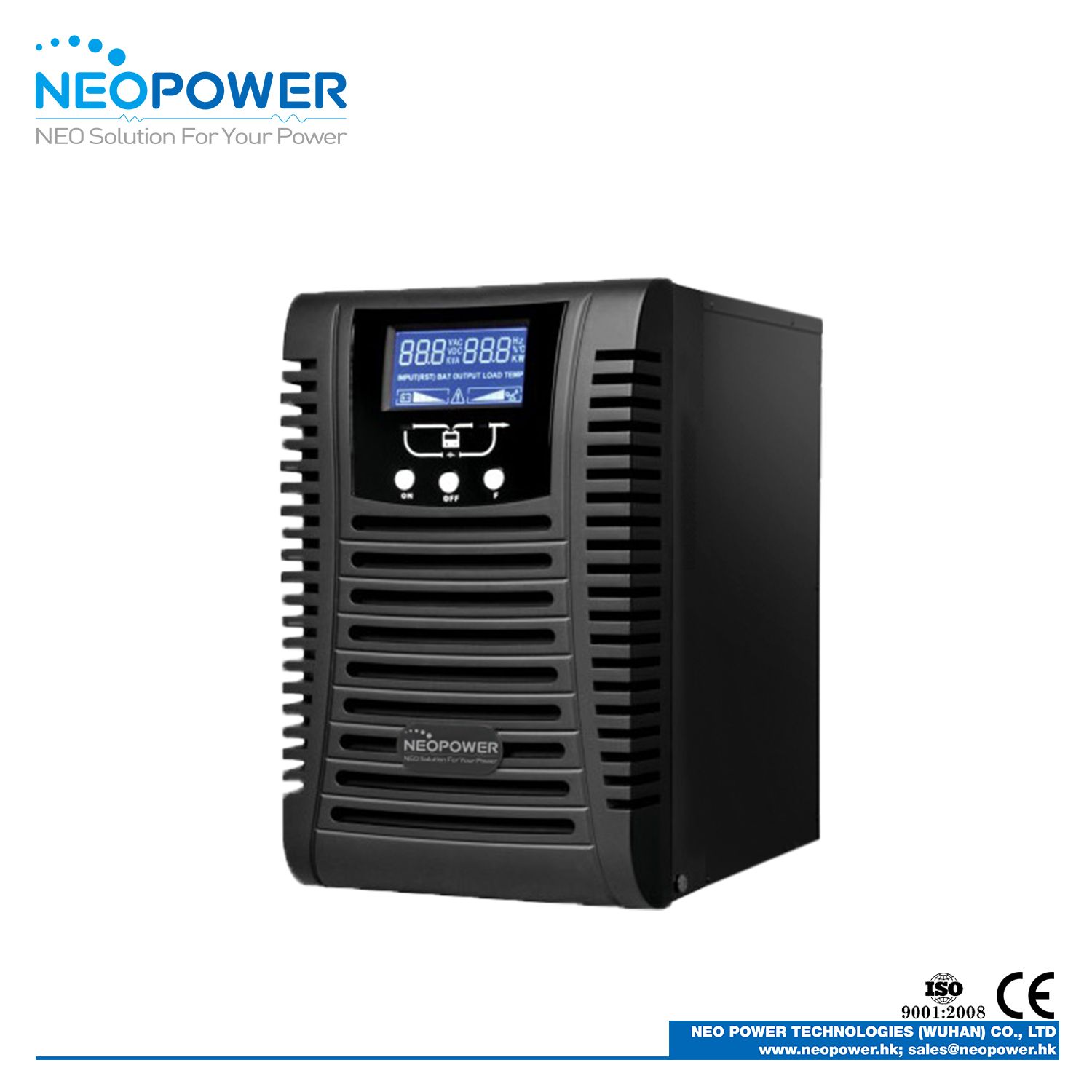

1000va Single Phase Double Conversion Online UPS for Servers

Name: 1000va Single Phase Double Conversion Online UPS for Servers
Brand: all-electronics-online.com
SKU: 821779415
Availability: InStock
Rating: 4.5 (47 reviews)

Price:	US $ 127-149/Set
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	NP1101/L
Capacity:	1000va
Nominal Voltage:	220V/230V/240V/110V/120V
Output Precisin:	±1%
Power Factor:	0.8/0.9
Thd:	3%
Topology:	Double Conversion
Display:	LED/LCD
Communication:	RS485/RS232/RJ45/USB
Protocal:	Snmp/TCP/IP
Epo:	Yes
Phase:	Single Phase
Type:	On-line
Protection:	Short Circuit
Brand:	Neopower

Product Description

Model	NP1101
Capacity	1000 VA
Power Rating	800/900 Watts
Input Voltage	115 ~ 300 Vac, single phase + N + PE
Input Frequency	40 ~ 60 Hz (configurable via control panel)
Input Power Factor	>0.99
Output Voltage	220/230/240 Vac +/-1%, single phase + N + PE
Output Frequency	50/60 Hz
Output Power Factor	0.8/0.9
THD	<3% (linear load); <6% (non-linear load)
Crest Factor	3 : 1
Efficiency	>95%
Overload Ability	30' / 1' (125% / 150%)
Battery Voltage	36 Vdc
Transfer Time	0 ms
Display	LED (optional LCD)
Communication Port	RS 232 / RS 485 / SNMP Card / Dry Contact
Operation Temperature	-10 ~ 50ºC
Noise	<50 dB
Altitude	full power rating at 1000 m, 1% decrease as per 100 m higher
Humidity	95% (non-condensing)
Alarm	buzzer + LED indicators (+optional LCD display)
Standards	EMI: IEC62040-2; EMC: IEC61000-4-2~5
Dimension	144 * 350 * 230 mm
Net Weight	6.5 kG

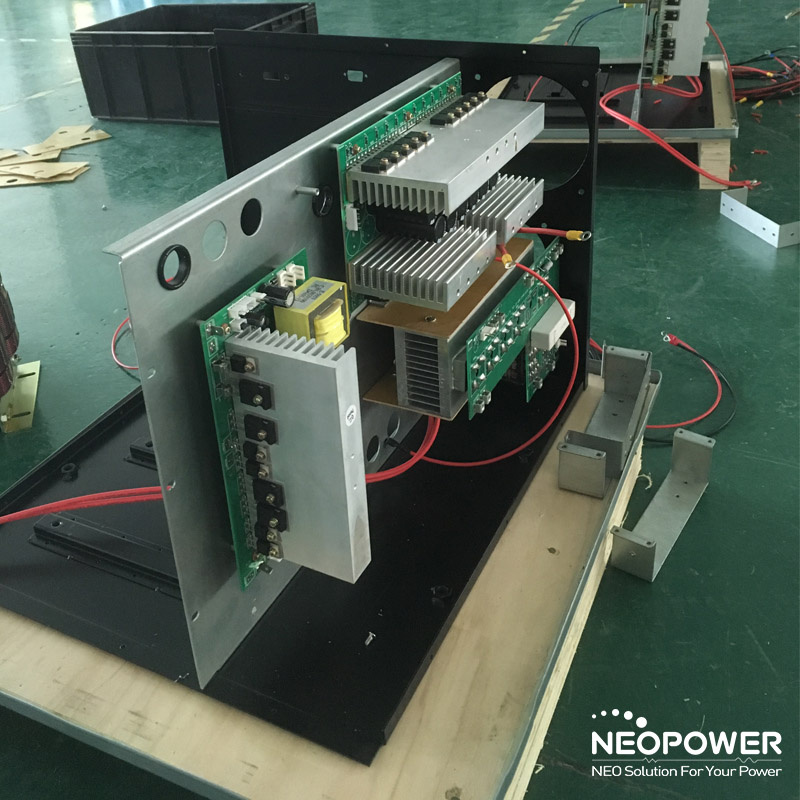

PRODUCT INTERIOR

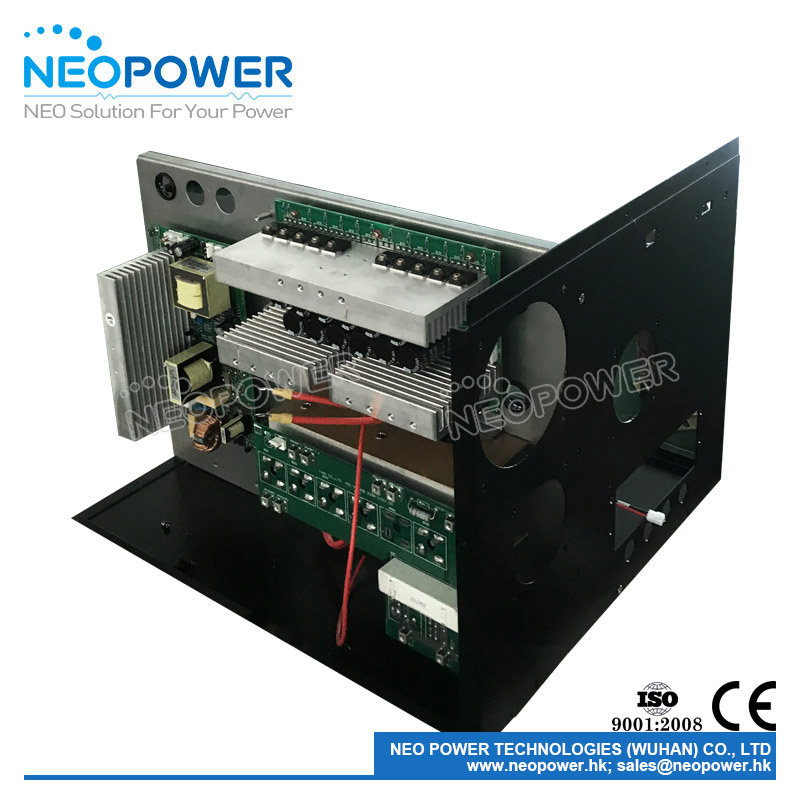

UPS STRUCTURE

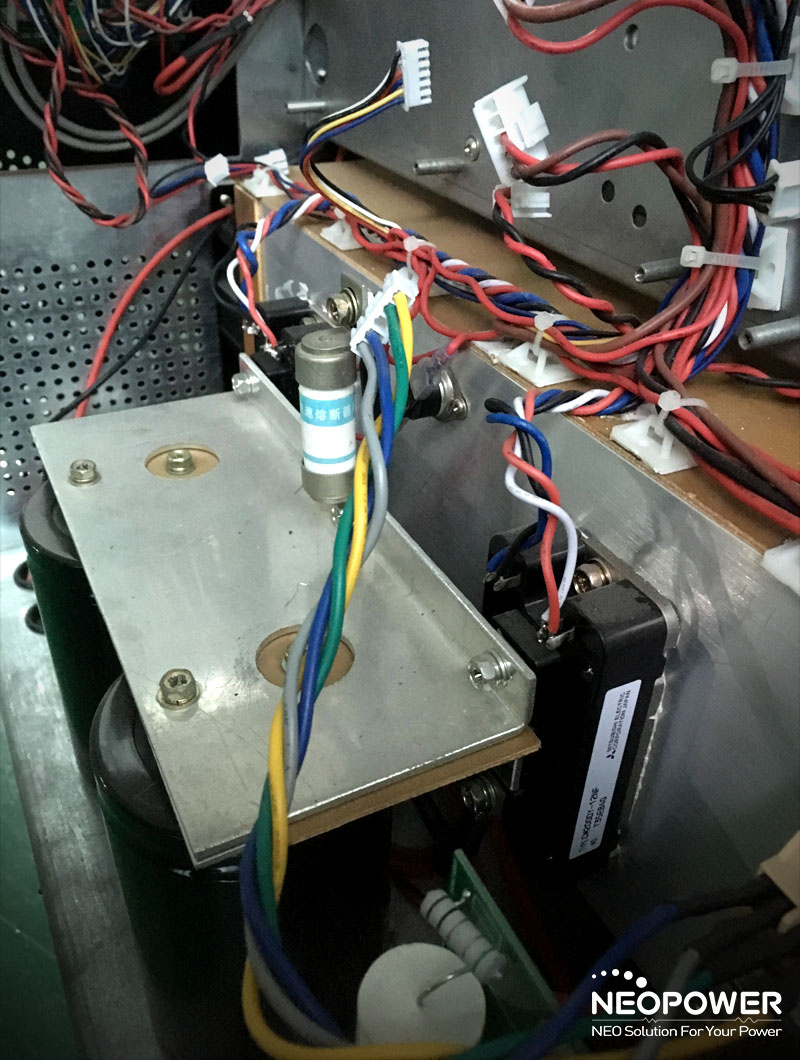

INTERIOR DETAIL

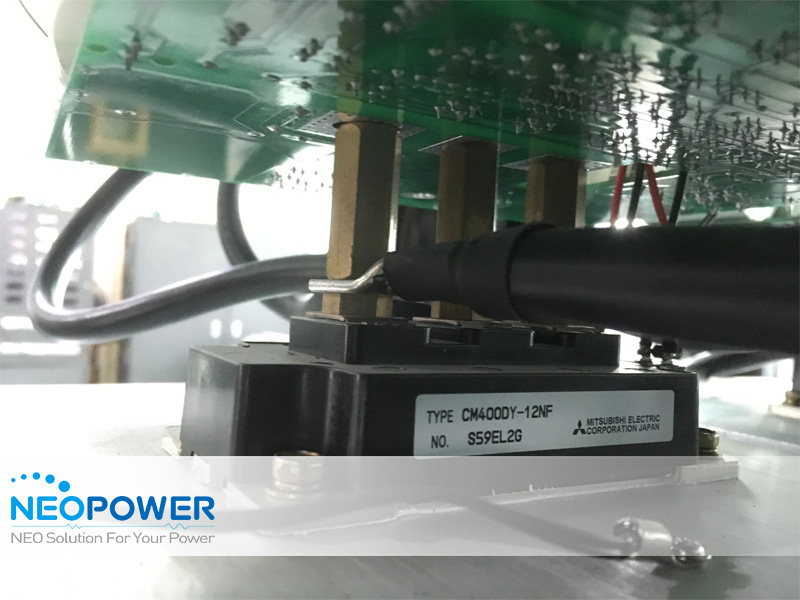

IGBT MODULE

FEATURES

Office & Server Special
High Operation Efficiency
Max 8 Units Parallel Connection Available
6th Pack IGBT Module
Bypass Mode Available
Built-in Manual Maintenance Bypass Switch
LED & LCD Display Options
Optional Rack Enclosure
Unbalanced-rating parallel technology
Auto Battery Floating Charge Transfer
Configurable Battery Voltage
Light & Quiet
