| Prod Model: |
GS-FD3015 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Source: |
Dkj2000p |
| Size: |
3000*1500 |
| Spectroscopic Type: |
Prismatic Decomposition |
| Prism Rotating Speed: |
30000 |
| No. Of Spindle Mirror: |
24,36,48 Optional |
| Max. Perforating Speed: |
8640,000/Min |
Product Description

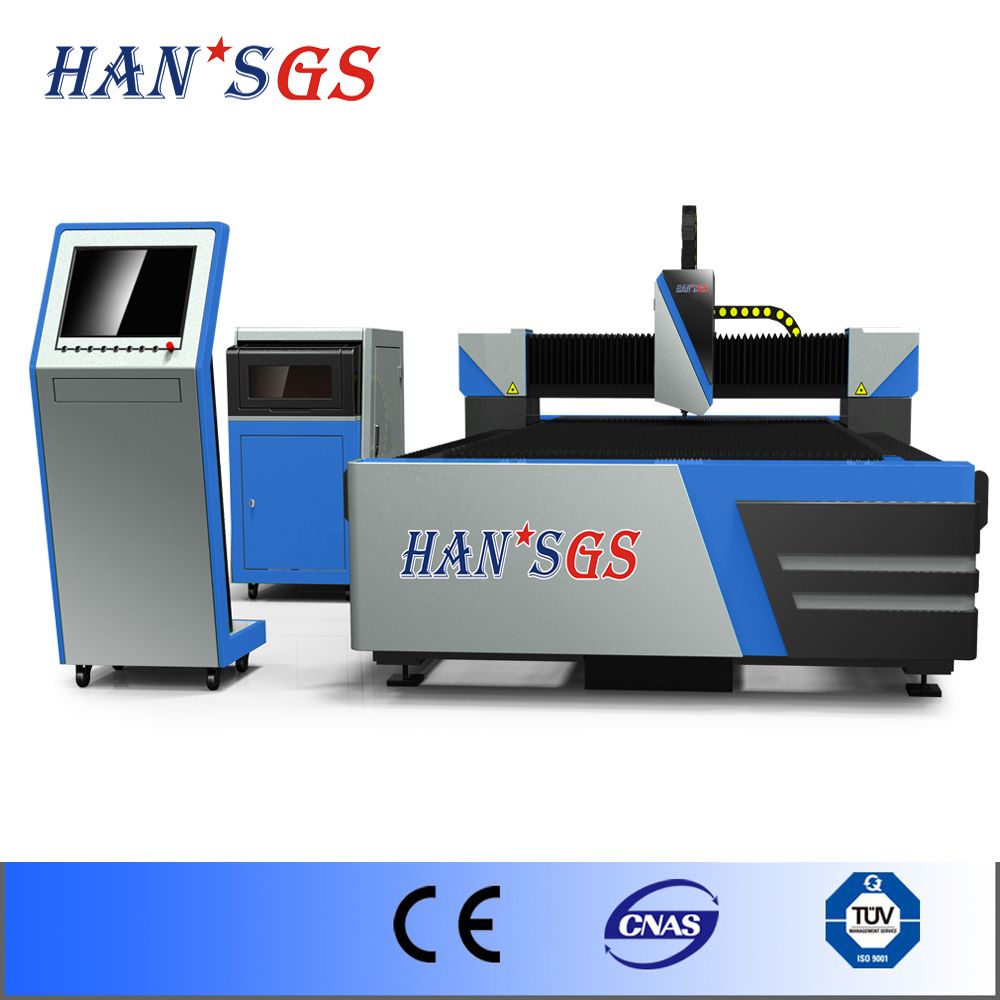

Functions of GS-LFD3015 laser cutter
1. Equipped with exhaust device, have good exhausting effect and little pollution.
2. Small occupied area, high system integration, convenient to operate and maintenance,24 hours continuous working.
3. The water chiller has good safety protection function, such as over temperature, lack phase, pressure, water-break, undervoltage, overload, etc. With stable performance, satisfied the cooling requirement of laser source.
Laser cutting advantages over other thermal cutting methods
1. The cutting quality is good
2. Highly automation
3. High cutting efficiency
4. Fast cutting speed
5. Non-contact cutting
6. Variety cutting material
Parameters | Model | GS-LFTP3015 |
| Output power of laser source | 500W/1000W |
| Cutting area (L*W) | 3000mm × 1500mm |
| Max tube diameter | 200mm |
| Max tube processing length | 3m |
| Max tube cutting thickness | 5mm |
| X axle stroke | 3048 mm |
| Y axle stroke | 2000 mm |
| Z axle stroke | 80 mm |
| Cooling | water cooling |
| Max accelerated speed of X, Y axles | 1G |
| Kerf Width | 0.1~0.3 mm |
| Positioning accuracy of X, Y and Z axles | ±0.05 mm |
| Repeated positioning accuracy of X, Y and Z axles | ±0.03 mm |
| Processing precision of work piece | ±0.1 mm |
| Kerf harshness | Ra 3.2-12.5 μm |
| Voltage | 380V,50/60Hz |
| Continuous working time | 24 Hours |
| Max bearing weight of working platform | 600Kgs |
| Total installed capacity | 20-25 KVA |
| Total protection level of power supply | IP54 |

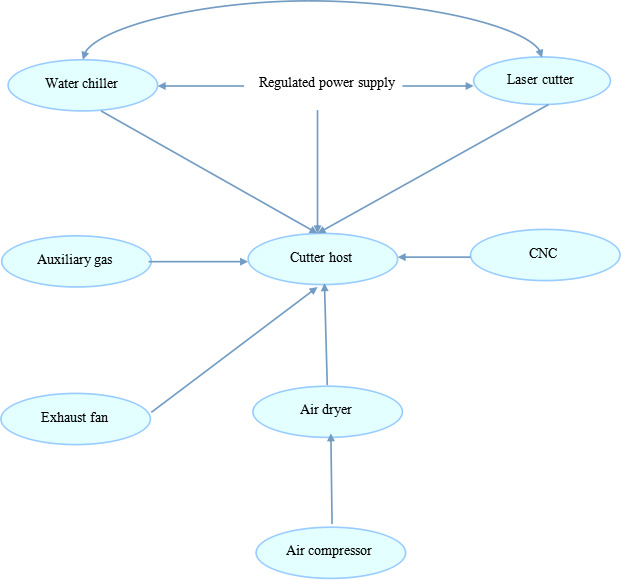

Constitution of GS-LFTP3015 CNC Laser Cutter
IPG Fiber Laser Source
Main technical data:| Laser source | Fiber laser source 500W/1000W |
| Working medium | Doped fiber mirror |
| Output | 500W/1000W |
| Rated input voltage | 380V±10% |
| Power consumption | <5KW |
| Light beam quality BPP | ≥3.5mm*mrad |
| Max cutting thickness | 12mm carbon steel, 8mm SS, 4mm Aluminum board |
| Min kerf width | 0.1 mm |
| Stability of laser power | ±1% |
| Continuous working time | 24 hours |
| Optical route | Fiber transfer |
Raytools Laser Cutting Head
Laser cutting head of stable performance and convenient operation and maintenance
4.2.1 non contact capacitor auto tracking system , Z-axis floats stability, auto adjusts optimal focal distance.
4.2.2 Two different focus lenses, adapt to cutting various thickness materials, assure the optimal cutting effect.
4.2.3 The laser cutting head can bear 2.0Mpa pressure, high pressure gas path, improve cutting ability for the materials difficult to cut such as stainless steel.Cutting Materials
It is used to cut the metal materials, such as stainless steel, carbon steel, alloy steel, silicon steel, spring steel, galvanize plate, pickled plate, copper plate, aluminum plate, etc.
Application Industry
Widely used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, tube fittings, automobile, food machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, kitchen utensils and appliances, craft gifts, tool processing, decoration, advertising and other manufacturing industries.
Cutting Machine Samples
