1000W 24V Indoor LED Power Supply for Strips with CE

Name: 1000W 24V Indoor LED Power Supply for Strips with CE
Brand: all-electronics-online.com
SKU: 728299335
Availability: InStock
Rating: 4.3 (86 reviews)

Price:	US $ 70/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ELDV-24E1000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage:	220V
Input Current:	8.0A
Output Voltage:	24V
Output Current:	42A
Power Factor:	Low
Efficiency:	>83%
IP Rating:	IP 20
Weight(Kg):	2.7000
Packing Information:	5 PCS/ Carton, G.W 14.5 Kg
Dimensions(LWH):	293188.789.8 Mm
Usage:	Vehicle
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	AC220-240V
Brand:	Neonpro

Product Description

1000W 24V Indoor High Power LED Power Supply for large size Signage

1.Brief Introduction of LED power supply
-Designed for large size signage, decoration or lighting projects
-Ideal driver for LED pixel lamp, strip, bar light, wall washer, module...
-High output power up to 1000W

2.Technical Specification of LED power supply

Model no.	ELDV-24E1000
Input voltage	180-250 VAC 50/60 Hz
Max. power	1000 W
Output type	Constant voltage
Dimming	Not dimmable
Built-in active PFC	No PFC
Power factor	Low
Efficiency	>83%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	24VDC ± 5%
Output current	42A Max
Overload protection	110-150% hiccup mode, auto-recovery
Over voltage protection	115-150% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25~40
Installation	Indoor
IP rating	IP 20
Cooling	Built-in electric fan
Connection input/output	Input:terminal Output: terminal(six)
Dimensions(LWH)	293188.789.8 mm
Weight(kg)	2.7000
Packing information	5 Pcs/ Carton, G.W 14.5 KG

3. Application of LED driver
LED module & LED strip
LED light box and channel letter
LED neon light
LED bar
Other signage lighting.

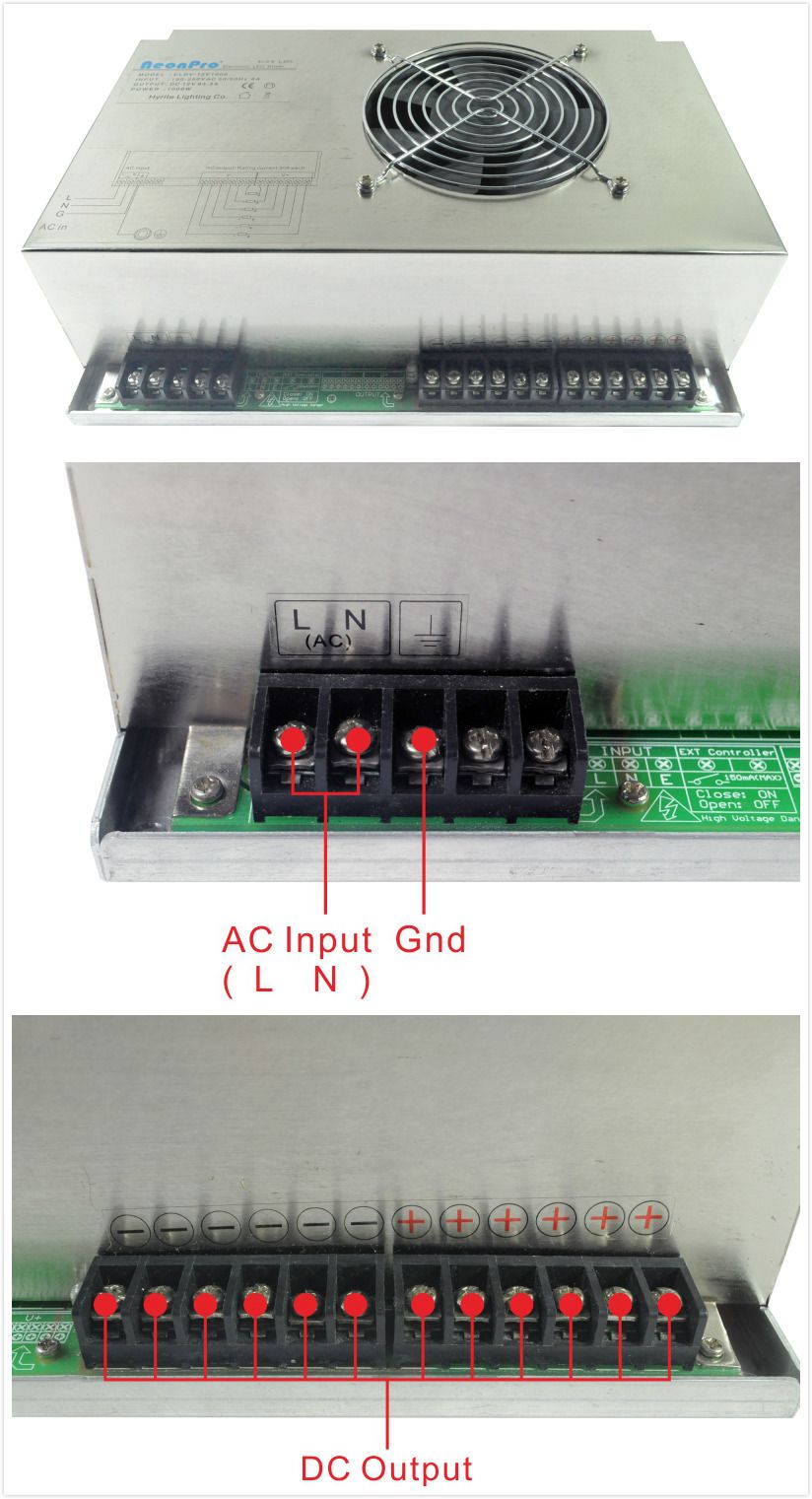

4. Detailed Pictures of LED power supply

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
