1000W Constant Voltage Rainproof LED Driver with Ce

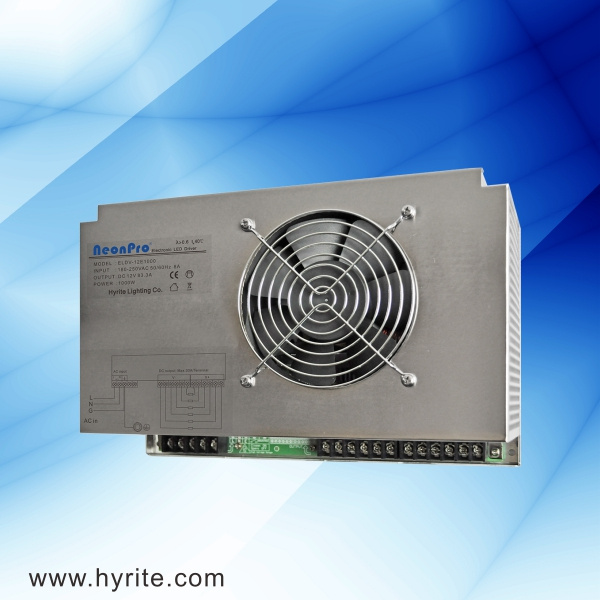

Name: 1000W Constant Voltage Rainproof LED Driver with Ce
Brand: all-electronics-online.com
SKU: 761754065
Availability: InStock
Rating: 4.7 (70 reviews)

Price:	US $ 70-73/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ELDV-24E1000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Power:	1000W
Output:	Constant Voltage
Input Voltage:	180-250V
IP Rating:	IP20 Non Waterproof
Warranty:	2 Years Warranty
Use:	for Spot Light, Down Light, Panel Light
Size:	462620mm
Case:	Plastic
Usage:	Construction, Building
Circuit Structure:	PWM Controlled
Output Type:	Terminal
Driving Method:	Constant Voltage or Constant Current
Certification:	Ce, RoHS, EMC Test
Power Supply Voltage:	180-250V AC 50/60Hz
Brand:	Neonpro

Product Description

Constant Current PWM 3W 300mA LED Driver for LED Lighting

Breif Introdcution:
*Constant voltage and constant current, plastic case, IP20
*Used for Spot Light, Down Light, Panel Light etc
*Protection: Short Circuit, Over Load

Technical Specification:

Model

Model no.	ELDV-24E1000
Model series	ELDV
Input voltage	180-250 VAC 50/60 Hz
Power	1000 Watts
Output type	Constant voltage
Dimming	Not dimmable
Power Factor	Low PF~0.6
Efficiency	>83%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	24VDC ± 5%
Output current	42A Max
Overload protection	110-150% hiccup mode, auto-recovery
Over voltage protection	115-150% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25~40ºC
Installation	Indoor
IP rating	IP 20
Cooling	Built-in electric fan
Connection input/output	Input:terminal Output: terminal(six)
Dimensions(LWH)	293188.789.8 mm
Weight(kg)	2.7000
Packing information	5 Pcs/ Carton, G.W 14.5 KG

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
