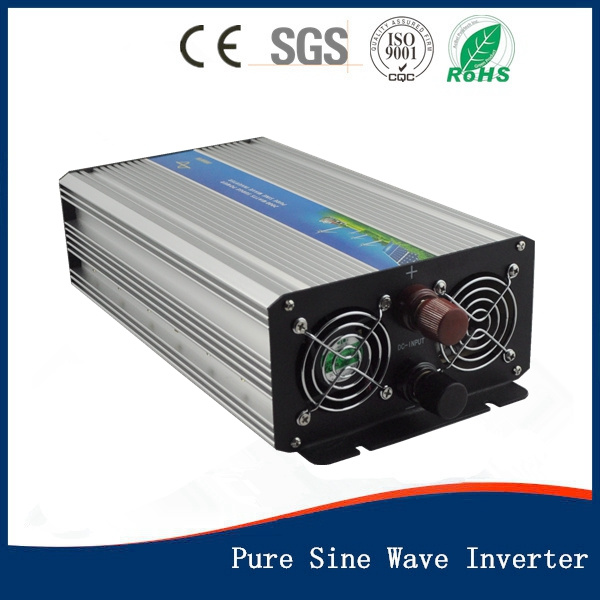

| Prod Model: |
CZ-1000S |
| Model No.: |
CZ-1000s |
| Rated Power: |
1000W Power Inverter |
| Wave: |
Pure Sine Wave |
| OEM Service: |
Available |
| Warranty: |
24 Months |
| USB Port: |
5V |
| Color: |
Blue/Silver |
| LCD Display: |
Optional |
| Output Socket: |
Optional |
| Application: |
Solar System, Wind System, Home and Office Using |
Product Description
Product Description
-DC 12V 24V 48V AC 100V 110V 120V 220V 230V 240V 50HZ/60HZ
-150w 300w 500w 800w 1000w 1500w 2000w 2500w 3000w 4000w 5000w 6000w Dc Ac Power Inverter
CE,RoHS,ISO 9001 Approved High Quality Solar Power Inverter
Pure Sine Wave ,2 Years Warranty .
-for Solar Power/Wind Power off Grid System
-Car Power Inverter
-Home Use Powe Inverter
Products Features
1. Input & output fully insolated
2. High Surge: High surge current capability starts difficult loads such as TVs, camps, motors and other inductive loads
3. Soft start: Smooth start-up of the appliances.
4. Pure sine wave output waveform: Clean power for sensitive loads.
5. AC output identical to, and in some cases better than the power supplied by your utility
6. Cooling fan in the inverter is thermally activated and comes on when the inverters becomes warm, and turns off automatically after the inverter has cooled.
7. Low total harmonic distortion: Below 3%
8. Two LED indicators on the front panel shows the working and failure state.
Protection Function
1. Low voltage alarm & Shutdown
2. Over-voltage protection
3. Overload protection
4. Over-temperature protection
5. Short circuit protection
6. Soft start
7. Auto. Reset after being in protected
8. Grounding protection
Technical Specifications
| Model | 1000w Solar Power Inverter (CZ-1000S) |
| Input | DC voltage | 12V | 24V | 48V | 110V |
| Voltage range | 10-16VDC | 20-33VDC | 40-63VDC | 90-130VDC |
| No load current draw | 0.5A | 0.3A | 0.2A | 0.1A |
| Efficiency | > 90% |
| Output | AC voltage | 100/110/120VAC or 220/230/240 VAC |
| Waveform | Pure sine wave |
| Frequency | 50Hz or 60Hz |
| AC regulation | 3% |
| Package | Machine size(cm) | 33.5*16.5*8.5 |
| Packing size(cm) | 43*23*14.8 |
| Net weight(kg) | 3.3 |
| Gross weight(kg) | 3.9 |
Custom-made available:
We also could provide customized DC input voltages: DC 36V, DC 60V, DC 72V, DC 84V, DC 96V, DC 110V, DC 120V, DC 220V. |
Packaging details
1pcs/box, unit box size 43*23*14.8cm,N.W3.3kg, G.W3.9kg
4pcs/CTN, carton size 48.5*44.5*32.5cm, N.W15.0kg, G.W17.0kg
Delivery details
About bulk order, it's up to your quantity, almost within 30days.
About sample, it's within 5 days.
Payment and Shipping
1. We accept T/T, Paypal, Western Union, Money Gram;
2. For sample, it's better via Paypal or Western Union; For quantity order, we can go for T/T;
3. For small order, we usually transport by express like FedEx, DHL, TNT, EMS.
For big order, we can ship by air or by sea.
