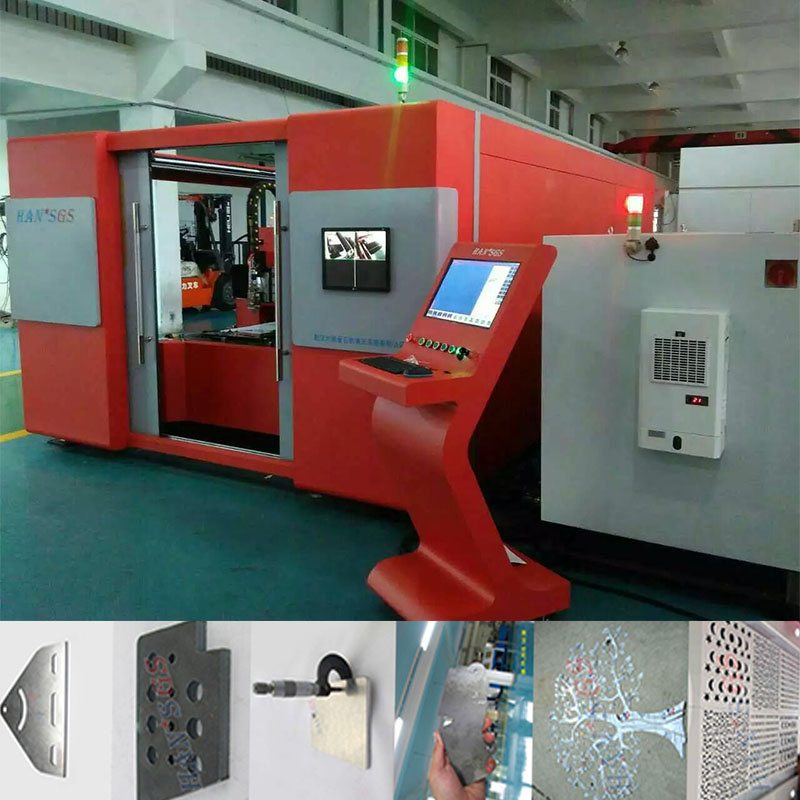

1000W Spi Laser Source Fiber Metal Cutter for 3mm Aluminum
| Price: |
US $ 3000-150000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
GS-LFDS3015 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type For Cutting Machine: |
CNC Cutting Machine |
| Certification: |
Ce, ISO 9001:2000 |
| Automation: |
Semi-Automatic |
| Condition: |
New |
| Type: |
Laser Cutting Machine |
| Type For Fold-Bending Machine: |
Laser Cutting Machine |
| Type For Pipe And Tube Bending Machine: |
Laser Cutting Machine |
| Power Source: |
Fiber Laser |
Product Description
1000W SPI laser source fiber metal cutter for 3mm aluminum
IPG Fiber Laser Source
We adopts the world's highest level IPG fiber laser source, stable performance, assured safety of the whole product quality. | Specifications of CF3015-2000 |
| Operation mode | CW,QCW |
| Center wavelength of radiation | 1070-1080 Nm |
| Standard output | 2000 W |
| Beam quality | 4 mm*mrad |
| Adjusting speed | 5 kHz |
| Fiber Diameter | ≥50 μm |
| Output stability(long-time) | ±2 % |
| Power | 400-460 VAC |
| power dissipation | 8 kW |
| Max. Power dissipation of cooling water | 0.4 M3/h |
| Size(W*D*H) | 850×800×1190mm |
| Weight | 350 Kg |
Fiber Laser Cutting Machine Technical Parameters | Model | GS-LFDS3015 | GS-LFDS3015 | GS-LFDS3015 |
| Laser source medium | Fiber |
| Cutting range(L*W) | 3000mm × 1500mm | 3000mm × 1500mm | 3000mm × 1500mm |
| Z axle stroke | 150 mm |
| Max cutting speed | 40m/min | 42m/min | 45m/min |
| Max positioning speed | 140m/min |
| Wok platform size/Max height of feeding material | 4250x2500mm/more than 120mm |
| Cooling form | water cooling |
| Laser wavelength | 1070nm |
| Output power of laser source | 1000W (imported) | 1500W (imported) | 2000W (imported) |
| Min. cutting gap | ≤0.1mm | ≤0.125mm | ≤0.125mm |
| Positioning accuracy of X, Y and Z axles | ±0.03 mm |
| Repeated positioning accuracy of X, Y and Z axles | ±0.02 mm |
Thickness of cutting material
(according to material) | 0.2-8mm | 0.2-12mm | 0.2-16mm |
| Drive model | Imported servo motor |
| Power requirement | 380V,50/60Hz |
| Working temperature | 5ºC-45ºC |
| Continuous working time | 24 Hours |
| Machine weight | About 5950Kgs |
| Outer dimension | 7828mm x 3741mm x 1940mm |
| Total protection level of power supply | IP54 |
Servo Motor of strong rigidity, excellent control ability, accurate, sensitive response
1 Outstanding performance with the highest level of response of amplifier in the industry, the setting time is shortened in a high degree.
2 Enhancement of the Vibration suppression function to improve the track ability and decrease the setting time. Reduce the vibration when driving and reduce the fore-end vibration when stop working
3 Easy start up: simple installation and setting. The connection can be finished one time with Sigma Win+Connection confirmation function.
4 Standard configuration with analog quantity, instruction form of pulse sequence type and MECHATROLINK-II communication command type. Customer visit
Fiber Laser Cutting Machine Germany Original Precitec Laser Cutting Head
Laser cutting head of stable performance and convenient operation and maintenance
1 With Germany original PRECITEC fiber laser cutting head and non contact capacitor auto tracking system , Z-axis floats stability, auto adjusts optimal focal distance.
2 Two different focus lenses, adapt to cutting various thickness materials, assure the optimal cutting effect.
3 The laser cutting head can bear 2.0Mpa pressure, high pressure gas path, improve cutting ability for the materials difficult to cut such as stainless steel.

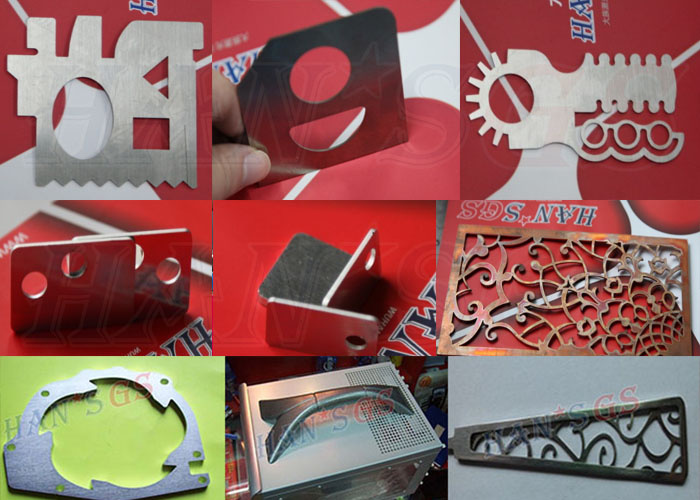

Fiber Metal Cutter Sample
Please let us know following informations:
1.What kind of material do you want to cut?
2.What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX. dimension of your materials ?
4. After cut, what will be the metal used for? (application)
5. Are you an end user or reseller?
According to your above information,we'll recommend the most suitable machine to you.
Wuhan Hans Goldensky Laser System Co., Ltd is subsidiary company of Han's Laser Technology Industry Group Co., Ltd, (stock code: 002008). We are high-tech enterprise specialized in R&D, manufacture and sales for complete equipment of high-power laser source, laser cutting, laser welding, laser fusion covering, laser heat-processing and high-speed laser punching machine. We also provide automatic processing solving plans.
Company has been successively undertaken the national development and reform commission (NDRC) national high-tech industrialization demonstration projects, the top ten key projects in Hubei province, Wuhan city top ten industrial projects of science and technology, and other government science and technology projects, including three products listed as a key project of national torch plan by the national ministry of science and technology. We successively obtains the national innovation fund, the electronic information industry development fund and a number of special fund support of Hubei province and Wuhan city, to be listed as the key innovation enterprise in east lake development zone, the key support leading enterprise in "large-scale laser equipment system integration and the new type laser manufacturing field" in Wuhan's 11th five-year plan.
Most of the products of our company has fully independent intellectual property rights, widely used in steel metallurgy, petroleum, tobacco, automobile, machinery, aerospace, chemical, home appliances and other manufacturing industries. In the future, the company will continue to be based on innovation of new and high technology, using its own technology advantages to contribute to the industrialization development of laser processing complete equipment.
