| Prod Model: |
EP3000(1000W-6000W) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequncy: |
Low Frequency with Transfomrer |
| Function: |
with Charger |
| Protection: |
Overvoltage |
| Size: |
570*315*300 |
| DC Input Voltage: |
12V,24V,48V |
| Power Range: |
1kw to 12kw |
Product Description

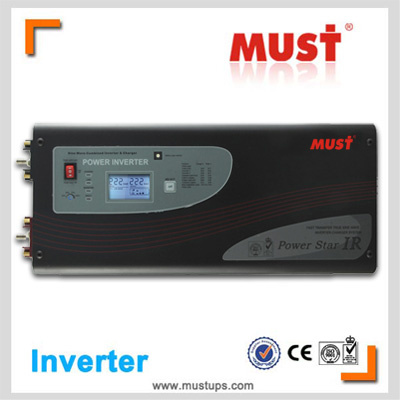

This inverter(1KW-6KW), 12V/24V/48V optional
With max 70A charge current, built in transfomrer and charger.
With pure sine wave output, and pure copper DC terminal port, to protect rust, more workable for critical environment.
This inverter with durable construction for long life under extreme environmental conditions
Low idle current (less than 1 watt) conserves energy when no loads are present
Soft start capability for starting heavy loads
This inverter built-in starting control circuits for two- and three-wire generator starting systems
Simplified controls with a snap-on cover that protects settings from being accidentally changed
This inverter with better thermal performance allows full output power to 50° C (122° F) without de-rating
This home inverter with high surge capacity starts more difficult loads and handles overload conditions reliably
Durable powder coated, corrosion resistant steel chassis
New digital display shows kilowatts (kW) when inverting and AMPS (A) when charging, plus incorporates a robust ON/OFF switch and status indicators
Home inverter with 70-AMP automatic three-stage battery charger (bulk, absorption, and float) and battery equalization with remote temperature sensor for increased performance
New power factor corrected (PFC) charging, combined with a more sophisticated multi-stage battery charging algorithm, reduces electricity draw and generator run-time.
It's hot sale during all home inverter series, this home inverter with 12V/24V/48V model selectable, and very popular to overseas customers.
(EP3000) | HV Model |
| 1012E | 1024E | 2012E | 2024E | 3024E | 4048E | 5048E | 6048E |
| Line Mode Specifications: |
| Input Voltage Waveform | Sinusoidal (utility or generator) |
| Nominal Input Voltage | 230Vac(120VAC selectable) |
| Low Line Disconnect | 184Vac±4% |
| Low Line Re-connect | 194Vac ±4% |
| High Line Disconnect | 265Vac±4% |
| High Line Re-connect | 255Vac±4% |
| Max AC Input Voltage | 270Vrms |
| Nominal Input Frequency | 50Hz/ 60Hz (Auto detection) |
| Low Line Frequency Re-connect | 58+0.3Hz for 60Hz;48+0.3Hz for 50Hz; |
| Low Line Frequency Disconnect | 57+0.3Hz for 60Hz;47+0.3Hz for 50Hz; |
| High Line Frequency Re-connect | 64+0.3Hz for 60Hz;54+0.3Hz for 50Hz; |
| High Line Frequency Disconnect |
65+0.3Hz for 60Hz;55+0.3Hz for 50Hz; |
| Output Voltage Waveform | As same as Input Waveform |
| Over-Load Protection(SMPSload) | Circuit breaker |
| Output Short Circuit Protection | Circuit breaker |
| Efficiency (Line Mode) | >95% |
| Transfer Switch Rating | 30A |
| Transfer Time (Ac to Dc) | 10ms (typical) |
| Transfer Time (Dc to Ac) | 10ms (typical) |
| Pass through without Battery | Yes |
| Max Bypass Overload Current | 30A |
| Invert Mode Specifications: |
| Output Voltage Waveform | Sine wave |
| Rated Output Power (VA) | 1000 | 2000 | 3000 | 4000 | 5000 | 6000 |
| Rated Output Power (W) | 1000 | 2000 | 3000 | 4000 | 5000 | 6000 |
| Power Factor | 0~1.0 |
| Nominal Output Voltage (V) | 230Vac |
| Nominal Output Frequency (Hz) | 50Hz ± 0.3Hz |
| Auto tracking Main Frequency(Hz) | Yes (Following Main first connection)50Hz @48-54Hz ;60Hz @58-64Hz |
| Output Voltage Regulation | ±10% rms |
| Nominal Efficiency | >80% |
Over-Load Protection
(SMPS load) | (110% 150% ±10%: Fault (shutdown output) after 20s; |
|
| Surge rating (10s) | 3000VA | 6000VA | 9000VA | 12000VA | 15000 VA | 18000VA |
| Capable of starting electric motor | 1 HP | 1 HP | 2 HP | 3 HP |
| Output Short Circuit Protection | Current limit (Fault after 10s) |
| Bypass Breaker Size | 30A | 30A | 30A | 35A | 50A |
| Nominal DC Input Voltage | 12V | 24V | 12V | 24V | 24V | 48V | 48V |
| Min DC start voltage | 10V/20V/40V |
| Low Battery Alarm | 10.5Vdc ± 0.3Vdc for 12V battery;21.0Vdc ± 0.6Vdc for 24V battery;42.0Vdc ± 0.6Vdc for 48V battery |
| Low DC input Shut-down | 10.0Vdc ± 0.3Vdc for 12V battery;20.0vdc± 0.6Vdc for 24V battery;40.0Vdc± 0.6Vdc for 48V battery |
| High DC input Alarm & Fault | 16Vdc ± 0.3Vdc for 12V battery;32Vdc ± 0.6Vdc for 24V battery; 64Vdc ± 0.6Vdc for 48V battery |
| High DC input Recovery | 15.5Vdc ± 0.3Vdc for 12V battery;31.0Vdc ± 0.6Vdc for 24V battery; 62.0Vdc ± 0.6Vdc for 48V battery |
| Power saver | Load ≤25W (Enabled on "P/S auto" setting of Remote control) |
| Charge Mode Specifications: |
| Nominal Input Voltage | 230Vac |
| Input Voltage Range | 196~243Vac |
| Nominal Output Voltage | According to the battery type |
| Nominal Charge Current | 35A | 35A | 65A | 35A | 45A | 35A | 40A | 50A |
| Charge Current Regulation | ± 5Adc |
| Battery initial voltage | 0 -15.7 Vdc (can operate with 0V battery) |
| Charger Short Circuit Protection | Circuit breaker |
| Over Charge Protection | Bat. V ≥15.7Vdc/31.4Vdc,beeps 0.5s every 1s & fault after 60s |
| General Specifications |
| Safety Certification | CE |
| Safety Certification | FCC |
| Operating Temperature Range | 0°C to 40°C |
| Storage temperature | 15°C below zero to 60°C |
| Operation humidity | 5% to 95% |
| Audible Noise | 60dB max |
| Cooling | Forced air, variable speed fan |
| Size | 1012E/1024E/2012E/2024E/2048E/3012E/3024E/3048E:580X315X300MM
4048E/5048E//6048E:755X319X288MM |
Shenzhen Must Power Limited established in 2010, with the headquarter in Hongkong, which is a professional hi-tech enterprise specialized in UPS, Power Inverter, Solar Power, VRLA Battery development, manufacturing, sales and after-service.
Our comprehensive product lines include:
Off-line UPS, line interactive UPS, On-line UPS, Solar inverter, Power inverters, Stabilizers and Solar battery.
Most of products from MUST applied with CE, FCC certificates. The main markets are Ukraine, Russia, Vietnam, Thailand, Pakistan, India, etc. Must Power Limited is one of the authorized suppliers for China Citic Bank, Ministry of Information Industry of China, Ministry of Power Industry of China, Ministry of Transportations of China.

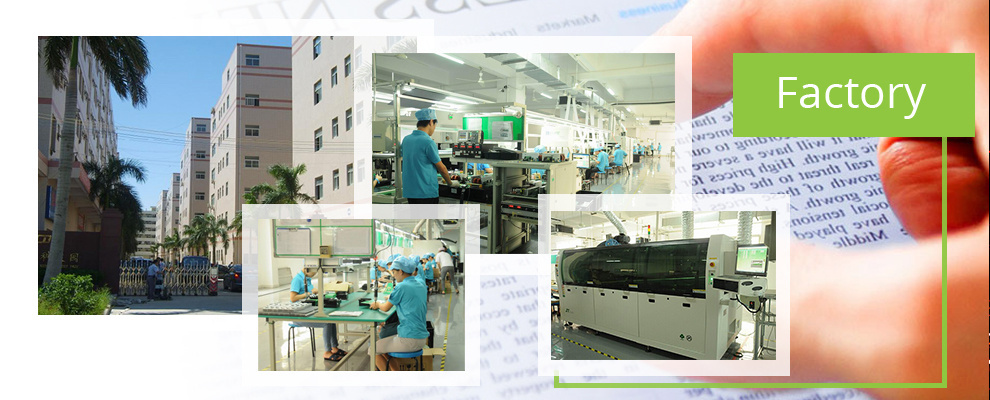

With an excellent R & D team formed by over 30 engineers and a skilled, dedicated workforce, together 10, 000 square meter in-house manufacturing facilities in Guangdong China, Shenzhen Must Power Limited has innovated, developed and improved the products to meet the demands of customers and keep pace with changing demands of the industries. With 'close to customer' notion, we have aligned most of its resources to support our Original Equipment Manufacturer (OEM) customers, and work with our customers as power partners. Our mission is to be the best supplier of power solutions, and to accomplish this, we will continue to tailor products for market needs while maintaining high quality, integrated customer service and prompt delivery.
