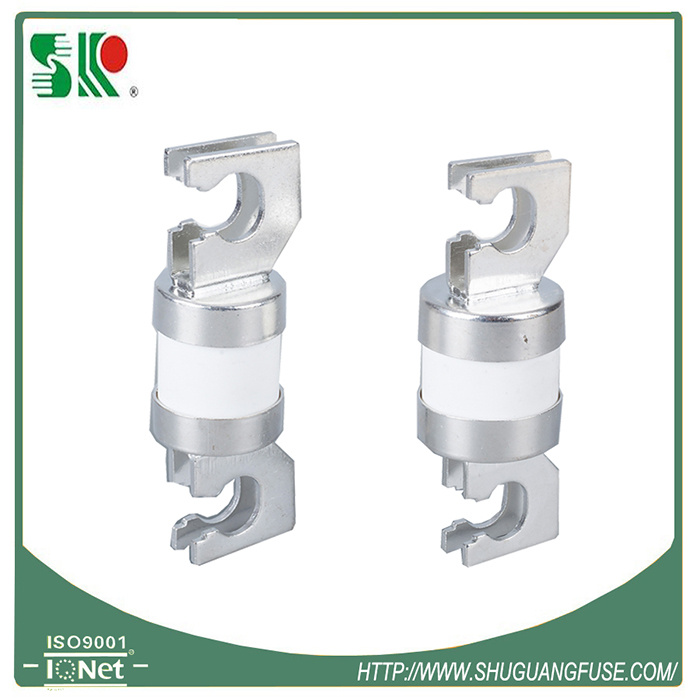

100A 125A 200A 400A LV HRC Fuse Link Wedge (JPU)

Name: 100A 125A 200A 400A LV HRC Fuse Link Wedge (JPU)
Brand: all-electronics-online.com
SKU: 835841305
Availability: InStock
Rating: 4.9 (109 reviews)

Price:	US $ 0.12-12/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	JPU
Delivery Time:	7-15days
Breaking Capacity:	Low
Type:	Current Fuse
Usaga:	Low Voltage
Shape:	Blot Connect
Standard:	IEC

Product Description

High Quality 200A 400A HRC Type Bolt Connected Fuse Link ( J type ) with Reasonable Price

Specification

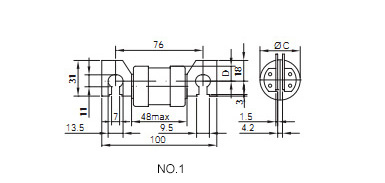

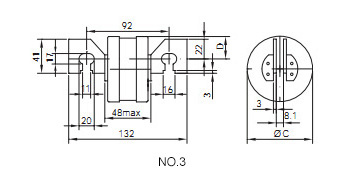

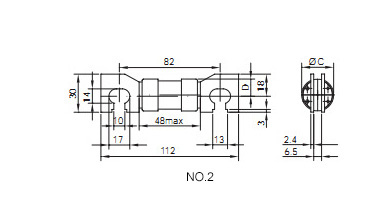

MODEL/SIZE	RATED VOLTAGE	RATED CURRENT	D	C	FIGURE
JHU31	415	63~160	11	31	1
JHU35	415	80~250	13	35
JHU41	415	125~315	12	41
JPU26	415	32~125	14	26	2
JPU31	415	63~160	16	31
JPU35	415	80~250	18	35
JPU41	415	125~400	18	41
JPU51	415	160~500	18	51
JPU61	415	225~630	27	61
JSU31	415	63~160	16	31	3
JSU35	415	80~250	17	35
JSU41	415	125~400	20	41
JSU51	415	160~500	20	51
JSU61	415	225~630	25	61
JSU73	415	315~800	25	73

Company Information

Wenzhou Shuguang Fuse Co.,ltd with ISO900 is one of the largest professional manufacturers in High voltage and Low-voltage
electrical appliances,especially specialized in different types of high & low voltage fuse, fuse cutout, arrester, insulator and so on.
With the long-term efforts of our whole employees,we have accumulated rich experience in design and production. We Beieve that
quality is the soul of an enterprise,so we always put quality as the first consideration.Professional technicists and experienced
staff make sure our quality is the best.

Trade Terms

1. Payment : Irrevocable L/C at sight or TT

2. Delivery time and method: Usually within 30 days

3. Port of loading: NINGBO, SHANGHAI (CHINA)

4. MOQ: 100PCS

5. Package: Standard export packing or as per your requirement.

Contact Us

Wenzhou Shuguang Fuse Co., Ltd is a manufacturer of electric appliances with well-equipped testing equipment and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in electrical industry and other industries.

Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.

We welcome new and old customers from all over world to contact us for future business relationships and achieving mutual success!
