| Prod Model: |
FOQ |
| Name: |
Automatic Transfer Switch Equipment |
| Function: |
on-off-on |
| Rated Current: |
100-3200A |
| Rated Voltage: |
750 1000V |
| Certificate: |
Ce |
| Color: |
Grey |
| Frequency: |
50Hz |
| Material: |
Plastic Copper |
| Operating Torque: |
6.5-27 |
| Mechanical Life: |
10000 |
Product Description

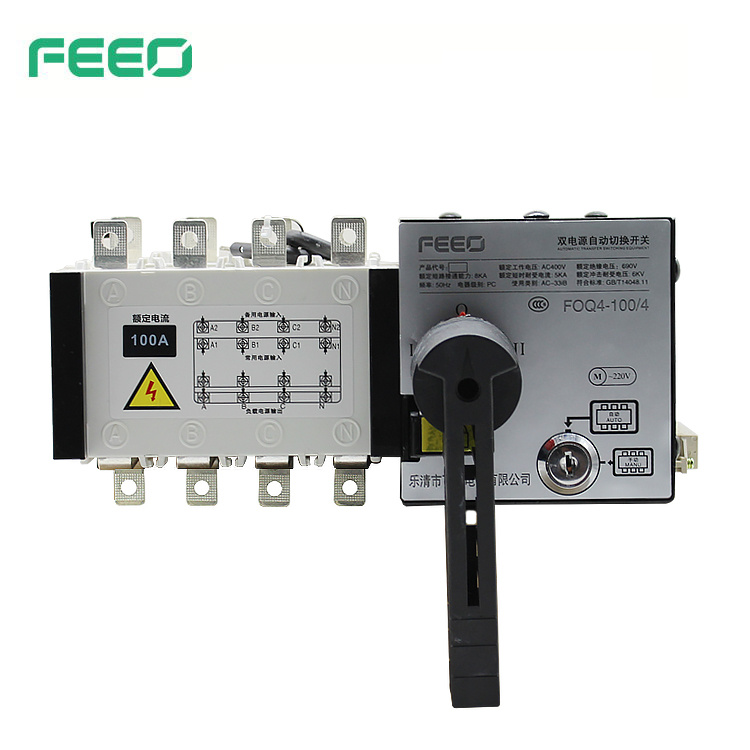

100A-3200A ATSE Dual Power Supply Automatic Transfer Switch Equipment Product Description
Automatic Transfer Switch Equipment Application:
Automatic transfer switch equipment (ATSE), is a device integrated with the switching function and logic control, truly perform electromechanical integration function, suitable for operating in the distribution system of AC50Hz, rated voltage AC400V, conventional thermal current up to 3200A in mineral and other enterprises. It provides the operation function of voltage detection, forcedly switching off "0" position, manual emergency operation and etc, widely used to shift between normal power and standby power or two loading equipment, or perform safe isolation and etc. the control circuit board will govern the motor through logic commands, then motor will drive the operating mechanism of main switches, quickly closing or opening or shift the lines, the safe isolation of main switch is obvious and legible by eye.Automatic Transfer Switch Equipment Parameters:| Rated heating current(A) | 100 | 160 | 250 | 400 | 630 | 1000 | 1250 | 1600 | 2000 | 2500 | 3200 |
| Rated insulation voltage | 750V | | 1000V |
| Rated impact withstand voltage | 8KV | | 12KV |
Rated working
current(A) | AC-31A | 100 | 160 | 250 | 400 | 630 | 1000 | 1250 | 1600 | 2000 | 2500 | 3200 |
| AC-35A | 100 | 160 | 250 | 400 | 630 | 1000 | 1250 | 1600 | 2000 | 2500 | 3200 |
| AC-33A | 100 | 160 | 250 | 400 | 630 | 1000 | 1250 | 1600 | 2000 | 2500 | 3200 |
| Rated short-time withstand current | 7KA | 9KA | 13KA | | 50KA | | | 55KA |
| Rated limit short-circuit current | 100KA | 70KA | 100KA | 120KA | 80KA |
| Control supply voltage | DC24V, 48V, 110V, AC220V |
| Convenrsion time | 0.5 | 1 | 1.1 | 1.2 | 1.25 | 2.45 |
Packaging & ShippingAutomatic Transfer Switch Equipment Package:Standard export carton packing Automatic Transfer Switch Equipment Delivery Time:
3-15 days after confirming order,detail delivery date should be decided according to production season and order quantity.
Automatic Transfer Switch Equipment Shipping:
1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
YUEQING FEEO ELECTRIC CO.,LTD.
is one of the leading manufactures and exporters in the field of solar PV products withmanufacturing facilities in Mainland China. We are specialized of DC MCB, DC SPD, DC FUSE, DC ISOLATOR, MC4.
FAQ
Q: If I'm interested in your ATSE when I can receive your quotation and detail information after send the enquiry?
A:All your enquiry will be replied in 24hours.
Q:Can I get a sample before the order because I really don't how is your ATSE quality?
A:Of course!We also think sample order is the best way to build the trust.And in our company we offer free sample service!Please send the enquiry to us and get the free sample!
Q:How's the delivery?Because I really need them is urgently?
A:For sample order 3~7days will be no problem.And for regular order we promise in 15days.
Q:How's the warranty period for your Load Isolation Switch?
A:We offer one year warranty for our customer.
