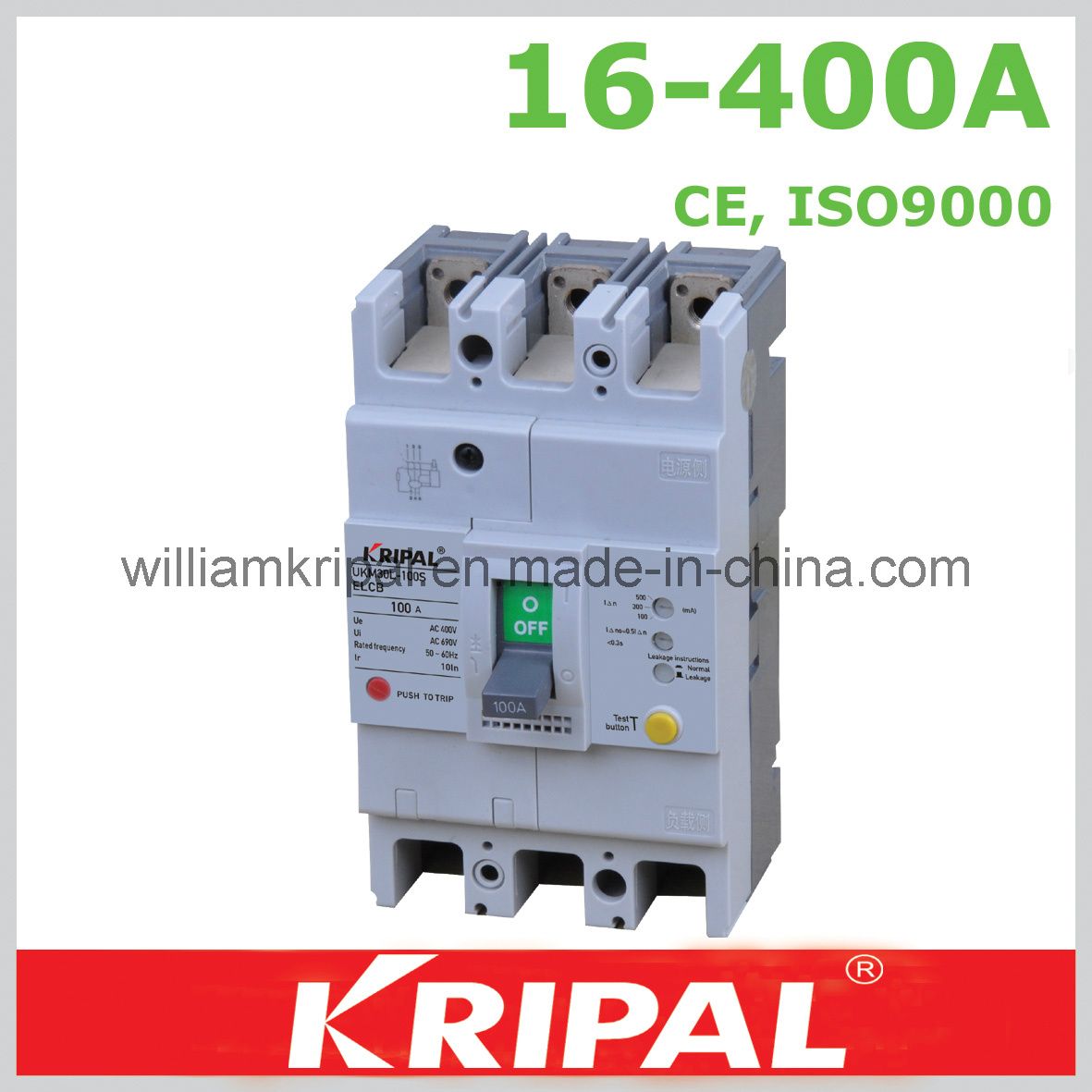

100A 3p Earth Leakage Breaker

Prod Model:	UKM30L-100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Samples:	Provided
Arc-extinguishing Medium:	Air
Structure:	ELCB
Breaking Capacity:	Low Voltage Circuit Breakers
Certification:	CCC
Operation:	Manual Type
Installation:	Fixed
Speed:	High-Speed Circuit Breaker

Product Description

Rated current In(A): 16A, 25A, 32A, 40A, 50A, 63A, 75A, 100A
Number of poles: 3, 4
Rated voltage Ue(V): AC690
Arc distance(mm): 0
Rated residual current: 30, 300, 500; Three postion adjustable


The Earth Leakage Breaker can operate at the following working conditions
A. Ambient air temperature no more than +40º C and no less than -5º C
B. Altitude no more than 2000m
C. The relative air humidity is no more than 50% in the max. Temperature of +40º C. The higher relative humidity is allowable at the lower temperature. The min. Monthly means at the most moist month be no more than +25º C. The max. Monthly means relative humidity at the most moisr month be no more
Than 90%.
D. Pollution degree: GradeIII. There is no explosion factor, corrosive metal and the gas destroying the insulation and the electric dust full of the ambient atmosphere. E. Installation type: III
F. The terminals of" 1, 3, 5, N1" s to connect to the power supply and the terminals of"2, 4, 6, N2"s to connect to the negetive load.
