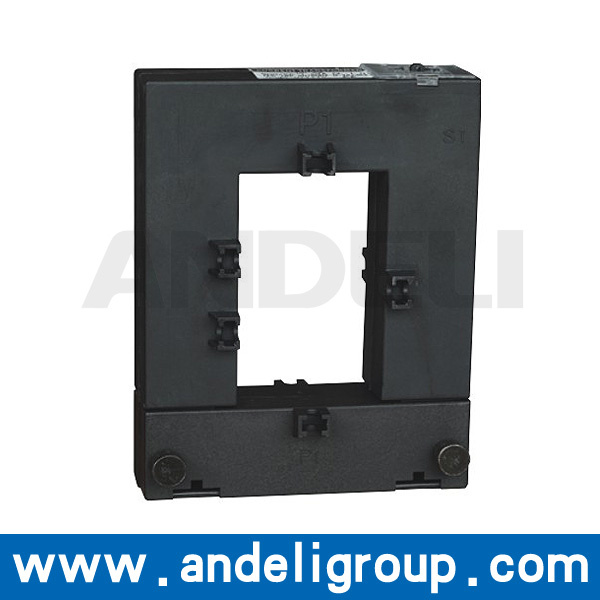

100A-5000A Low Cost Current Transformers (DP)

Name: 100A-5000A Low Cost Current Transformers (DP)
Brand: all-electronics-online.com
SKU: 615253004
Availability: InStock
Rating: 4.3 (71 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DP
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Current Transformer
Phase:	Single
Application:	Instrument

Product Description

Why choose us?

1.20 years - Andeli Group Co., Ltd is founded in 1993.
2.12 share holding companies - Andeli have owns 12 share holding companies in Shanghai, Hunan, Zhejiang, UAE.
3.300 cooperating companies - We have over 300 cooperating companies.
4.3000 workers - We have over 3000 workers.
5. USD150, 000, 000 - The total assets is USD150, 000, 000.
6.235, 000 square meters - The area of Andeli is 235, 000 square meters.
7. Certification - We have passed ISO9001: 2000 Quality Management System and CCC, ROHS, CE, CB, SIMKO, KEMA...

Application

The dp series of current transformers have been especially designed to facilitate their installation in new or already existing networks. They may be installed without opening any cable or bus bar circuit.

The connection of conventional cts usually requires the interruption of the primary side circuit to pass cables or bus bars through the transformer core or to connect such cables to the primary terminals. The dp series transformers core may be easily opened and they may be installed and connected without any supply interruption, thus saving time and installation costs.

The main features of dp transformers are:
Small size and easy mounting.
Wide inner window, allowing clamping of big cables or bus bars.
Wide range of sizes to accomodate all the existing installations.
High accuracy and reliability.

Model	A	B	C	D	E	F	G	H	I	Weight(kg)
DP-23	20	30	51	89	111	34	47	40	32	0.75
DP-58	50	80	78	114	145	32	32	32	33	0.90
DP-88	80	80	108	144	145	32	32	32	33	1.05
DP-812	80	120	108	144	185	32	32	32	33	1.25
DP-816	80	160	120	184	245	52	52	52	38	4.3

Model	Nominal current ratio
		Class: 0.5
		VA
DP-23	100	-
	150	-
	200	-
	250	-
	300	1.5
	400	2.5
DP-58	250	1.5
	300	1.5
	400	1.5
	500	2.5
	600	2.5
	750	2.5
	800	2.5
	1000	5
DP-88	250	1.5
	300	1.5
	400	1.5
	500	2.5
	600	2.5
	750	2.5
	800	2.5
	1000	5
DP-812	500	2.5
	600	2.5
	750	2.5
	800	2.5
	1000	6
	1200	6
	1250	7.5
	1500	7.5
DP-816	1000	1.
	1500	15
	2000	15
	2500	15
	3000	20
	4000	20
	5000	20
