100A Clamp-on Current Transformer Complies with Ce Standards and Meets 300V Cat III Safety Class
| Price: |
US $ 60-80/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
CY-QCT 02-15-003 |
| Frequency: |
45-66Hz |
| Insulation Class: |
Cat III |
| Customized: |
Customized |
| Operation: |
Easy |
| Accuracy: |
High |
| Rated Primary Current: |
5A AC /100A AC |
| Output Voltage: |
10mv AC/a /1mv AC/a |
| Clamp-on Current Transformer: |
Clamp-on Current Transformers |
| Application: |
Rectifier |
| Phase: |
Single |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Multi-winding Transformer |
| Brand: |
Chuangyin |
Product Description
The "QCT02-15 Clamp-on Current Transformer" is designed for easy installed in tight spaces
and without the need for dismantling the primary busbar or cables. The sensing head uses
sliding push-fit clamp structure, safety isolation to avoid the user to contact with charged
objects directly. It complies with CE standards and meets 300V CAT III safety class.
Features:
Flexible and light weights, exquisite appearance
Easy &quick installation in tight spaces
Excellent linearity
Maximum measuring current up to 130A
Applications:
Power quality monitoring
CT secondary current detection
Smart logger
Distributed measurement systems
General data:
Operating temperature&humidity: 0 to 500C(321220F),580%RH(No condensate)
Storage temperature&humidity:10 to 600C(141400F), X80%RH(No condensate)
Operating environment: Indoor, altitude up to 2000 meters
Standards Safety: IEC61010-1:2001,300V CAT III
Electrical parameter:

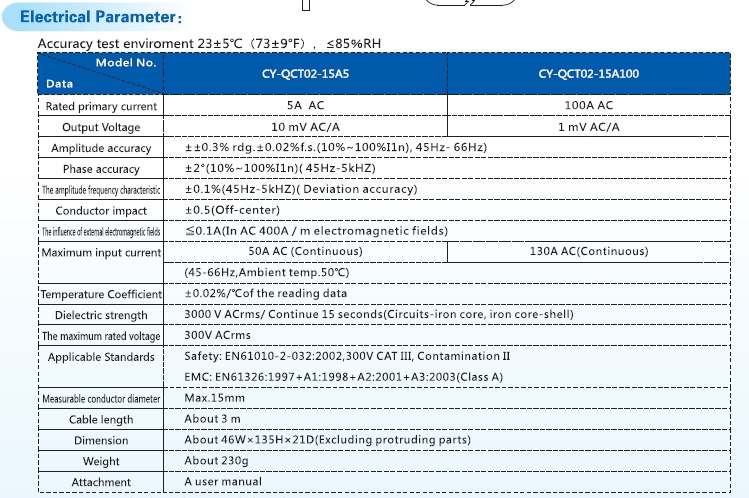

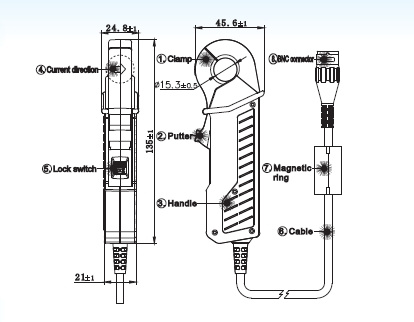

Model Date | CY-QCT02-15A5 | CY-QCT02-15A100 |
Rated primary current | 5A AC | 100A AC |
Output Voltage | 10Mv AC/A | 1Mv AC/A |
Amplitude accuracy | ±0.3%rdg. ±0.02%f.s(10%-100%11n),(45Hz-66Hz) |
Phase accuracy | ±2º(10%-100%11n)(45Hz-5kHz) |
The amplitude frequency characteristic | ±0.1%(45Hz-5kHz)(45Hz-5kHz) |
Condutor impace | ±0.5(off-center) |
Maximum input current | ≤0.1A(In AC 400A/m electromagnetic fields) |
Temperature Coefficient | ±0.02%/º C of the reading data |
Dielectric strength | 300V ACrms/Continue 15seconds (Circuits-iron,iron core -shell) |
The maximum rated voltage | 300V ACrms |
Application Standards | Safety: EN61010-2-032:2002,300V CAT III, Contamination II EMC:EN61326:1997+A1:1998+A2:2001+A3:2003(ClassA) |
Measurable conductor diameter | Max.15mm |
Cable length | About 3m |
Dimension | About 46w *135H*21D(Excluding protruding parts) |
Weigth | About 230g |
Attachment | A user manual |
F.S.:Maxmum display value or scale length
Rdg:Reading value (the value of the current beingmeasuring and displayed in the Measurement Products)

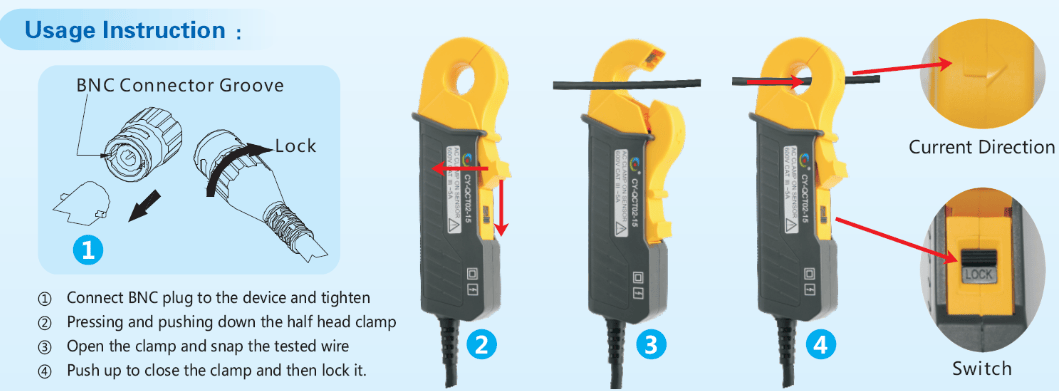

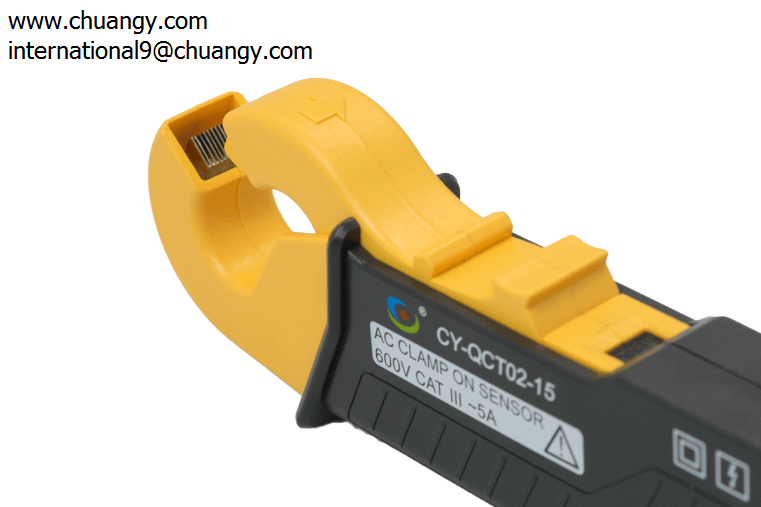

Usage instruction:
1. Connect BNC plug to the device and tighten
2. Pressing and pushing down the half head clamp
3. Open the clamp and snap the tested wire
4. Push up to close the clamp and then lock it
Note: Upon request we are glad to offer transformers according to other technical specs.
Note:
Please browse our website and download product catalogue for detailed information.
