100A Europe High Quality AC Clamp Type Current Probe

Name: 100A Europe High Quality AC Clamp Type Current Probe
Brand: all-electronics-online.com
SKU: 688871482
Availability: InStock
Rating: 4.6 (142 reviews)

Price:	US $ 30/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Q20B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ratio:	1000: 1 or 2000:1, Customized
Nominal Input:	200A
Max. Cont. Input Current:	240A
Accuracy:	0.1 %, 0.2%, 0.5%
Output Signal:	200mA AC at Nominal Input Current
Frequency Range:	40 Hz....2000 Hz
Dielectric Strength:	3kv 50Hz/60Hz at 1 Minute
Temperature Range:	-20 °c...+55 °c
Output:	2.5 Meter Cable with D01 Connector
Types:	Clamp Type Current Probe
Type:	AC Clamp Type Current Probe
Material:	Permalloy
Application:	Instruments

Product Description

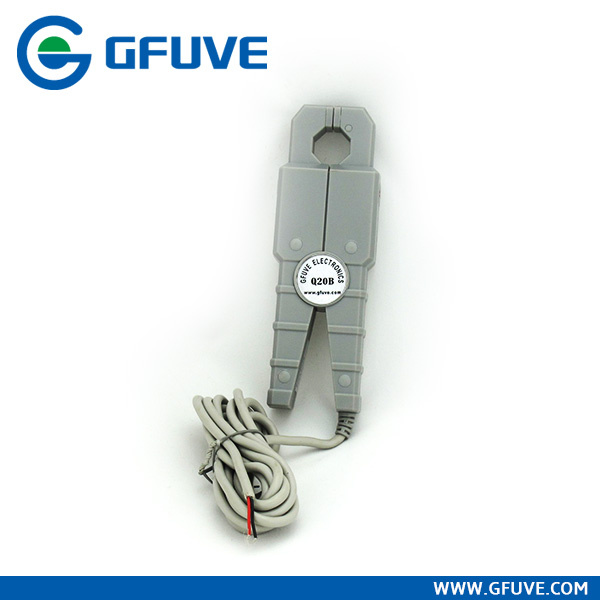

Q20B 100A Europe High Quality AC Clamp Type Current Probe
The model Q20B 100A Europe High Quality AC Clamp Type Current Probe are best-in-class devices for use with power meters, power analyzers and high performance oscilloscopes.
Q20B AC Clamp Type Current Probe is according to Europe standard EN 61010-1 and EN 61010-2-032. it is suite for enerngy meter cablibrator, power quality analyzer and all current measurement instruments.
Applications
Power quality measuring
Large industrial loads
HVAC
Measuring around cable bundles
Power load monitoring
Waveform analysis
Features
Measurement range of 1mA to 200A AC
Small, compact size
Improved ergonomic design and easy operation
Conforms to EN 61010, 600V CAT III
Low phase shift for power measurement
Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters
With load capacity≤ 4
Output model: Lead output(2.5m)
PARAMETERS

Electrical parameters
Ratio	1000: 1 or 2000:1 (customized)
Accuracy class	0.1%, 0.2%, 0.5%
Primary current	0 - 200A AC
Secondary current	0 - 200mA AC (customized)
Max. Cont. Input current	240A
Over voltage category	CAT III 600V
Output signal	200mA AC at nominal input current
Frequency range	40Hz-2000Hz
Dielectric strength	3KV 50Hz/60Hz at 1 minute
Temperature range	-20°C to +55°C
Output	2.5 meter cable with D01 connector
Max. voltage not insulated conductors	600 V
Standard	EN 61010-1, EN 61010-2-032
Installation	clamp type
Output mode	lead output(2.5m)
Mechanical parameters
Dimensions (L x W x H) (mm)	56 x 168 x 27
Weight (g)	350
Holding wire diameter (mm)	φ20
Max. jaw opening (mm)	20
