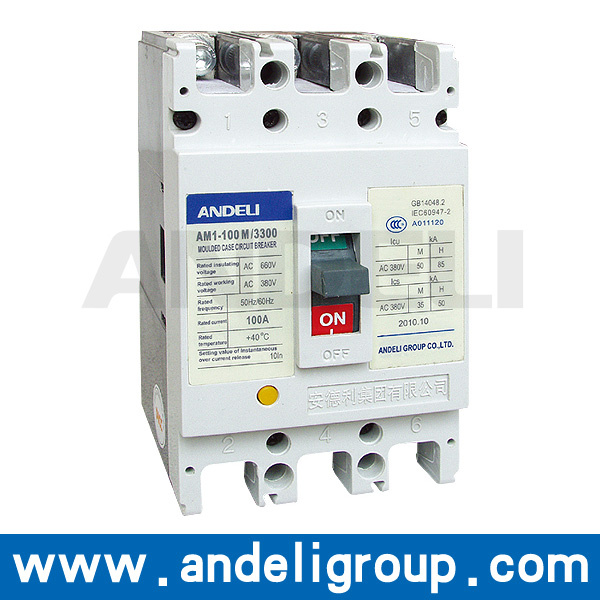

100AMP MCCB Moulded Case Circuit Breakers (AM1)

Name: 100AMP MCCB Moulded Case Circuit Breakers (AM1)
Brand: all-electronics-online.com
SKU: 684767535
Availability: InStock
Rating: 5 (141 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	AM1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Polenum-Ber:	3, 4
Ratedin Suiating Voltage(V):	500V, 800V
Rated Operating Voltage(V):	400V
Arc-extinguishing Medium:	Air
Breaking Capacity:	Low Voltage Circuit Breakers
Certification:	CCC
Operation:	Manual Type
Installation:	Fixed
Speed:	High-Speed Circuit Breaker
Structure:	Moulded Case Circuit Breaker
Poles Number:	3, 4

Product Description

Application

AM1 series moulded case circuit breaker is one of products developed and manufactured by adopting international advanced technology. It is supplied with rated insulating voltage 550 and 800V and used for circuit of AC 50/60Hz, rated operating voltage AC 400V (or below), rated operating current up to 1600A for infrequent changing over and starting of the motors. The products conforms to IEC60947-2 standard.

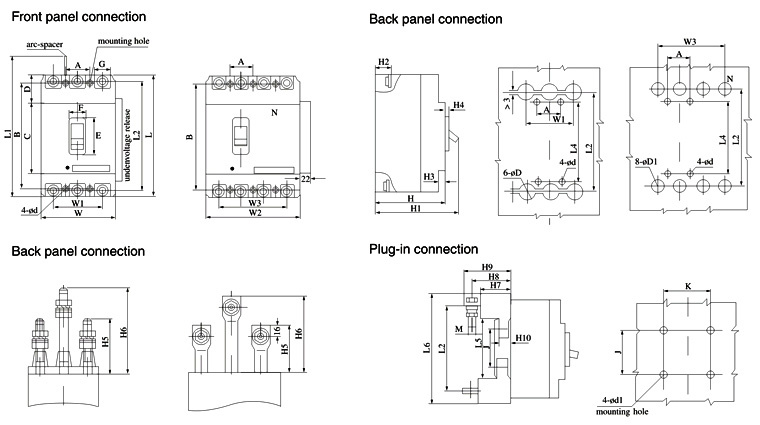

Outline and Installation dimension

About us

Type	Rated current (A)	Polenum-ber	Ratedinsui-atingvolt-age(V)	Rated operat-ingvolt-age(V)	Arcing- over distance (mm)	Ultimate short circuit breaking capacity (KA)	Servies short circuit breaking capacity (KA)	Operation perform- ance		Utiliza-tioncat-egory
Type	Rated current (A)	Polenum-ber	Ratedinsui-atingvolt-age(V)	Rated operat-ingvolt-age(V)	Arcing- over distance (mm)	Ultimate short circuit breaking capacity (KA)	Servies short circuit breaking capacity (KA)	Load	Unload	Utiliza-tioncat-egory
AM1-63L	(6), 10 16, 20 25, 32 40, 50 63	3, 4	500V	400V	0	25	18	1500	8500	A
AM1-63M	(6), 10 16, 20 25, 32 40, 50 63		500V		0	50	35
AM1-100L	(10), 16 20, 25 32, 40 50, 63 80, 100		800V		0(≤ 50)	35	22
AM1-100M					0(≤ 50)	50	35
AM1-100H					0(≤ 50)	85	50	1000	7000
AM1-225L	100, 125 160, 180 200, 225				≤ 50	35	22
AM1-225M					≤ 50	50	35
AM1-225H					≤ 50	85	50	1000	4000
AM1-400L	225, 250 315, 350 400				≤ 50	50	35
AM1-400M	225, 250 315, 350 400				≤ 100	65	42
AM1-630L	400, 500 630				≤ 100	50	35
AM1-630M					≤ 100	65	42
AM1-630H					≤ 100	100	65
AM1-800M	630, 700 800	3			≤ 100	75	50
AM1-800H	630, 700 800				≤ 100	100	65
AM1-1250M	1000, 1250				≤ 100	100	65
AM1-1250H	1000, 1250				≤ 100	125	75
AM1-1600M	1600				≤ 100	150	80

Established in 1993, ANDELI Group Co., Ltd. is a specialized manufacturer of low voltage electrical equipment. ANDELI Group owns 12 share-holding companies in Shanghai, Hunan, Zhejiang, UAE and over 300 member enterprises. "ANDELI" trademark is identified as one of the Chinese well-known trademarks. ANDELI Group ranks among top 500 in electric industry in China and our products are granted the title of the national products exempt from inspection.

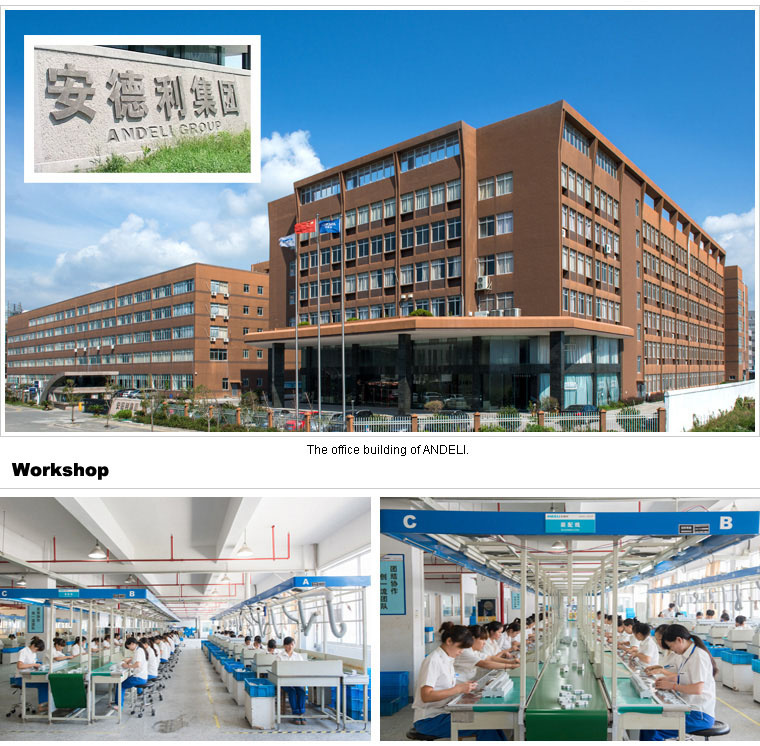

With a workshop covering more than 27, 000 square meters, we are able to supply various circuit breaker, MCB, MCCB, RCCB, contactors, relays, fuse, transformer, voltage stabilizer, switching power supply, meters, solar products, welder and other electric products.

Moreover, with over 60 series and more than 2, 000 specifications, the annual output volume has reached USD24, 000, 000 in 2013. ANDELI regards quality of products as life. Our company is certified with ISO9001 and we have obtained CCC (China Compulsory Certification), RoHS, CCEE, CE, CB, SIMKO and KEMA certificates.

Through outstanding performance and excellent reputation, ANDELI has won many national awards and been recognized as one of the distinguished brand name in its local market. In the future, ANDELI will continue ensuring that our products meet the expectation of our customers with respect to product quality, and pursuing advance to integrative value of enterprise and sustainable growth.

Providing quality products, excellent service, competitive price and prompt delivery, we are now looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more details.
