100dB Wireless Distance Ultrasonic Sensor

Name: 100dB Wireless Distance Ultrasonic Sensor
Brand: all-electronics-online.com
SKU: 835376905
Availability: InStock
Rating: 4.3 (23 reviews)

Price:	US $ 0.2-0.5/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MSO-A2540H14TR
Name:	100dB Wireless Distance Ultrasonic Sensor
Spl:	100dB Min Ultrasonic Depth Sensor
Receiving Sensitivity:	≥230mv Ultrasonic Depth Sensor
Echo Sensitivity:	2100±20%PF Sensor Drone
Ringing(Ms):	1.2 Max
Capacitance At:	1kHz±20% 2400PF Ultrasonic Depth Sensor
Decay Time:	≤1.2ms Ultrasonic Depth Sensor
RoHS:	Yes
Price:	Cheap

Product Description

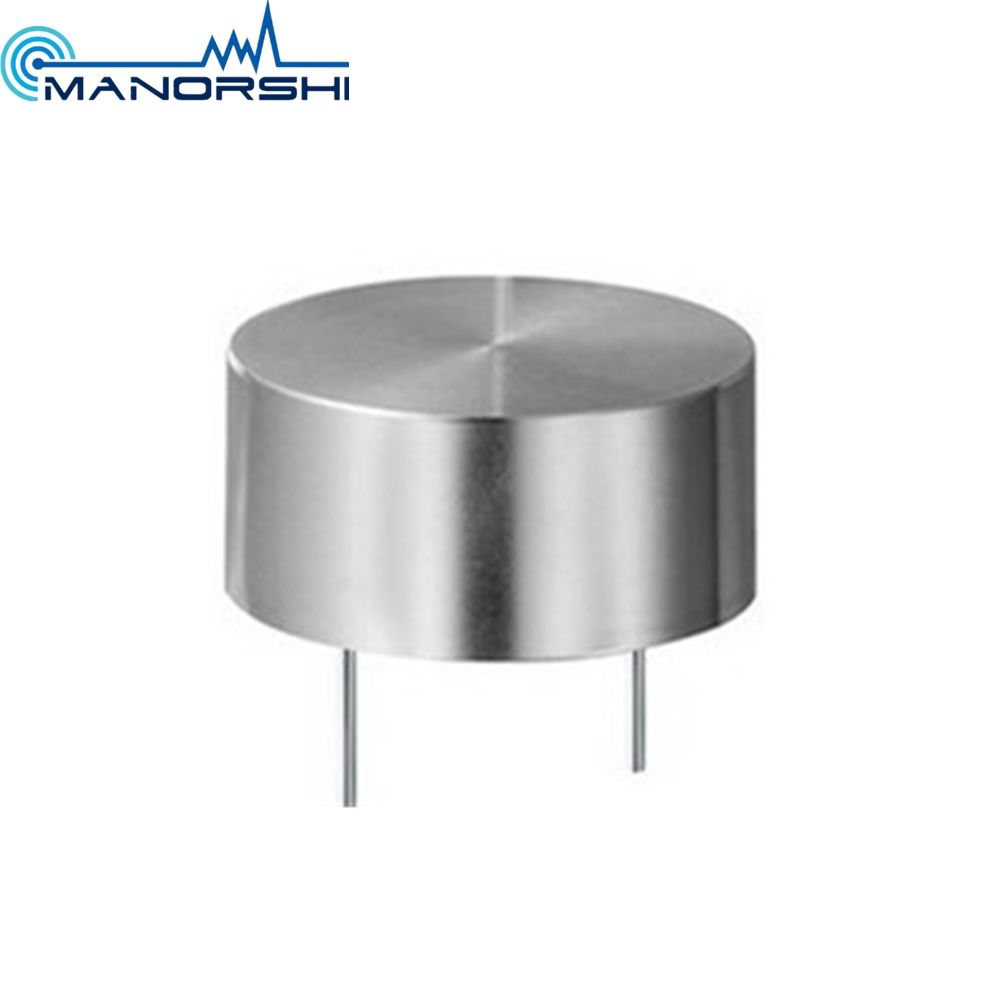

100db wireless distance ultrasonic sensor

Specification

Center frequency	40±1.0KHz
Transmitting Sound Pressure Level	100dB min.
Receiving Sensitivity	-72dB min.
Echo Sensitivity	≥230mV
Ringing(ms)	1.2 max
Capacitance at	1Khz±20% 2400pF
Max.Driving Voltage(cont.)	20Vrms
Total Beam Angle	-6dB 47° typical
Decay Time	≤1.2ms
Operating Temperature	-30~+80ºC
Storage Temperature	-30~+80ºC

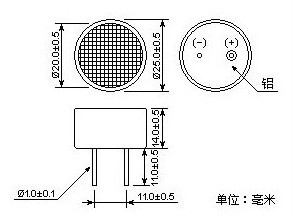

Dimension

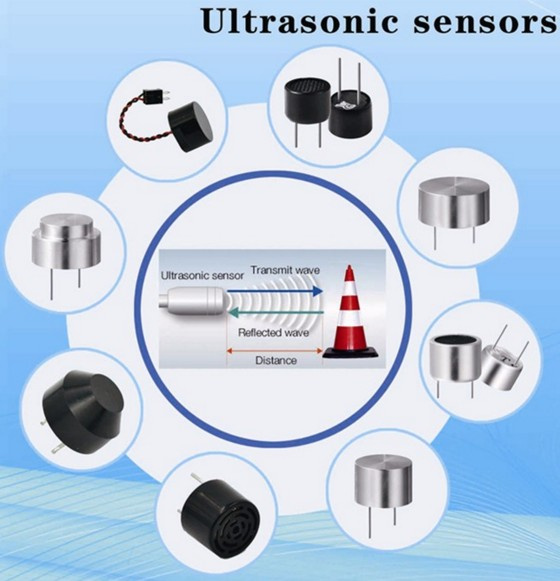

Application


Why choose us




About us
We well understand your demand of good quality, competitive prices, scheduled delivery, swift,well communication,OEM & ODM and afte-sale service . This is our advantage!

Many things to be considered and discussed before a product come into mass production. We help you to ' Print Your Idea '.
Trade show & Certification

FAQ

1.What's your MOQ?

MOQ depends of different series of products, pls contact with us.

2.Do you support OEM and ODM services?

Yes, we can customize products according to the drawing.

3.How about freight fee?

We cooperate with different express companies, enjoy the lowest discount.

4.Do you support after sales service?

The professional after-sales service team will solve all problems for you.

Manorshi Electronics Co., Ltd. is a professional manufacturers of acoustic components in China. We can supply all kinds of acoustic and security components such as Piezo Ceramic Elements, Piezo Buzzers, Magnetic Buzzers, SMD buzzers, Mechanical buzzers, Sound Alarms, We also make Ultrasonic sensors, Distance measuring sensors, Which have Water proof type and Open type, And other related products such as Speakers.

Our products are widely used in electric appliances, computers, cordless phones, alarm systems and parking systems. Backed by professional engineers and advanced equipment, we assure the best quality products, competitive prices, and fast delivery.

If you have any enquiry about our products, Pls contact us now.
