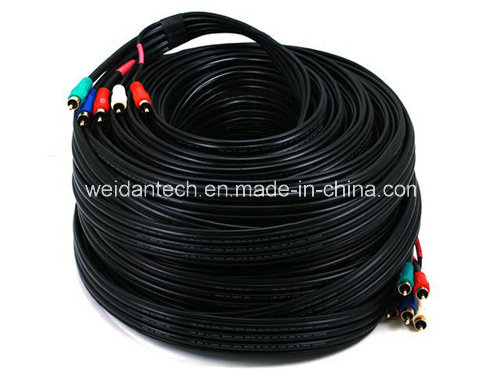

100FT High Quality 5RCA Component RCA Cable
| Price: |
US $ 5/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
RCA-20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Conductor: |
Pure Copper or CCS |
| RCA Moulding Color: |
RGB+ White+Red |
| Application: |
Game Player |
| Color: |
Black |
| Connector: |
RCA |
| Certification: |
CCS |
| Type: |
Twin Spiral Cable+ Coaxial |
Product Description
HDTV Video Audio 5RCA Plugs Components RCA AV Gold plated HD Cable, 100ft
This component cable set is composed of three highly shielded RG59 coaxial video cables and two audio cables joined together, which may be separated if desired. This cable set is used to connect two devices which use component video (Y-Pb-Pr or Y-CB-Cr) or RGB through RCA jacks. By combining the video and audio cables into one set of cables, it eliminates the need for additional audio cables. It provides High-Definition video signal transfer between DVD players, HD cable boxes, satellite boxes and high end TVs or monitors for optimum picture resolution and color. Precision 75-Ohm Impedance for Maximum Signal Transfer. - Extended 1GHz Bandwidth EMI-RFI Protected Double High-Density Shield. 100% 0.12mm Aluminum-Polyester Foil Shield. Ultra Flexible Satin-PVC Jacket. Low-Attenuation Foamed Cellular Dielectric. 24K Gold Plated Heavy Duty RCA Connectors. Color Coded - Fully Molded Construction.
Specifications:
Color: White
Connectors Type: RCA Gold Plated
Setup: RGB + Audio
Length: 100ft Meters.
75Ohm Nominal Impedance
82% Nominal Velocity of Propagation
16.2pF/ft Nominal Capacitance
10.5Ohm/kft Conductor DC Resistance
2.7Ohm/kft Shield DC Resistance
20dB (10~300MHz) Structural Return Loss
100% Sweep Tested
4000 VAC SP Test
2000 VDC Conductor to Shield Dielectric Strength
| Certificate | Rohs, CE, ISO9001:2008 |
