100G 24 Cores OM3 MTP Male Fiber Optic Trunk Cables

Prod Model:	PN24MTPMTPOM3002
Color:	Aqua
Connector:	Usconec MTP
Fiber Type:	Corning Om3
Weight:	0.27g
Cable Diameter:	0.9mm,1.6mm,1.8mm,2.0mm,2.4mm,2.8mm,3.0mm
Connector Type:	2 to 24 Core
Length:	0.5m, 1m,2m or Customized
Application:	Communication
Type:	Multi-mode Fiber
Certification:	ISO9001
Connection Structure:	MTP-MTP
Brand:	Puno
Sheath Material:	LSZH/PVC

Product Description

100G 24 Cores OM3 MTP Male Fiber Optic Trunk Cables

Description:
MTP® (Mechanical Transfer Pull Off) is USCONEC's trade name for their own superior style of MPO connector. The MTP® connector is a high performance MPO connector with multiple engineered product enhancements to improve optical and mechanical performance when compared to generic MPO connectors. The MTP® connector is in complete compliance with all MPO connector standards including the EIA/TIA-604-5 and the IEC-61754-7. MTP® patch cord utilize precision molded MT ferrules, with metal guide pins and precise housing dimensions to ensure fiber alignment when mating. The MTP® can be mass terminated in combination of 4,8, 12 or 24 fibers. Trunk cables are an essential part of a data center's structured cabling connectivity solution.When compared to individual jumper cables, trunk cables significantly reduce the physical space and number of cables required. Trunk cables are available in custom configurations that include MTP®-MTP®, MTP®-Discrete, and Discrete-Discrete.

Features & Benefits:
√ Precision molded MT ferrule;
√ High precision guide pins for exact alignment;
√ Compact design, up to 4,8,12,24 fibers;
√ IEC 61754-7 Compliant;
√ EIA/TIA-604-5 Compliant.

Application:
√ Asynchronous Transmission Mode(ATM);
√ Gigabit Ethernet;
√ Active Deviced/Transceiver Interface;
√ CATV, Video and Multimedia;
√ Premise Installations;
√ Telecommunication Networks;
√ Parallel optical interconnect between PC Cards and patch panels;
√ Interconnection for O/E modules;
√ Industrial & Military;
√ Optical Switch interframe connections.

Specification:

Fiber	SM		MM
Connector	IL in dB at 1310	RL in dB at 1310	IL in dB at 850	RL in dB at 850
MTP/PC	/	/	≤0.35	≥35
MTP/APC	≤0.35	≥50	/	/

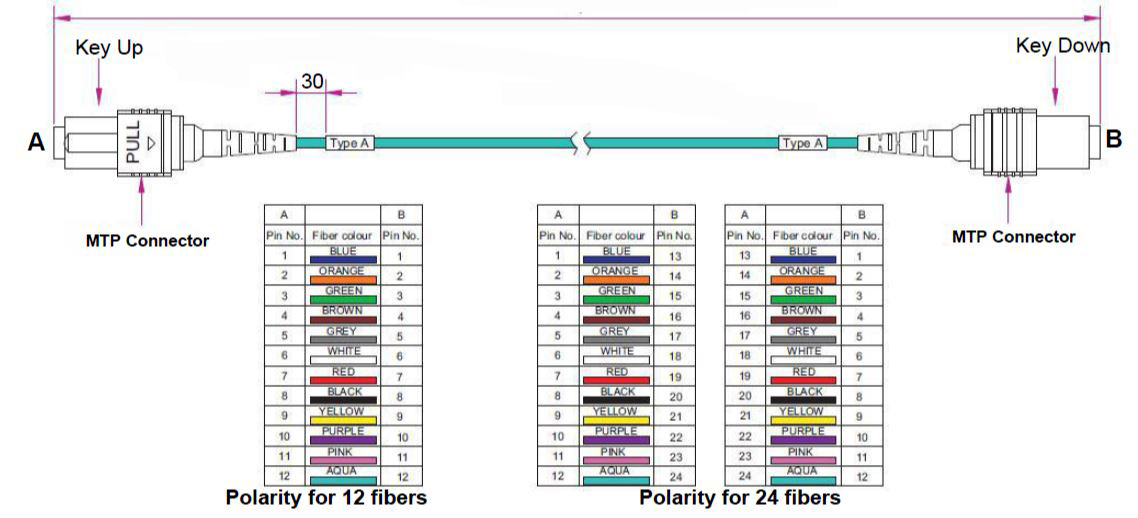

Drawing Configuration:
Polarity A:

Polarity B:

Polarity C:


Ordering Details:
