| Prod Model: |
PN-001 |
| Color: |
Aqua |
| Connector: |
MPO |
| Cable Diameter: |
3.0mm |
| Durability: |
1000 times |
| Fibre Mode: |
OM3 50/125um |
| Wavelength: |
850/1300nm |
| Mini Bend Radius: |
30mm |
| Application: |
Communication |
| Type: |
Multi-mode Fiber |
| Certification: |
ISO9001 |
| Connection Structure: |
MPO |
| Sheath Material: |
Plenum OFNP |
Product Description

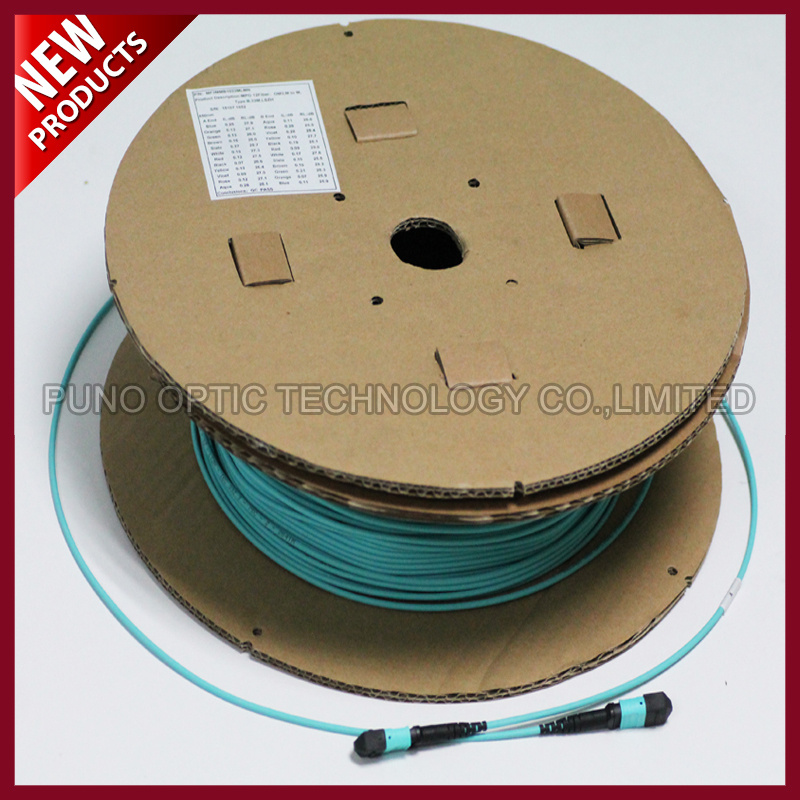

100G 24F Array Fiber Optic MPO OM3 Trunk Patch Cable
Technical Information:
PUNO's 24 fiber MPO Multimode patch cables are designed for data center solutions supporting the technologies as specified in the datacenter standards EN50173-5, ISO/IEC 24764 and TIA-942. The 24 fiber MPO patch cables support datacenter applications such as 10-40-100 Gigabit Ethernet, 4-8-16G Fibre Channel or InfiniBand. 24 fiber MPO female/female A (or C) wired patch cables are used to connect 12 fiber MPO cassettes. 12 fiber MPO female/female B wired patch cables are used as direct connect cables between 40/100GbE transceivers. MPO male/female patch patch cables enable a channel to be built with MPO female/female trunks and MPO coupler modules. When the MPO cable is connected with MPO, one of the MPO connectors must have pins. The 12 fiber MPO patch cables use 3.2mm round, indoor rated cable.
Benefits:
√ Pre-terminated low loss MPO patch cable;
√ OM3 OPTOBEND bend insensitive fiber glass in an LSZH round cable jacket;
√ Intermated MPO performance for OM3: Attenuation ≤0.5 dB(max.) and Return Loss ≥25 dB(min);
√ Available in single-mode (9/125μm),multi-mode (50 or 62.5/125μm)and 10Gig fiber;
√ Optional pulling eye design to fit for different installation environment.
General Connector Specification:
Other connectors' Industrial Standard:SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973;
LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973;
FC: EIA /TIA-604-04, FOCIS4, NTT-FC, GR-326. IEC61754-13 and JIS C5973;
ST: TIA/EIA, FOCIS2, GR-326. IEC61754-2 and JIS C5973 Etc.
Specifications and Dimensions: | Parameter | Single-mode | Multi-mode |
Basic | Fiber connector | FC, SC, LC, ST, MU, MTRJ, MPO |
| Ferrule End-face | PC | UPC | APC | UPC |
| Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.3dB | ≤0.3bB |
| Return Loss | ≥50dB | ≥55dB | ≥60dB | ≥35dB |
| Ceramic Ferrule Specification | 125.5um concentricity deviations:
<=1um | 127um concentricity deviations:<=3um |
| Suitable Fiber | 9/125um | 50/125um,62.5/125um |
End-face Geometry | Radius of Curvature | 7~25mm | 5~12mm | N/A |
| Fiber Protrusion | ≤50nm | ≤100nm | N/A |
| Fiber Under Cut | ≤100nm | ≤100nm | N/A |
| Apex offset | ≤50um |
| Mechanical | Exchangeability | ≤0.2dB |
| Salt Spray | ≤0.1dB |
| Drop | ≤0.2dB(1.5M, 5 drops) |
| Vibration | IL ≤0.2dB(550Hz, 1.5mm) |
| Repeatability | ≤ 0.1dB(1000 times) |
| Durability | > 1000 times |
| Operating Temperature | -40ºC ~ +85ºC |
The Basic Division of MTP® Connectors:
Type and Color
Code Connectors | Insertion
Loss (IL) | Optical
Return Loss (RL) | Operating
Temperature |
| Single-mode MTP® Elite® Connector | 0.10 dB Typical (All Fibers) 0.35 dB Maximum (Single Fiber)1 | > 60 dB (8°Angle Polished)2 | -40ºC to 75ºC |
| Single-mode MTP® Standard Connector | 0.25 dB Typical (All Fibers) 0.75 dB Maximum (Single Fiber)1 | > 60 dB (8°Angle Polished)2 | -40ºC to 75ºC |
| Multimode MTP® Standard Connector | 0.25 dB Typical (All Fibers) 0.75 dB Maximum (Single Fiber)1,3 | > 20 dB (0°Flat Polished)2,3 | -40ºC to 75ºC |
1 IL test according to IEC 61300-3-4;
2 RL test according to IEC 61300-3-6;
3 Tested with proposed encircled flux launch condition on 50μm fiber & 850nm per IEC 61280-4-1. |

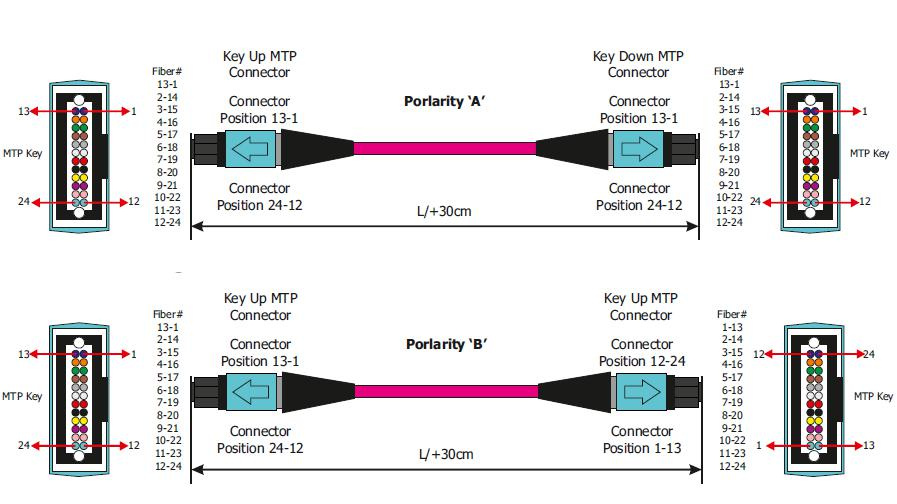

Recommended buffer fiber and color-coded connectors:

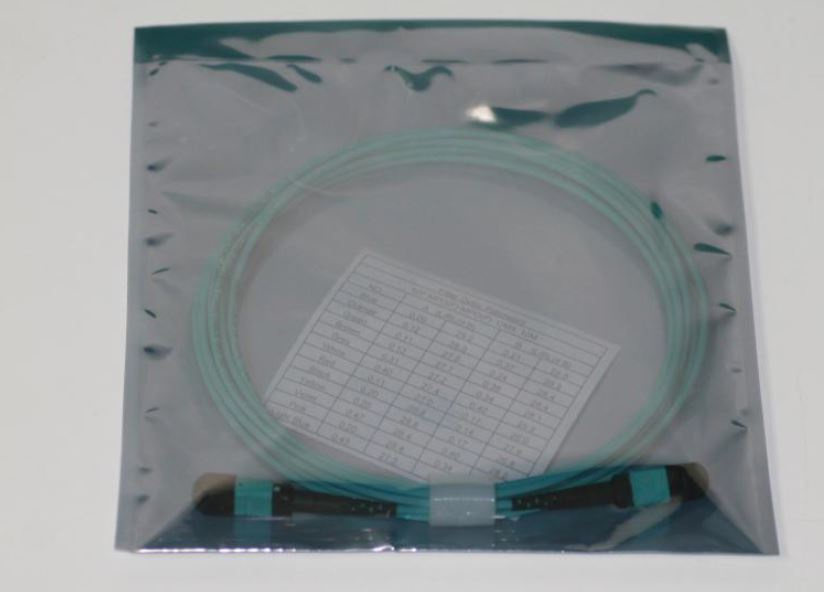

Individually Plastic Bag With Testing Result:

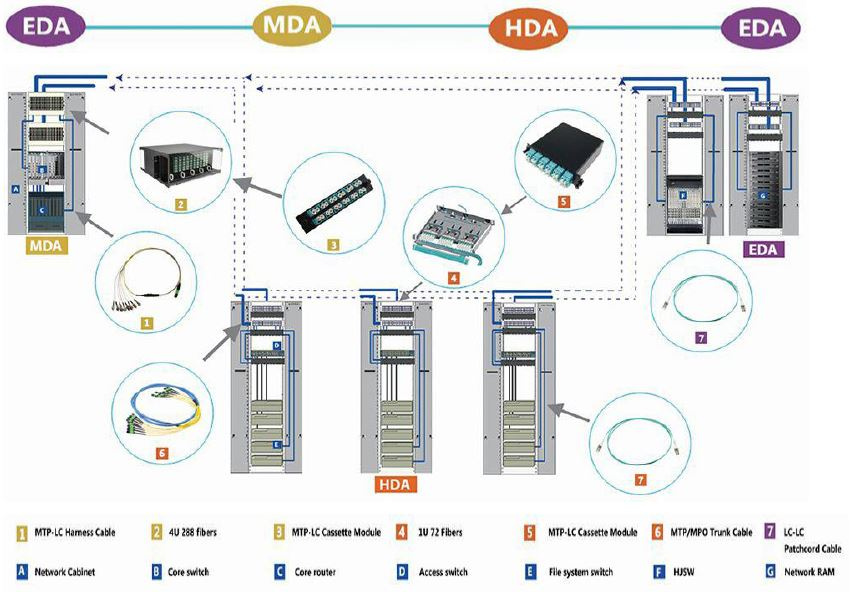

High Density MTP®/MPO Cabling System In Dada Center:
Ordering Information:
1 ea for individual static-free bag with test report;
Connector Customized Inquired;
Cable Customized Length; | Product Description | Lengths | Wire map |
| 24 Fiber MPO/MTP female -female, OS2 | 0-80 Meter | Straight A Wire |
| 24 Fiber MPO/MTP male-female, OS2 | 0-80 Meter | Straight A Wire |
| 24 Fiber MPO/MTP male-male, OS2 | 0-80 Meter | Straight A Wire |
| 24 Fiber MPO/MTP female -female, OS2 | 0-80 Meter | Straight B Wire |
| 24 Fiber MPO/MTP male-female, OS2 | 0-80 Meter | Straight B Wire |
| 24 Fiber MPO/MTP female -female, OS2 | 0-80 Meter | Pair flipped C Wire |
| 24 Fiber MPO/MTP male-male, OS2 | 0-80 Meter | Pair flipped C Wire |
