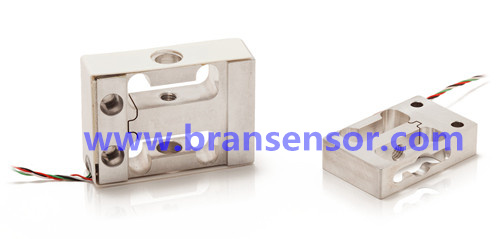

100g Micro Load Cell with Very High Accuracy (B725)

Name: 100g Micro Load Cell with Very High Accuracy (B725)
Brand: all-electronics-online.com
SKU: 810614615
Availability: InStock
Rating: 4.7 (22 reviews)

Price:	US $ 18-20/Piece
Min Order:	2/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	B323
Capacity:	50g 100g 200g 500g
Custom:	Size and Accuracy Could Be Customed
Pattern:	Single Point
Out-Wire:	5 Wires
Feature:	High Precision
Production Process:	Strain Gauge
Material:	Aluminum

Product Description

1. Name: 100g-500g Miniature single point tension and compression aluminum load cells with very high accuracy
2. Type NO.: B323
3. Material: Aluminum

4. Advantages: could be used for high accuracy force guages and dynamometers; good design for high accuracy; small size for easy install in limited space
5. Tech. Sheet:

1	Specifications	Technique
2	Capacity	100g -50kg
3	Accuracy class	C3
4	Rated output	2.0±10%mV/V
5	Zero balance	±3%F.S.
6	Non-linearity	0.05%F.S.
7	Hysteresis	0.05%F.S.
8	Repeatability	0.05%F.S.
9	Creep(30min)	0.05%F.S.
10	Temp.effect on output	0.005%F.S./10ºC
11	Temp.effect on zero	0.005%F.S./10ºC
12	Input impedance	405±10Ω
13	Output impedance	350±5Ω
14	Insulation	≥5000MΩ/100VDC
15	Recommended excitation	5~10V
16	Maximum excitation	15V
17	Compensated temp range	-15~72ºC
18	Operation temp range	-50~93ºC
19	Safe overload	150%F.S.
20	Ultimate overload	200%F.S.
21	Cable size	Φ3×1500mm
22	Weight approx.	0.3kg
23	Material	aluminum alloy

What you could get from Brans?

Load Cells, Miniature and sub-miniature force sensors, Pressure Transducers/sensors, Torque Transducers, Temperature sesensors, Flow senesors, Displacement Transducers (LVDTs), Digital Gauges, Strain Gauges, Instrumentation for Test, amplifiers and data acquisition systems as well as software for structural durability investigations, tests and analysis, Measurement and Other Applications.

Why choose Brans?

Brans cooperate with HBM, FLINTEC, METTLER TOLEDO, Honeywell, Vishay and other famous brand electronic measuring instruments and system. We could learn and get the most advanced technology and news of procedures. Good manufactures means good products.

We could OEM for miniature and sub-miniature load cells with tension or compression; Big capacity load cells/sensors Brans also could make it with good quality material.

Brans products (load cells, force sensors, amplifiers… ) have been certified per ISO9001, OIML, CE, RoHS, NETP AND ATEX. Brans could promise you the best quality for measuring products.

Who Brans cooperate with?

Brans have developed solutions for a wide range of industries including automotive, aerospace, military and defense, oil and gas, R&D and material/test labs, machine and automation equipment designers and builders, off highway and heavy equipment manufacturers, medical device manufacturers, semiconduct or fabricators, utilities and energy companies, marine equipments and shipbuilding.
