100GB/S Cfp2 to Qsfp28 Adaptor Module

Name: 100GB/S Cfp2 to Qsfp28 Adaptor Module
Brand: all-electronics-online.com
SKU: 836775835
Availability: InStock
Rating: 5 (23 reviews)

Price:	US $ 1/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	UNAD-CF2-Q28
Product Name:	Optic Transceiver
Type:	Wired
Support Network:	Ethernet
Information Content:	Data
Certification:	RoHS
Condition:	New
Usage:	Data Center, 100g Ethernet

Product Description

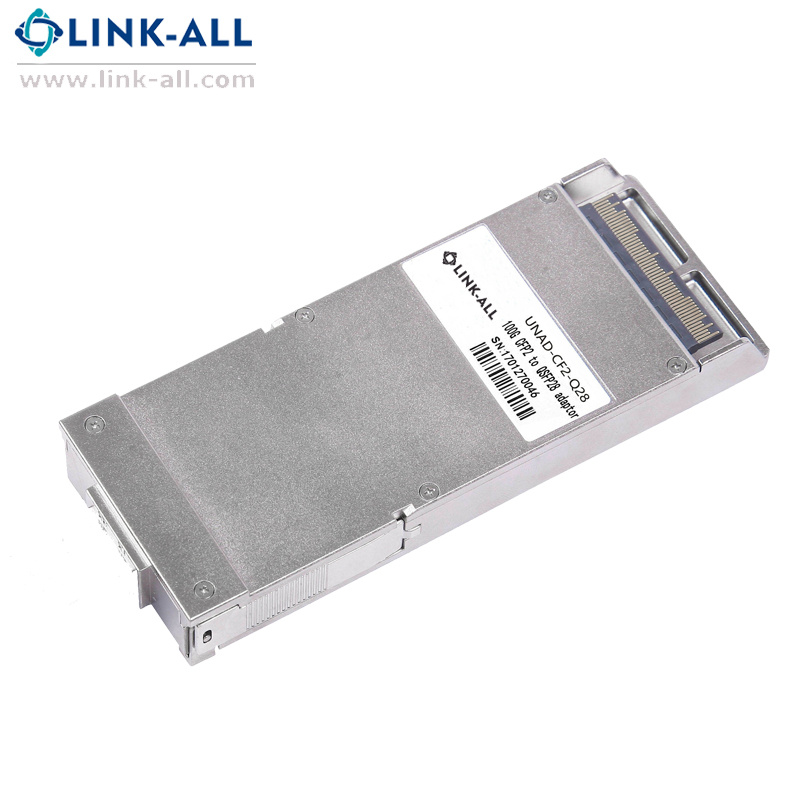

100G CFP2 TO QSFP28 Adaptor Module

General Information
Manufacturer Part Number	UNAD-CF2-Q28
Product Name	UNAD-CF2-Q28 Adaptor Module
Product Type	Adaptor Module
Power consumption	Max: 0.25W (3.3V voltage,max current 0.08A)
Features	CAUI -4 Electrical Interface:4 Lanes @25.78Gbit/s for CFP2 port CAUI -4 Electrical Interface:4 Lanes @25.78Gbit/s for QSFP28 port Hot Pluggable MDIO, I2C Support Compliant to CFP2 MSA RoHS-6 compliant Case operating temperature: 0 to 70 °C The UNAD-CF2-Q28 Adaptor Module converts a 100 Gigabit CFP2 port into a 100 Gigabit QSFP28 port. With the Adaptor Module, customers have the flexibility to use the 100 Gigabit CFP2 interface port of a switch with CFP2 modules or QSFP28 modules.
I/O Expansions
CFP2 port	MDIO
QSFP28 port	I2C
Physical Characteristics
Dimensions	12.4mmHeight x 41.5Width x 108.2 Depth

CAUI-4 Interface (QSFP28 port&CFP2 port)

CAUI Receiver Parameters	Symbol	Min.	Typ.	Max.	Unit	Note
Signal Rate Per Lane			25.78		Gb/s
Differential data output swing per lane	Vout,pp	CAUI-4 as defined by IEEE P802.3bm			mV
Data output rise time	tr				ps
Data output fall time	tf				ps
CAUI Transmitter Parameters	Symbol	Min.	Typ.	Max.	Unit	Note
Signal Rate Per Lane			25.78		Gb/s
Frequency offset		-100		100	ppm	100G Ethernet
Frequency offset		-20		20	ppm	OTU4
Input differential impedance	Rin	CAUI-4 as defined by IEEE P802.3bm			Ω
Differential data input swing per lane	Vin,pp				mV
Data input rise time tolerance	tr				ps
Data input fall time tolerance	tf				ps

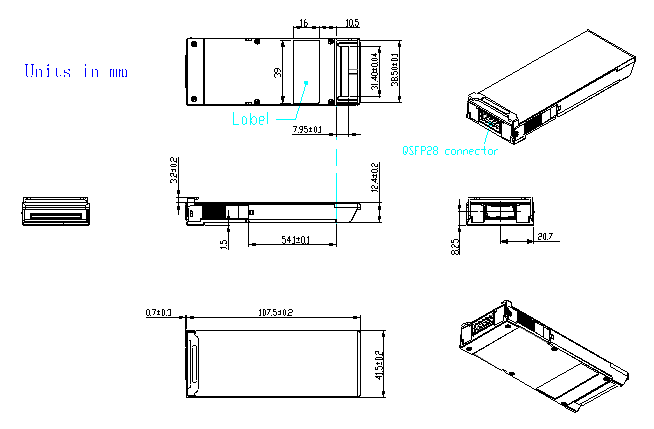

Package Outline (Unit:mm)

Odering Information

Part No.	Desription
UNAD-CF2-Q28	CFP2 To QSFP28 Adaptor Module, 100Gb/s
