0-100mv Output 316L Pressure Transducer with Thread Connection and Working Temperature -40~125 º C
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
WA16 |
| Model No.: |
Wa16 |
| Usage: |
Industrial |
| Working Temperature: |
-40~125ºC |
| Compensation Temperature: |
-20~70ºC |
| Typical Output: |
0-100mv |
| Media Range: |
Air, Liquid and Steam Compatible with 316L Stainle |
| Pressure Reference: |
Gauge, Absolute |
| Sealing Material: |
NBR |
| Measuring Medium: |
Liquid, Gas, Vapour |
Product Description
WA16 Diffused Silicon Oil-filled Sensor WA16 series are MEMS technology based piezoresistive silicon sensor. It is a kind of high stable and high accuracy OEM preesure measurement sensor. This series are sealed with pressure diaphram of international well-known manufacturers. The external pressure is passed to sensitive elements through 316L stainless steel diaphram and internal silicon oil. Thus it can be used to measure all pressure media compatible with 316L stainless steel.
Every sensor was strictly temperature compensated for both zero and span before shipment to ensure measurement accuracy in complex environment.
This series sensor offers two excitation power -- constant current and constant voltage (for details please check technical parameters and type code ). It also matches varied-size threads so is able to meet requirements of different customers.Features - WA16 Diffused Silicon Oil-filled Sensor1. Low cost OEM
2. High stability and accuracy
3. Suited for pressure of 0-40Kpa7Mpa
4. Wide compenstation temperature range
5. Compatible with 316L, suitable for corrosive media
6. Standard mounting size
7. Typical output: 0-100mV
Technical Parameters under Constant Current (excitation current 1.5mA, preheat 10mins under 25ºC) | Parameters | Min. | Typical | Max. |
| Accuracy(%FS) | | | |
Non-
Linearity1 | 40Kpa | | ±0.20 | ±0.30 |
| >40Kpa | | ±0.10 | ±0.20 |
| Hysteresis2 | | ±0.05 | ±0.1 |
| Repeatibility3 | | ±0.05 | ±0.1 |
| Output(mV) | | | |
| Zero | -2 | ±1 | 2 |
| Span(FS) | 70 | | |
| Temp. characters | | | |
| Operation Temp.(ºC) | -40 | | 125 |
| Compensation Temp(ºC) | ≤100Kpa | 0 | | 70 |
| >100Kpa | -10 | | 70 |
| Zero Temp.error(%FS)4 | 40Kpa | | ±0.75 | ±1.5 |
| >40Kpa | | ±0.75 | ±1.0 |
| Span Temp. error(%FS)4 | 40Kpa | | ±0.75 | ±1.5 |
| >40Kpa | | ±0.75 | ±1.0 |
| Thermal hysteresis(%FS)5 | | 0.1 | |
| Long term Stability | | | |
| Zero (±%FS annual) | | 0.1 | |
| Span (±%FS annual) | | 0.1 | |
| Supply Current | 0.5mA | 1.5mA | 2mA |
| Input Resistance | 2kΩ | 2.5kΩ | 3kΩ |
| Output Resistance | 2.5kΩ | 3kΩ | 3.7kΩ |
| Load Resistance6 | 5MΩ | | |
| Insulation Resistance(50V)7 | 50MΩ | | |
Technical Parameters under Constant Voltage (excitation voltage 10VDC, preheat 10mins under 25ºC) | Parameters | Min. | Typical | Max. |
| Accuracy(%FS) | | | |
Non-
Linearity1 | 40Kpa | | ±0.20 | ±0.30 |
| >40Kpa | | ±0.10 | ±0.20 |
| Hysteresis | | ±0.05 | ±0.1 |
| Repeatability | | ±0.05 | ±0.1 |
| Output(mV) | | | |
| Zero | -2 | ±1 | 2 |
| Span(FS) | 99 | 100 | 101 |
| Temp. characters | | | |
| Operation Temp.(ºC)3 | -40 | | 125 |
| Compensation Temp(ºC) | 40Kpa | 0 | | 50 |
| 100Kpa | 0 | | 70 |
| >100Kpa | -10 | | 70 |
| Zero Temp.error(%FS)4 | 40Kpa | | ±0.75 | ±1.5 |
| >40Kpa | | ±0.75 | ±1.0 |
| Span Temp. error(%FS)4 | 40Kpa | | ±0.75 | ±1.5 |
| >40Kpa | | ±0.75 | ±1.0 |
| Thermal hysteresis(%FS) | | 0.1 | |
| Long term Stability | | | |
| Zero (±%FS annual) | | 0.1 | |
| Span (±%FS annual) | | 0.1 | |
| Supply Voltage | | 10VDC | 14VDC |
| Input Resistance | 6kΩ | 8kΩ | 10kΩ |
| Output Resistance | 2.5kΩ | 3kΩ | 3.7kΩ |
| Load Resistance5 | 5MΩ | | |
| Insulation Resistance(50V)6 | 50MΩ | | |
| |
| Pressure Range | 0-40Kpa7Mpa |
Pressure
Overload | ≤4Mpa | 2X |
| 7Mpa | 1.5X |
| Pressure Media | Liquids, Gases and Vapour compatible with 316L Stainless Steel |

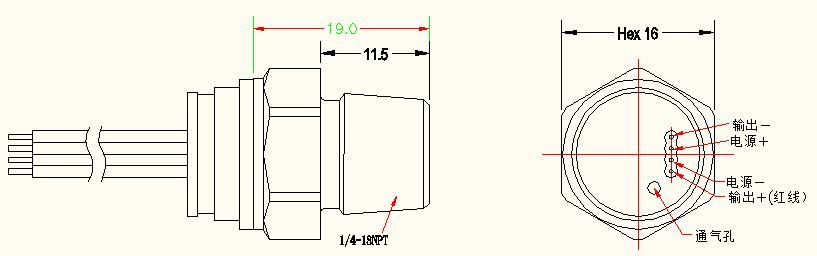

Dimensions - WA16 Diffused Silicon Oil-filled SensorRemark:Ribbon Cable or Connect Pins are optional for all models
A15
A17
