| Prod Model: |
LPS-12E100C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
100W Constant Voltage LED Transformer with Ce |
| Output: |
100W |
| Input Voltage: |
170-250V |
| Output Voltage: |
12V |
| Power Factor: |
0.65 |
| Efficiency: |
88 % |
| IP Rating: |
IP67 |
| Weight(Kg): |
0.75kg |
| Packing Information: |
20 PCS/ Carton |
| Operating Temperature: |
-25~50°c |
| Usage: |
Construction |
| Output Type: |
Single |
| Driving Method: |
LED Regulator Voltage |
| Circuit Structure: |
PWM Controlled |
| Certification: |
Bis |
| Power Supply Voltage: |
AC170-250 |
| Brand: |
Neonpro |
Product Description
100W 12V PWM Constant Voltage LED Transformer with CE, BIS CertifiedFeature for 100W Constant Voltage LED Transformer with CE, BIS:1. Slim body, special design for application with narrow space.
2. Aluminum housing, good for thermal removal, longer using life.
3. Seamless and fully sealed aluminum housing, waterproof, IP67.
4. High efficiency up to 90%, more electricity saving than regular power supply.
5. Guarantee: 2 years .
Application for 100W Constant Voltage LED Transformer with CE, BIS:Used for LED module, strip, perforating lamp, pixel lamp, light bar, light box, wall washer, panel light, etc…
LED Signage
LED Architectural Lighting
LED Industrial Lighting
LED Sports Lighting
LED Cobra Head Lighting
Specification for 100W Constant Voltage LED Transformer with CE, BIS:| Model no. | LPS-12E100C |
|---|
| Input voltage | 170-250 VAC 50/60 Hz |
|---|
| Max. power | 100W |
|---|
| Output type | Constant voltage |
|---|
| Dimming | No |
|---|
| Built-in active PFC | No |
|---|
| Power factor | 0.65 |
|---|
| Efficiency | 88% |
|---|
| Output voltage | 12VDC ± 5% |
|---|
| Output current | 8.3A max |
|---|
| Overload protection | 105%-120% hiccup mode, auto-recovery |
|---|
| Over voltage protection | 120% rated output voltage |
|---|
| Operating temperature | -25~50 ºC |
|---|
| Installation | Outdoor waterproof |
|---|
| IP rating | IP67 |
|---|
| Cooling | Free air convection |
|---|
| Certificates/standards | CE, SAA, SASO, BIS |
|---|

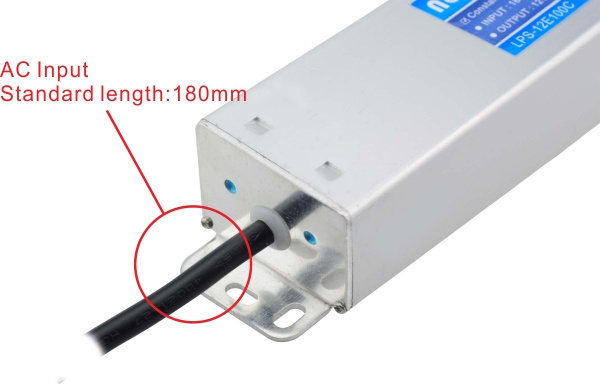

| Connection input/output | Input: 0.75mm² x 3 (18cm) / Output: 0.75mm² x 2*4 (18cm) |
|---|

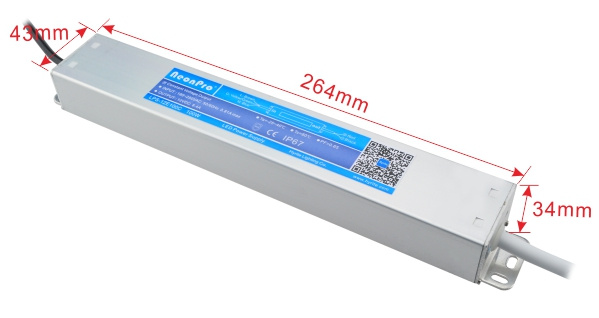

| Dimensions(L*W*H) | 210*35*26 mm |
|---|
| Weight(kg) | 0.75 |
|---|
| Packing information | 20Pcs/ Carton, G.W: 16KG |
|---|

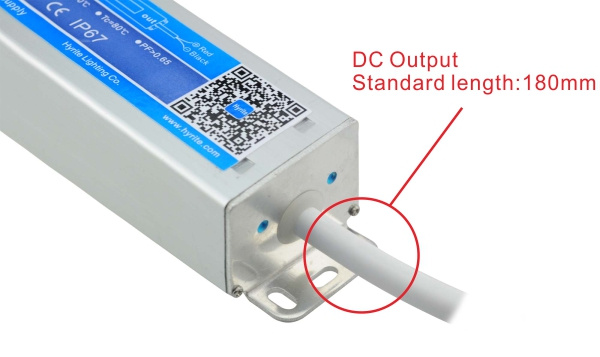

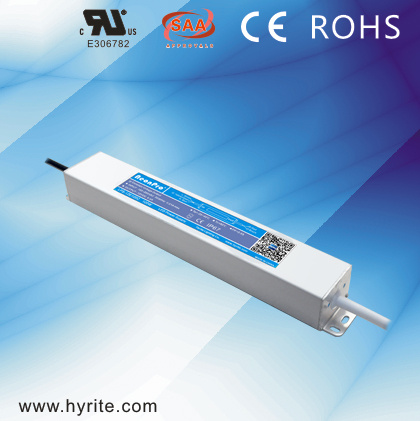

Product Pictures for 100W Constant Voltage LED Transformer with CE, BIS:
FAQ for 100W Constant Voltage LED Transformer with CE, BIS:1. Shipment:
Ocean or air transportation, international express.
2. Normal lead time:
1 day for in stock and 10-15 days for out of stock product.
3. Price term:
FOB, C&F, EXW
30% before production, 70% before shipment.
4. Supply ability:
50000 units/month.
5. MOQ:
10 units/ 1 carton. (Samples are available).
6. Discounts:
We offer discount for big quantity.
7. OEM and ODM service are available.
Contact :Sales Department:
Wing XuHyrite Lighting Co.
Tel: +86(757)88382138 (Ext.333); Fax: +86(757)81200369
H.P.: +86-18520900296
Website: http://www.hyrite.com/,
http://hyrite-leddriver.en.made-in-china.com/28th Malaysia International Sign & LED Exhibition July 27th-30th, 2017 Booth No.: 1392, Hall 1
Application Pictures for 100W Constant Voltage LED Transformer with CE, BIS:
Exhibitions Show for 100W Constant Voltage LED Transformer with CE, BIS:
Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.
The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.
Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.
