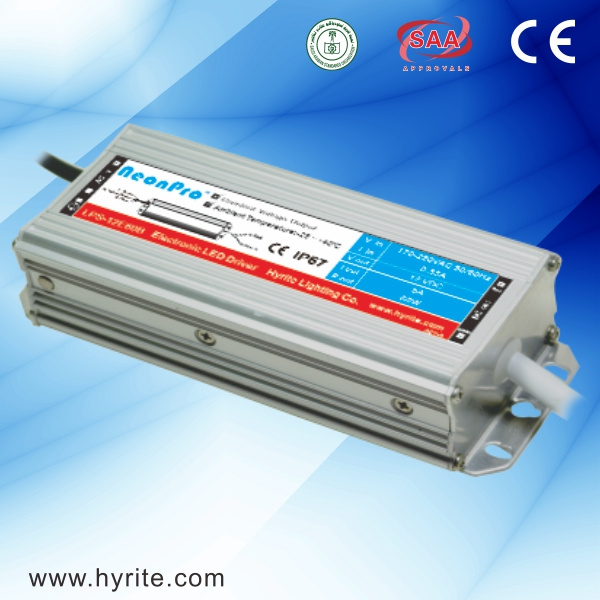

100W 36V Constant Voltage Waterproof LED Driver

Name: 100W 36V Constant Voltage Waterproof LED Driver
Brand: all-electronics-online.com
SKU: 763889725
Availability: InStock
Rating: 4.8 (90 reviews)

Price:	US $ 13.47-14.97/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPS-36E100B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Power:	100W
Input Voltage:	170-250V
Output Voltage:	36VDC
Output Current:	2.77A
Power Factor:	0.65
Efficiency:	85%
IP Rating:	IP 67
Certificates/Standards:	CE, RoHS, SAA, Saso
Dimensions(LWH):	236.56440.5 Mm
Packing Information:	10 PCS/ Carton, G.W 14.5kg
Usage:	Construction
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
In-Out:	AC to DC
Power Supply Voltage:	AC170-250V
Brand:	Neonpro

Product Description

Constant Voltage waterproof PWM 100W LED Driver 36v CE

Brief Introduction of the waterproof LED driver :

*External driver for LED module, strip, flex ribbon, bar light, spot light, down light, wall washer, panel light
*Seamless aluminum case, fully sealed & waterproof, IP67
*Constant voltage output
*100% burn-in test
*2 years warranty
*36VDC available

Our main products include:

-IP67 Waterproof constant voltage LED power supply with CE SASO SAA
-IP45 Rainproof constant voltage LED power supply with CE UL
-IP20 Indoor constant voltage LED power supply with CE
-Constant Current led driver for lighting with CE SAA
-Dimmbale LED Driver with CE SAA
-LED Modules with CE UL

Technical Specification of the waterproof LED driver :

Model no.	LPS-36E100B
Input voltage	170-250 VAC 50/60 Hz
Max. power	100 W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	0.65
Efficiency	85%
Output voltage	36VDC ± 5%
Output current	2.77 A
Overload protection	105%-120% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Operating temperature	IP 67
Installation	CE,SAA,SASO
IP rating	IP 67
Cooling	Outdoor waterproof
Certificates/standards	CE,SAA,SASO
Connection input/output	Input:0.75mm²x3 (18cm) / Output:0.75mm²x2*2 (18cm)
Dimensions(LWH)	236.56440.5 mm
Packing information	10 Pcs/ Carton, G.W 14.5KG
