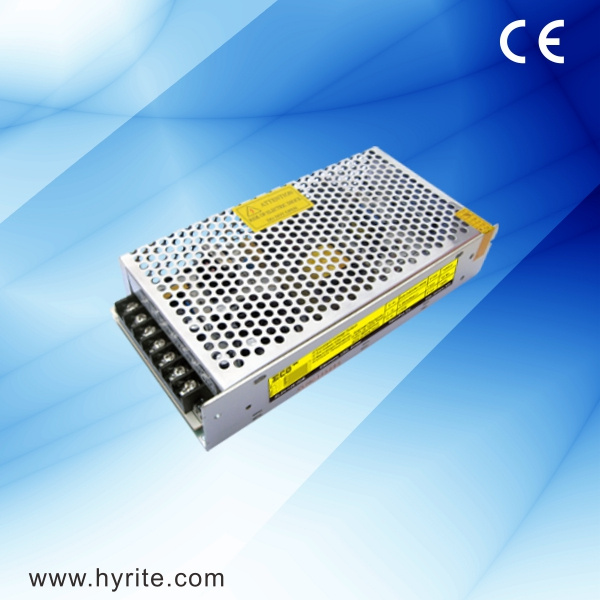

100W 5V IP20 Indoor LED Power Supply with Ce

Name: 100W 5V IP20 Indoor LED Power Supply with Ce
Brand: all-electronics-online.com
SKU: 780840255
Availability: InStock
Rating: 4.3 (67 reviews)

Price:	US $ 7.5-7.8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ELDV-5E100B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage:	220-240V
Output Voltage:	5V
Output Current:	20A
Dimming:	No
Built-in Active Pfc:	No
Power Factor:	0.65
Efficiency:	85%
Installation:	Indoor
Dimensions(LWH):	1599842 mm
Weight(Kg):	0.54
Usage:	Vehicle
Output Type:	Triple
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	220-240
Brand:	Eco

Product Description

100W 5V IP20 Indoor LED power supply with Ce

Product Features:
*Indoor driver for LED module, strip, flex ribbon, bar light, panel light, LED-neon tube, pixel lamp, perforating lamp, etc...
*Constant voltage output
*Mesh case (or electric fan) for ventilation
*100% burn-in test
*CE
*2 years warranty
*5/10/15/25/30/35/50/60/100/150/180/200/250/300/350/400/750/1000W;
*5V/12V/24V

Our main products include:
-IP67 Waterproof constant voltage LED power supply with CE SASO SAA
-IP45 Rainproof constant voltage LED power supply with CE UL
-IP20 Indoor constant voltage LED power supply with CE
-Constant Current led driver for lighting with CE SAA
-Dimmbale LED Driver with CE SAA
-LED Modules with CE UL

Technical Sheet:

Model no.	ELDV-5E100B
Input voltage	220-240VAC 50Hz/60Hz
Max. power	100W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	0.65
Efficiency	85%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	5VDC ± 5%
Output current	20A
Overload protection	110-150% hiccup mode, auto-recovery
Over voltage protection	115-150% rated output voltage
Operating temperature	-10~+60,100%Pout@0~45, 60%@60 , 80%@-10
Installation	Indoor
IP rating	IP 20
Cooling	Free air convection
Connection input/output	Terminal
Dimensions(LWH)	1599842 mm
Weight(kg)	0.54
Packing information	50 Pcs/ Carton, G.W 27 KG
