100W Economical Constant Current Outdoor Waterproof High Voltage Output IP67 LED Driver Power Supply

Name: 100W Economical Constant Current Outdoor Waterproof High Voltage Output IP67 LED Driver Power Supply
Brand: all-electronics-online.com
SKU: 822865535
Availability: InStock
Rating: 4.7 (138 reviews)

Price:	US $ 11-13/Piece
Min Order:	300/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Input Voltge:	120-277VAC 90-305VAC
Power Factor:	0.97 @ 230VAC
Efficiency:	92% @230VAC
Tol.:	1%
Thd:	<10%
R&N:	150mv
Working Temperature:	-40 to +60 Degree
Level Of Protection:	IP 67
Warranty:	5 Years
Lifetime:	>64000hrs
Usage:	Streetlight
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM+Flyback
Power Supply Voltage:	AC120-277V 90-305VAC
Pack Sealing Size:	None
Brand:	Hipower-Tek

Product Description

Brief Introduction

LDW series is Hipower-tek self-developed outdoor economical LED driver. The two-stage plan helps this series shows high performance in nowdays LED driver market. This series is a derivative of LDI platform. It is a economical choice to replace our LDL series. Also, it has various available functions such as: 0-10V dimming function, timing control function, programme function. Hipower-tek Hi-set system makes it very convenient to achieve these functions. Nearly 92% efficiency also makes the lifetime of driver be very long which can reach 58000 hours.

Overview

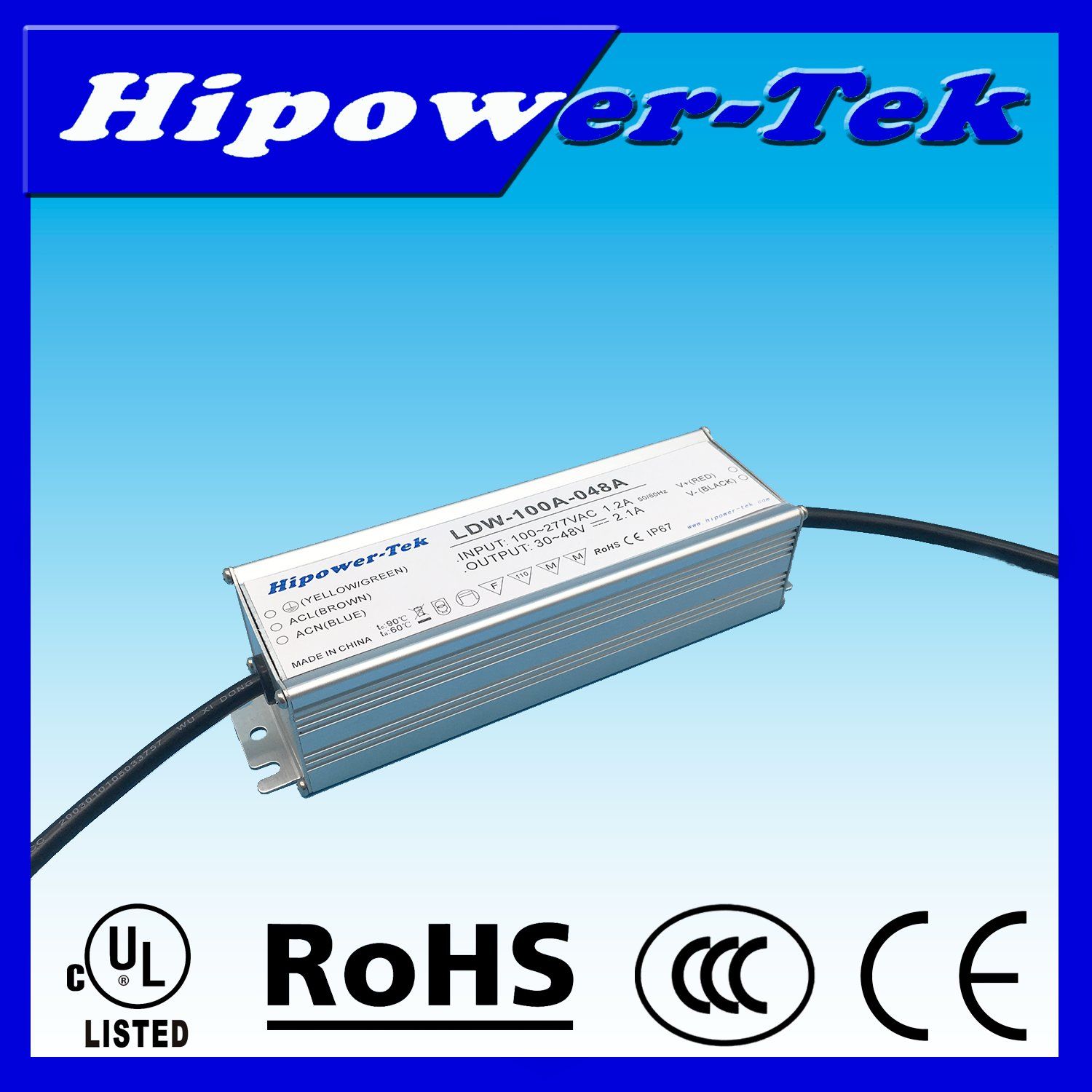

1. Model No.: LDW-100A

2. AC Input Voltage:100-277VAC (90-305VAC)

3. Output Voltage Range: 30-54V

4. Output Power: 100W

5. Power Factor: 0.99 @230VAC

6. Efficiency: 92% @230VAC

7. THD: <10% (all range)

8. 0-10V Dimming; Timing control; Programme function available

9. Size: 198*60*44mm

10. Lifetime: >58000 Hours

11. Certification: UL, TUV pending

12. Warranty: 5 years

Model No.	Output	Tol.	R&N	Effi.	PF	THD
LDW-100A-30	3.3A,18V-30V	±1%	150mV	88.5%,120V	0.99,120V	6%,120V
				91%,230V	0.98,230V	6%,230V
				91%,277V	0.96,277V	7%,277V
LDW-100A-36	2.7A,22V-36V	±1%	150mV	89%,120V	0.99,120V	6%,120V
				91.5%,230V	0.98,230V	6%,230V
				91.5%,277V	0.96,277V	7%,277V
LDW-100A-42	2.3A,25V-42V	±1%	150mV	89%,120V	0.99,120V	6%,120V
				91.5%,230V	0.98,230V	6%,230V
				91.5%,277V	0.96,277V	7%,277V

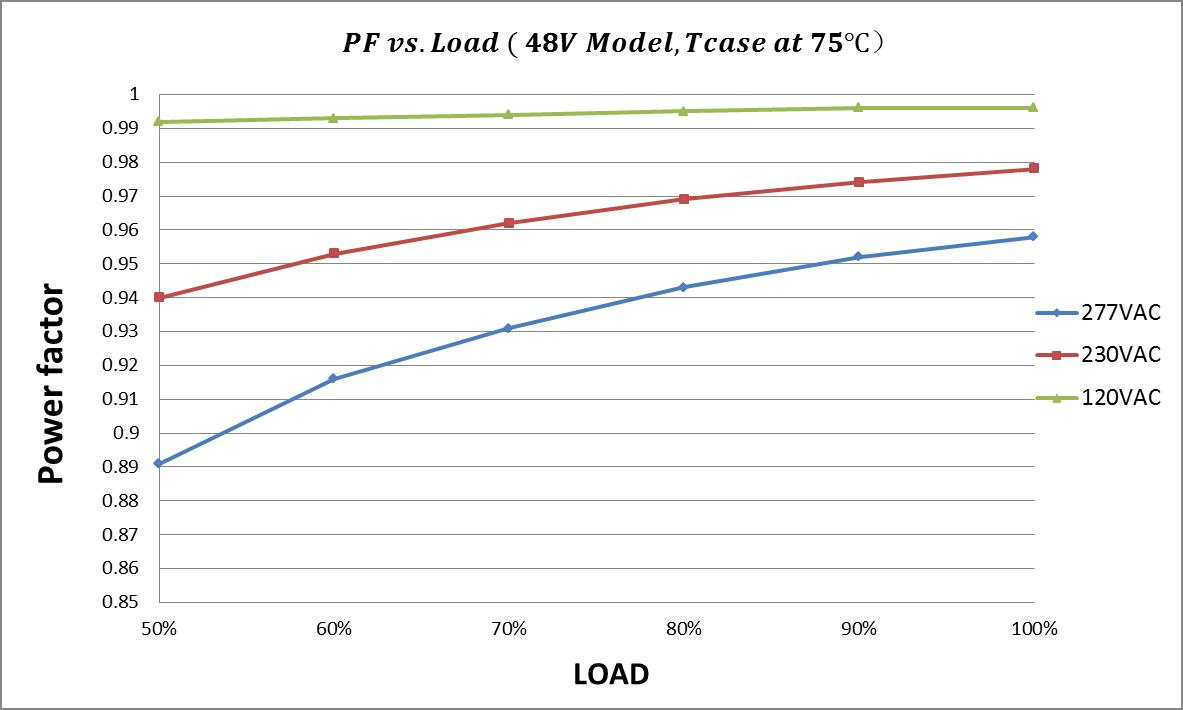

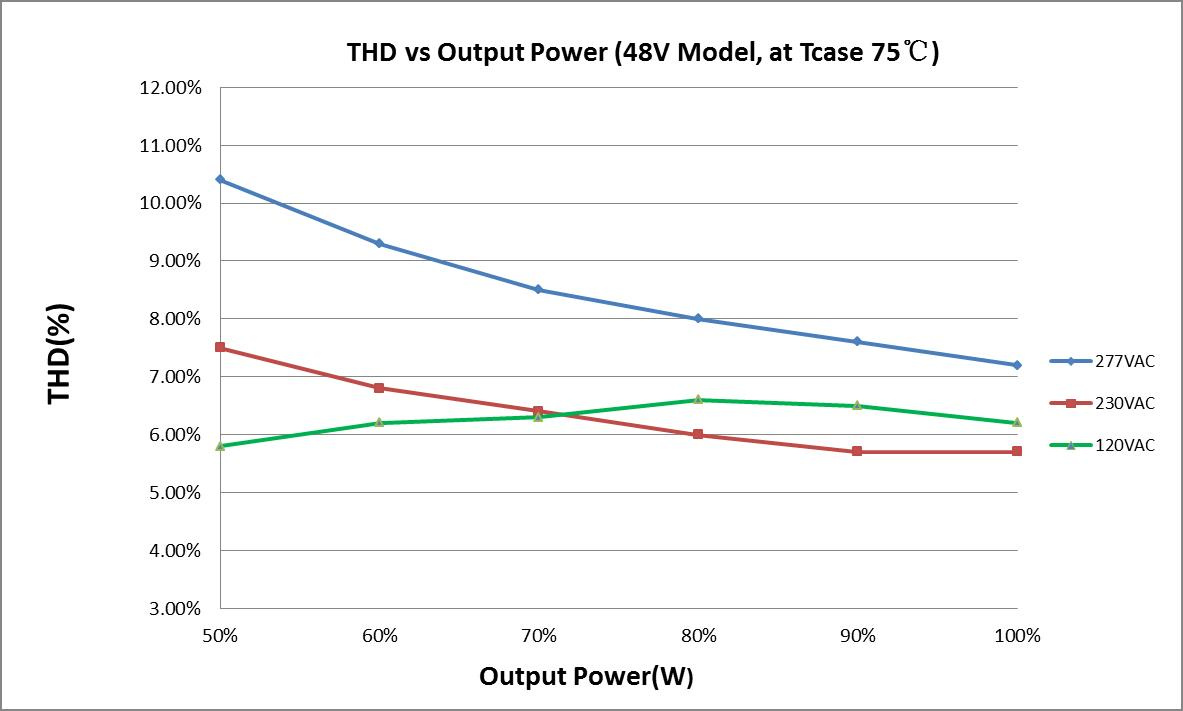

LDW-100A-48	2.1A,28V-48V	±1%	150mV	89.5%,120V	0.99,120V	6%,120V
				92%,230V	0.98,230V	6%,230V
				92.5%,277V	0.96,277V	7%,277V
LDW-100A-54	1.85A,32V-54V	±1%	150mV	89.5%,120V	0.99,120V	6%,120V
				92%,230V	0.98,230V	6%,230V
				92.5%,277V	0.96,277V	7%,277V

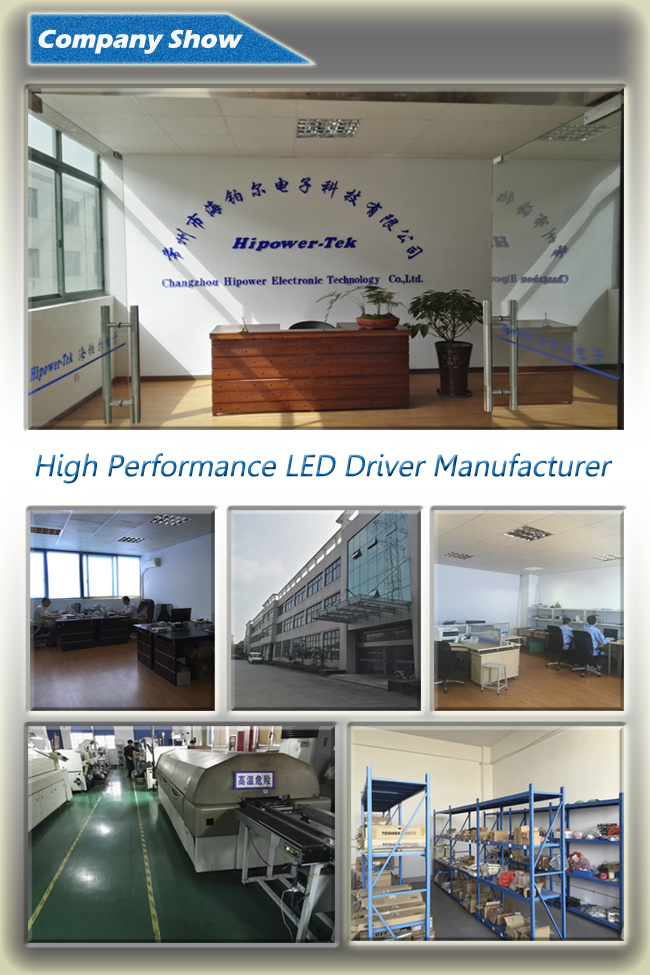

Hipower-tek is a leading edge LED manufacturing company, specializing in the development and production of high end commercial and industrial lighting products. Since the establishment in 2012, our company's performance has improved rapidly year by year. And also, we have become a recognized technologic-leading company in LED industry.

Hipower-Tek have self-developed various specifications and wide input voltage range LED drivers. Our products possess features such as high efficiency, superior reliability and long durability. Our professional R&D team guarantees the advancement and diversity of our technology. We have expanded our products to PLC dimming control, emergency power supply, LED retrofit kit etc.

Hipower-Tek always holds the concept that constant innovation, satisfying service and good credibility mark the excellence of a company, so we intend to provide you the best solution, customized service and quick respond.

The talented crew, advanced technology and scientific management contributes to Hipower-Tek 's rapid development, along with our pragmatic and aggressive entrepreneurship comprise the core competence of our company.

We may not have a glory history, . But we believe that with our ideas and incredible products we will be making history in the near future
