100W Single Output Switching Power Supply (HS-100B)

Name: 100W Single Output Switching Power Supply (HS-100B)
Brand: all-electronics-online.com
SKU: 610009745
Availability: InStock
Rating: 4.4 (137 reviews)

Price:	US $ 11.7/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	HS-100B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Type:	Single
Warranty:	1 Year
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Output Power:	36~102W
Input Voltage:	AC90~135/180~264
Brand:	Dhecn

Product Description

Features
· High efficiency, high reliability
· AC input range selected by switch
· 100% full load burn-in test
· Protections: Short circuit/ Over load
· Cooling by free air convection
· Fixed switching frequency at 110KHz
· 1 year warranty
· Dimensions: 159*97*38mm(L*W*H)

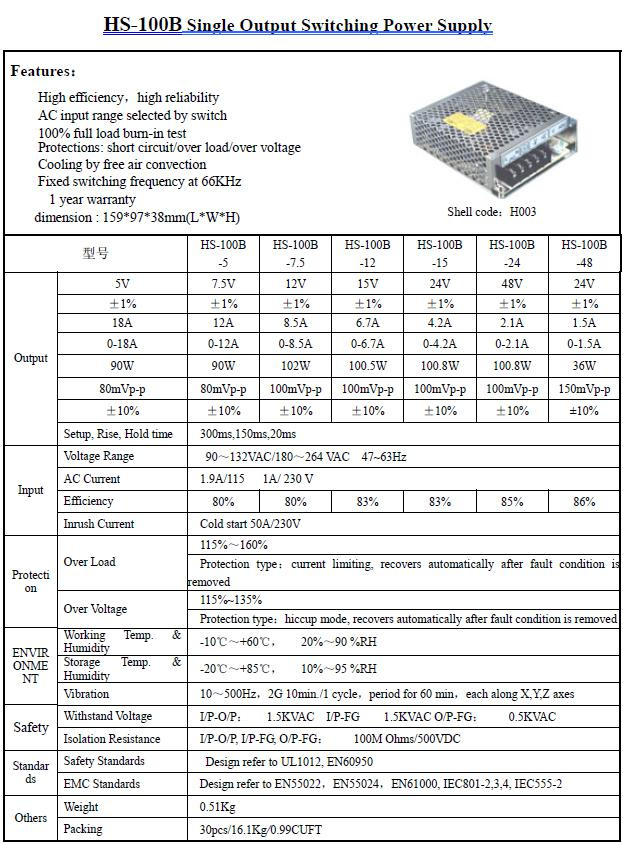

Specification

1)INPUT
· Voltage Range: 90~135VAC/180~264 VAC47~63Hz
· AC Current: 1.9A/1151A/ 230 V
· Efficiency: 78%(HS-100B-5); 80%(HS-100B-7.5); 81%(HS-100B-12); 82%(HS-100B-15); 84%(HS-100B-24); 84%(HS-100B-48);
· Inrush Current: Cold start 50A/230V
· Leakage Current: <1mA/240VAC

2)PROTECTION
· Over Load: 115%~150% Protection type: Fold back current limiting, auto-recovery

3)ENVIRONMENT
· Working Temp., Humidity: -10º C~+50º C, 20%~90 %RH
· Storage Temp., Humidity: -20º C~+85º C, 10%~95 %RH
· Vibration: 10~500Hz, 2G 10min. /1cycle, period for 60min, each along X, Y, Z axes

4)SAFETY AND STANDARD
· Withstand Voltage: I/P-O/P: 1.5KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC
· Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
· Safety Standard: Design refer to UL1012, EN60950
· EMC Standard: Design refer to EN55022, EN55024, EN61000, IEC801-2, 3, 4, IEC555-2

5)OUTPUT
· Model HS-50-5 HS-50-12 HS-50-15 HS-50-24 HS-50-48
· Model HS-100B-5 HS-100B-7.5 HS-100B-12 HS-100B-15 HS-100B-24 HS-100B-48
· DC Voltage 5V 7.5V 12V 15V 24V 48V
· Voltage Tolerance ± 1.5% ± 1.5% ± 1% ± 1% ± 1% ± 1%
· Rated Current 15A 11A 8.3A 6.6A 4.2A 2.1A
· Current Range 0-15A 0-11A 0-8.3A 0-6.6A 0-4.2A 0-2.1A
· Rated Power 75W 82.5W 99.6W 99W 100.8W 100.8W
· Ripple & Noise 80mVp-p 120 mVp-p 120 mVp-p 120 mVp-p 150 mVp-p 150 mVp-p
· DC Adjustment Range ± 10% ± 10% ± 10% ± 10% ± 10% ± 10%
· Setup, Rise, Hold Time 300ms, 150ms, 20ms
