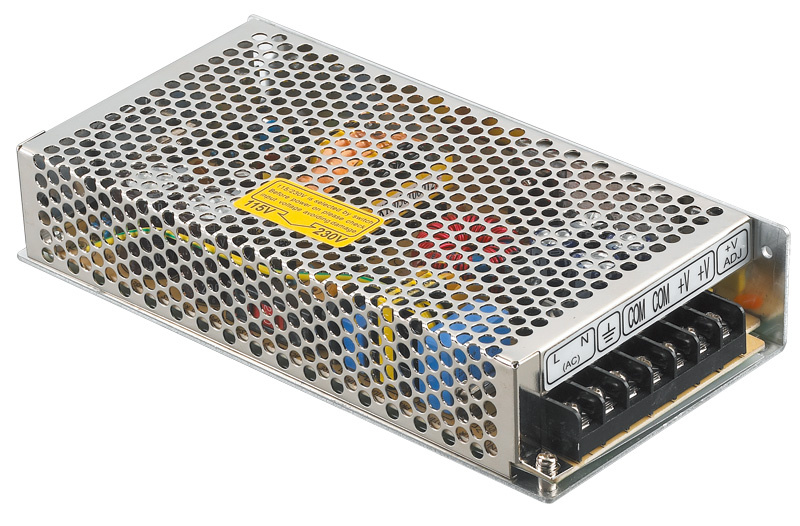

100W Single Output Switching Power Supply (HS-100F)

Prod Model:	HS-100F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Type:	Single
Voltage Regulating Mode:	Width Modulation Type
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Warranty:	2 Years
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	ISO
Output Power:	94~106W
Input Voltage:	88~132/176~264VAC
Brand:	Dhecn

Product Description

Features:
· High efficiency, high reliability
· AC input range selected by switch
· 100% full load burn-in test
· Protections: Short circuit/Over load/ Over voltage
· Cooling by free air convection
· Fixed switching frequency at 83KHz
· 2 years warranty

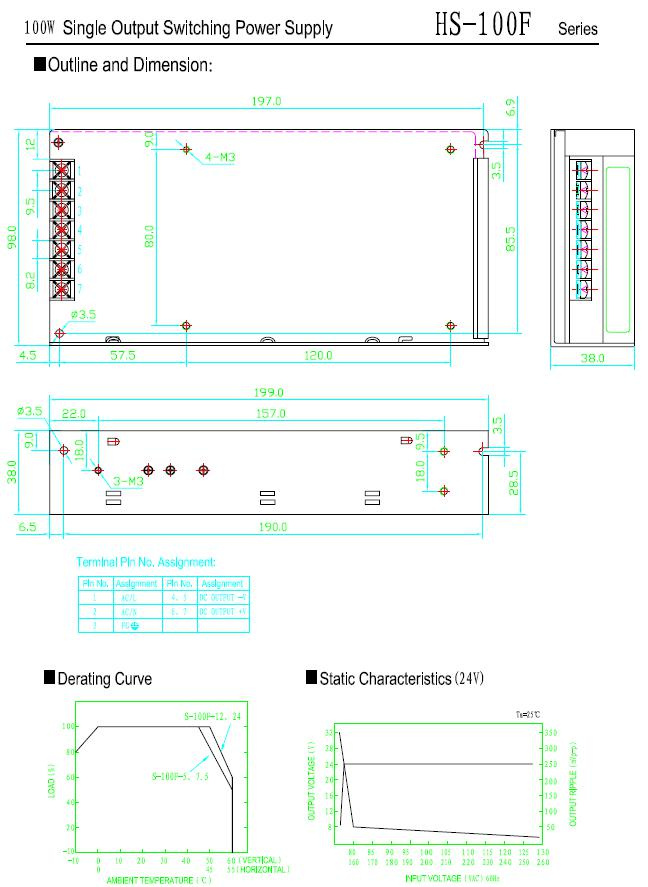

· Dimensions: 199*98*38mm (L*W*H)

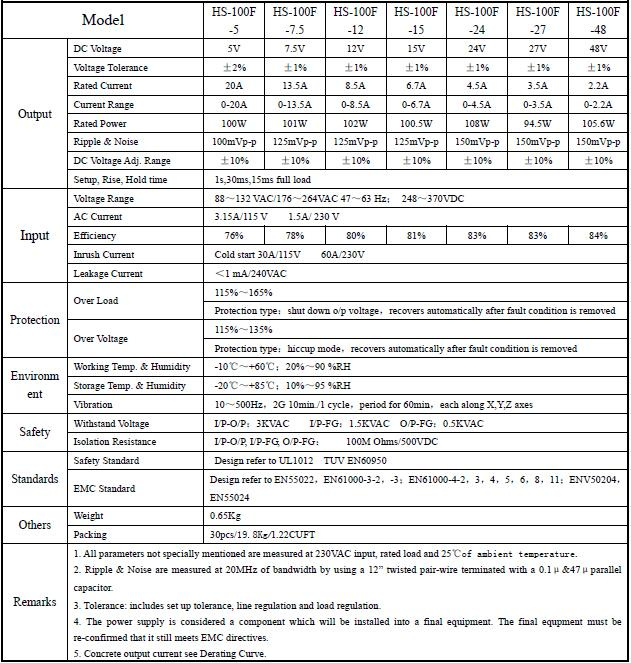

Speciaication

1)INPUT
· Voltage Range: 88~132 VAC/176~264VAC 47~63 Hz; Selected by switch 248~370VDC
· AC Current: 3.15A/115 V 1.5A/ 230 V
· Efficiency: 76%(HS-100F-5); 78%(HS-100F-7.5); 80%(HS-100F-12); 81%(HS-100F-15);
83%(HS-100F-24); 83%(HS-100F-27); 84%(HS-100F-48);
· Inrush Current: Cold start 30A/115V 60A/230V
· Leakage Current: <1 mA/240VAC

2)PROTECTION
· Over Load 135%~165% Protection type: Shut down o/p voltage, recovers automatically after fault condition is removed.
· Over Voltage 115%~135% Protection type: Hiccup mode, recovers automatically after fault condition is removed.

3)ENVIRONMENT
· Working Temp., Humidity: -10º C~+60º C; 20%~90 %RH
· Storage Temp., Humidity: -20º C~+85º C; 10%~95 %RH
· Vibration: 10~500Hz, 2G 10min. /1cycle, period for 60 min, each along X, Y, Z axes

4)SAFETY AND STANDARD
· Withstand Voltage: I/P-O/P: 3KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC
· Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
· Safety Standard: Design refer to UL1012TUV EN60950
· EMC Standard: Design refer to EN55022, EN61000-3-2, -3; EN61000-4-2, 3, 4, 5, 6, 8, 11; ENV50204, EN55024

5)OUTPUT
· Model: HS-100F-5 HS-100F-7.5 HS-100F-12 HS-100F-15 HS-100F-24 HS-100F-27 HS-100F-48
· DC Voltage: 5V 7.5V 12V 15V 24V 27V 48V
· Voltage Tolerance: ± 2% ± 21% ± 21% ± 21% ± 21% ± 21% ± 21%
· Rated Current: 20A 13.5A 8.5 6.7A 4.5A 3.5A 2.2A
· Current Range: 0-20A 0-13.5A 0-8.5A 0-6.7A 0-4.5A 0-3.5A 0-2.2A
· Rated Power: 100W 101W 102W 100.5W 108W 94.5W 105.6W
· Ripple & Noise: 100 mVp-p 125 mVp-p 125 mVp-p 125 mVp-p 150 mVp-p 150 mVp-p 150 mVp-p
· DC Adjustment Range: ± 210% ± 210% ± 210% ± 210% ± 210% ± 210% ± 210%
· Setup, Rise, Hold Time: 1s, 30ms, 15ms at full load
