100W Slim Indoor LED Switching Transformer for Strip

Name: 100W Slim Indoor LED Switching Transformer for Strip
Brand: all-electronics-online.com
SKU: 719617112
Availability: InStock
Rating: 4.8 (111 reviews)

Price:	US $ 7.48/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HS-12E100
Input Voltage:	220-240V
Output Voltage:	12V
Output Current:	8.3A
Power Factor:	0.65
Efficiency:	85%
IP Rating:	IP 20

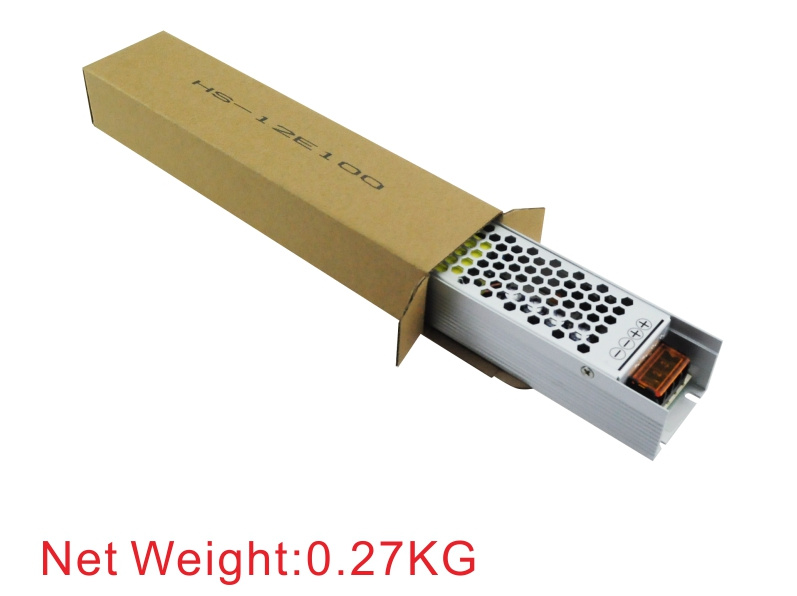

Weight(Kg):	0.26 Kg
Packing Information:	50 PCS/ Carton, G.W 14 Kg
Outputtype:	Constant Voltage

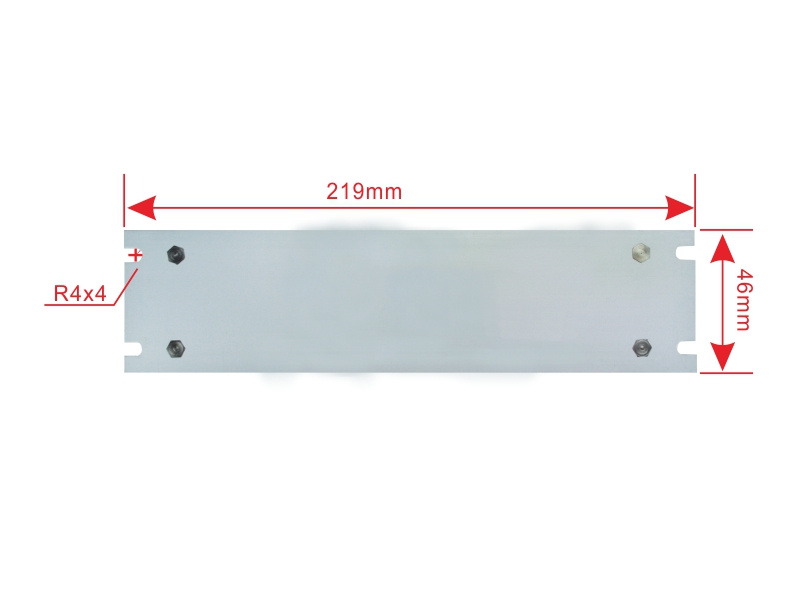

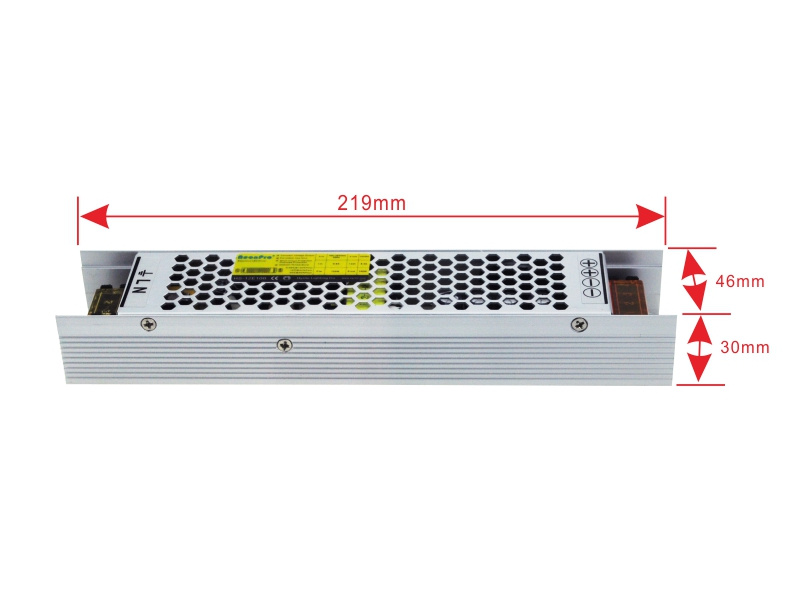

Size:	219X46X30mm
Usage:	Vehicle
Output Type:	Triple
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	AC220-250V
Brand:	Neonpro

Product Description

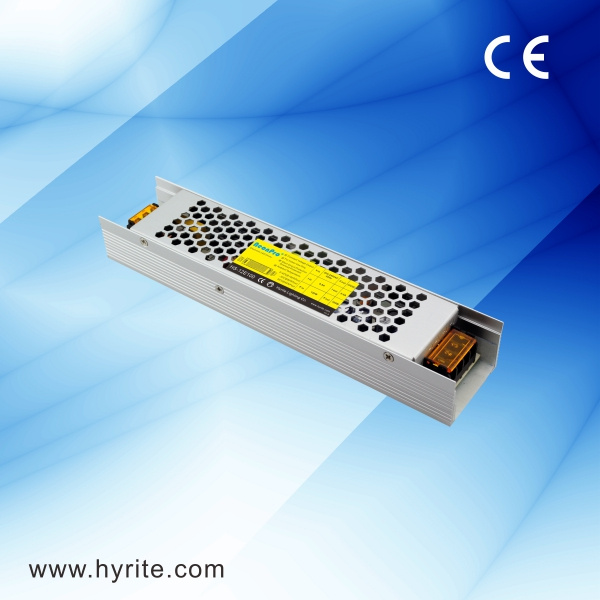

100W 12V IP20 Slim Indoor LED Switching Transformer for Strip Lights
Features
*Super Slim body, special design for application with narrow space
*Constant voltage output
*Short circuit and overload protection
*For indoor use only
*Easy Installation

Applications
*LED module, strip, perforating lamp, pixel lamp, light bar, light box, wall washer, panel light, etc...

Specification

Model no.	HS-12E100
Input voltage	220-240VAC 50Hz/60Hz
Max. power	100W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	0.65
Efficiency	85%
Output voltage	12VDC ± 5%
Output current	8.33A
Overload protection	110-150% hiccup mode, auto-recovery
Over voltage protection	115-150% rated output voltage
Operating temperature	-10~+60,100%Pout@0~45, 60%@60 , 80%@-10
Installation	Indoor
IP rating	IP 20
Cooling	Free air convection
Connection input/output	Terminal

Successful Applications & Workshops & Exhibitions

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
