100W Waterproof LED Switching Power Supply with Ce

Name: 100W Waterproof LED Switching Power Supply with Ce
Brand: all-electronics-online.com
SKU: 739859695
Availability: InStock
Rating: 4.8 (90 reviews)

Price:	US $ 15.68-16.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPS-24E100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Power:	100W
Input Voltage:	170-250V
Output Voltage:	24V
Output Current:	4.17A Max
Power Factor:	Low
Efficiency:	80%
IP Rating:	IP 67
Certificates/Standards:	CE/SAA
Weight(Kg):	1.04
Packing Information:	10PCS/ Carton, G.W 11.5kg
Usage:	Construction
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	Electronic Step-down Transformer
Power Supply Voltage:	AC170-250V
Brand:	Neonpro

Product Description

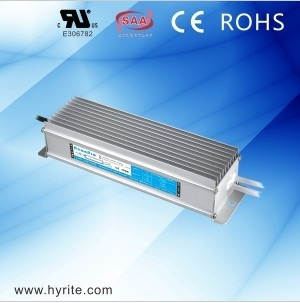

Constant Voltage 24V 100W IP67 PWM LED Power Supply

Brief Introduction
*External led power supply for LED module, strip, flex ribbon, bar light, spot light, down light, wall washer, panel light, etc...
*Seamless aluminum case, fully sealed & waterproof, IP67
*Constant voltage output
*100% burn-in test

Note:
Trade Terms: EXW, FOB, CIF and CNF term available
Lead time:1-3 days for sample order;
15 days after order confirmed for normal order
Payment terms: L/C, T/T, Western Union
MOQ: 1 pc

Shipping Method:
* DHL FedEx TNT UPS EMS
* By Sea
* By Air

Technical Specification:

Model no.	LPS-24E100
Input voltage	170-250 VAC 50/60 Hz
Max. power	100W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	Low
Efficiency	80%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	24VDC ± 5%
Output current	4.17A max
Overload protection	105% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25~40 degree
Installation	Outdoor waterproof
IP rating	IP 67
Cooling	Free air convection
Certificates/standards	CE/SAA

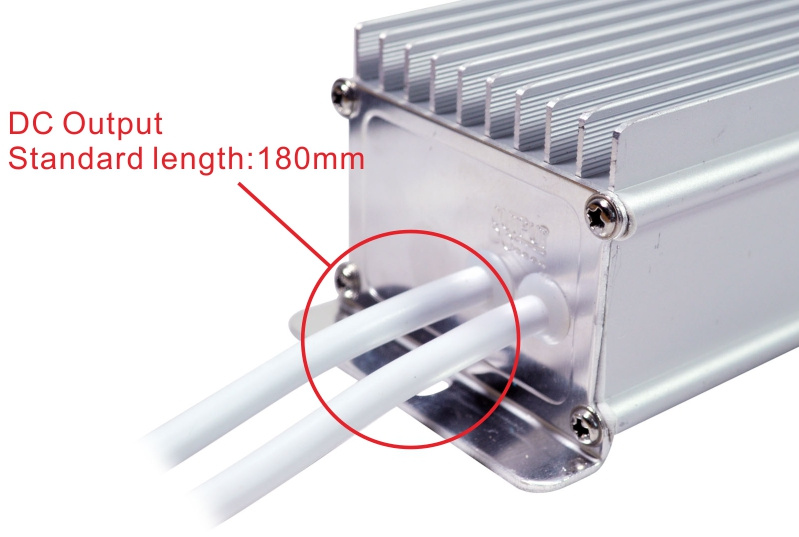

Connection input/output	Input:0.75mm²x3 (18cm) / Output:0.75mm²x2 (18cm)

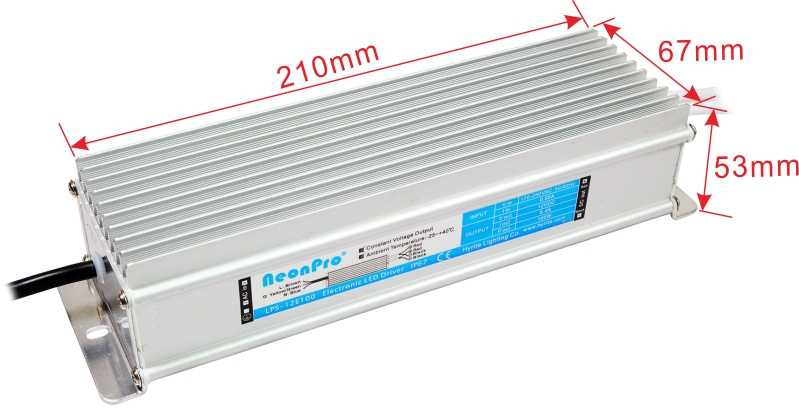

Dimensions(LWH)	2436750mm
Weight(kg)	1.04

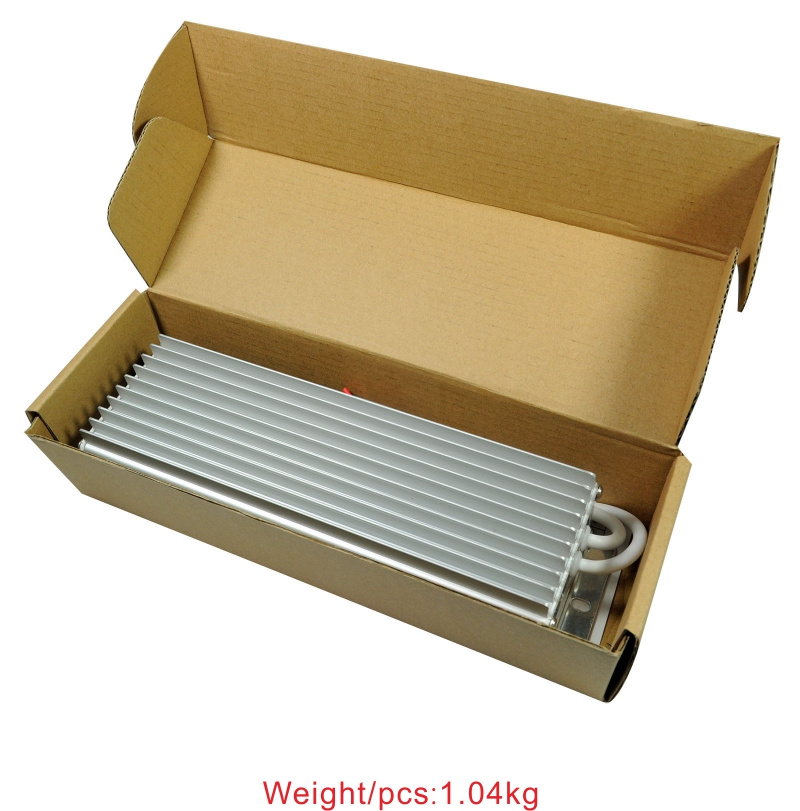

Packing information	10Pcs/ Carton, G.W 11.5KG

Detailed Pictures

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
