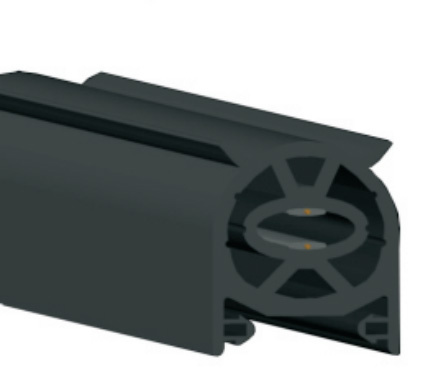

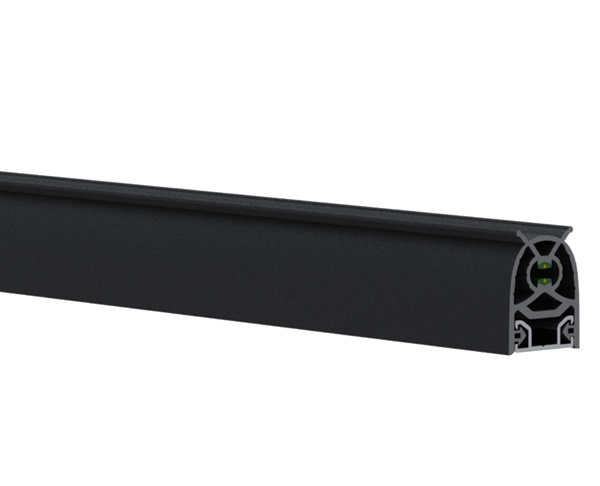

104 Integrated Safety Edge for Gateway

Product Description

All safety edges internal structure has two or three switch contact surface, each switch inside containing a copper wire line, which was separated from each other under static state certain distance between them. The safety edges was assembled by a terminal resistance finally,which was monitoring the whole system. On one hand, this special design could prevent the short circuits and fittings problem, on the other hand, if the edges change,the resistance will instruct the whole system working to prevent the danger happening immediately.

Safety edges series application and theory
YOHE safety contact edge products in security solution are used for easy accident extrusion and shear on the edge of the opening and closing of a pressure sensor products, which are widely used, such as automatic garage door, industrial gate, the courtyard door, gate, revolving door, sliding door, machinery and other equipment to protect the security of personal information, etc.

YOHE safety contact edge products in security solution are used for easy accident extrusion and shear on the edge of the opening and closing of a pressure sensor products, which are widely used, such as automatic garage door, industrial gate, the courtyard door, gate, revolving door, sliding door, machinery and other equipment to protect the security of personal information, etc.

Technical parameters: the product use the innovation of epdm and butadiene-acrylonitrile rubber mixed, to ensure it more flexible in the low temperature. Application temperature from -25 ºC to + 60 ºC. Resistance generally < 150-500 Ω, launch distance up to the product specification , bending Angle up to 15 degrees

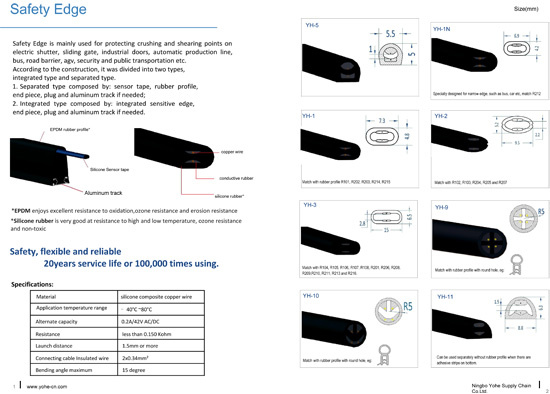

Technical deta:

For more information, pls contact us freely.
