1080P 150m HDMI Extender
| Price: |
US $ 41-43/Piece |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
HDMI extender |
| Version: |
HDMI 1.3 |
| Resolution: |
1080P/60Hz |
| Sound Sampling Frequency: |
96kHz |
| Power Input: |
DC5V/1A |
| Dimension (Length X Width X Height): |
94mmx83mmx23mm |
Product Description

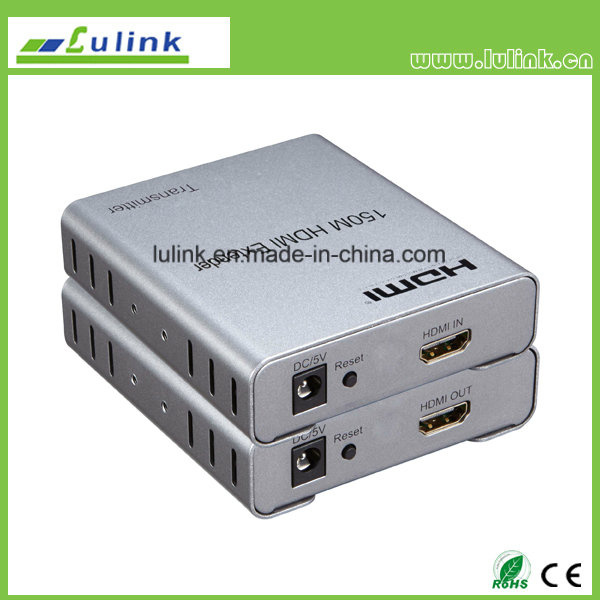

1080P 150m HDMI extender
"QUALITY IS OUR CULTURE"Product introduction :
This 150m HDMI Extender can transmit high definition signal of Blu ray DVD player, PC and other equipment via CAT5E/6 cable, support the highest resolution of 1080P transmission distance up to 150 meters. The product is stable, easy to install, and highly practicable, It can be used in major projects, meeting halls and other places.
Features & Specifications : - Support HDMI 1.3 version
- Support the highest resolution up to 1080P/60Hz,1080i,720p...
- Support sound sampling frequency: 44.1KHz ,48KHz and 96KHz, etc.
- Support 36 bit deep color
- Support the Max transmit distance: When input 1080P ,the max distance is 150M
- Power input: DC5V/1A
- Dimension (length x width x height): 94mmx83mmx23mm
Physical Connection Showing Picture :

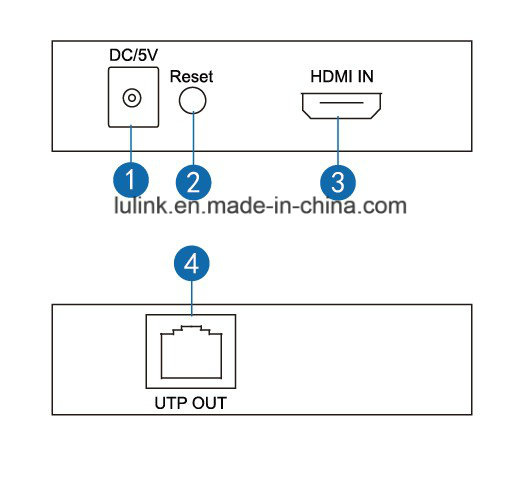

Transmitter :
1: DC/5V ---DC5V power input port
2: Reset ---Reset key
3: HDMI IN---HDMI input port
4: UTP OUT---UTP output port
Receiver:
1: DC/5V ---DC5V power port
2: Reset ---Reset key
3: HDMI OUT---HDMI output port
4: UTP IN---UTP input port

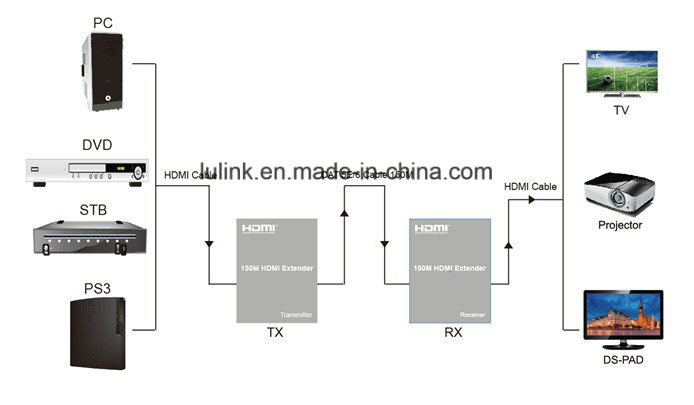

Application diagram :
When the resolution is 1080P, the max distance is 150M(cat6 cable)
Connection and Operation :
1: Connect the HDMI source device and HDMI Transmitter with HDMI cable.
2: Connect the HDMI receiver and the display device with HDMI cable.
3: Connect the UTP port of HDMI receiver and HDMI transmitter with cat-6 cable,
it can be up to 150 meters.
The Package includes :
1: HDMI Transmitter x1pc
2: HDMI Receiver x1pc
3: Power adapter 5V/1A x2pcs
4: User manual x1pc
