| Prod Model: |
SISO-40 |
| Working Temperature: |
-5--- +60 |
| Rated Current: |
10A,16A,20A,25A,32A,40A,50A,60A |
| Rated Voltage: |
600VDC to 1500VDC |
| IP Rating: |
IP66 |
| Connection Type: |
M20,M25,Mc4 |
| Structure: |
Single-column Disconnector |
| Installation: |
Outdoor High-voltage |
| Operation: |
Manual |
| Grounding: |
Double Ground |
| Run: |
Plug-In |
| Switching Mode: |
Double-Throw Type |
| Certification: |
TUV, SAA,IEC |
| Type: |
DC600V-DC1500V |
| Number Of Poles: |
2p,3p,4p |
| Series: |
2p,3p,4p |
| Common Model: |
Siso |
| Brand: |
Suntree/OEM |
Product Description

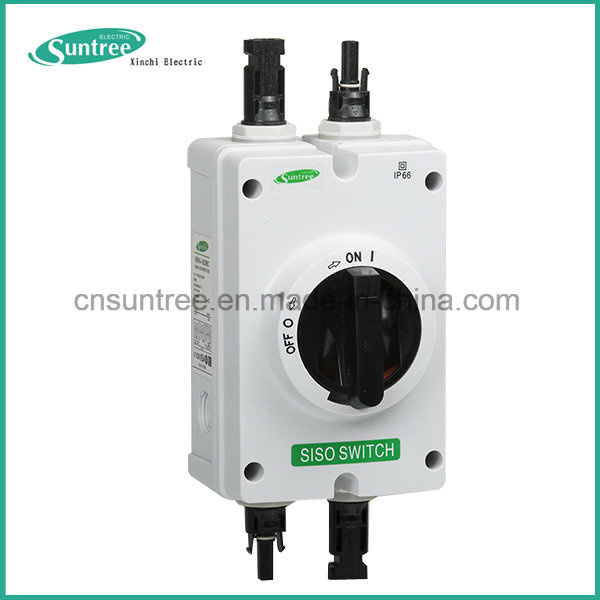

Solar DC isolator switch with enclosure for solar phovoltaic system

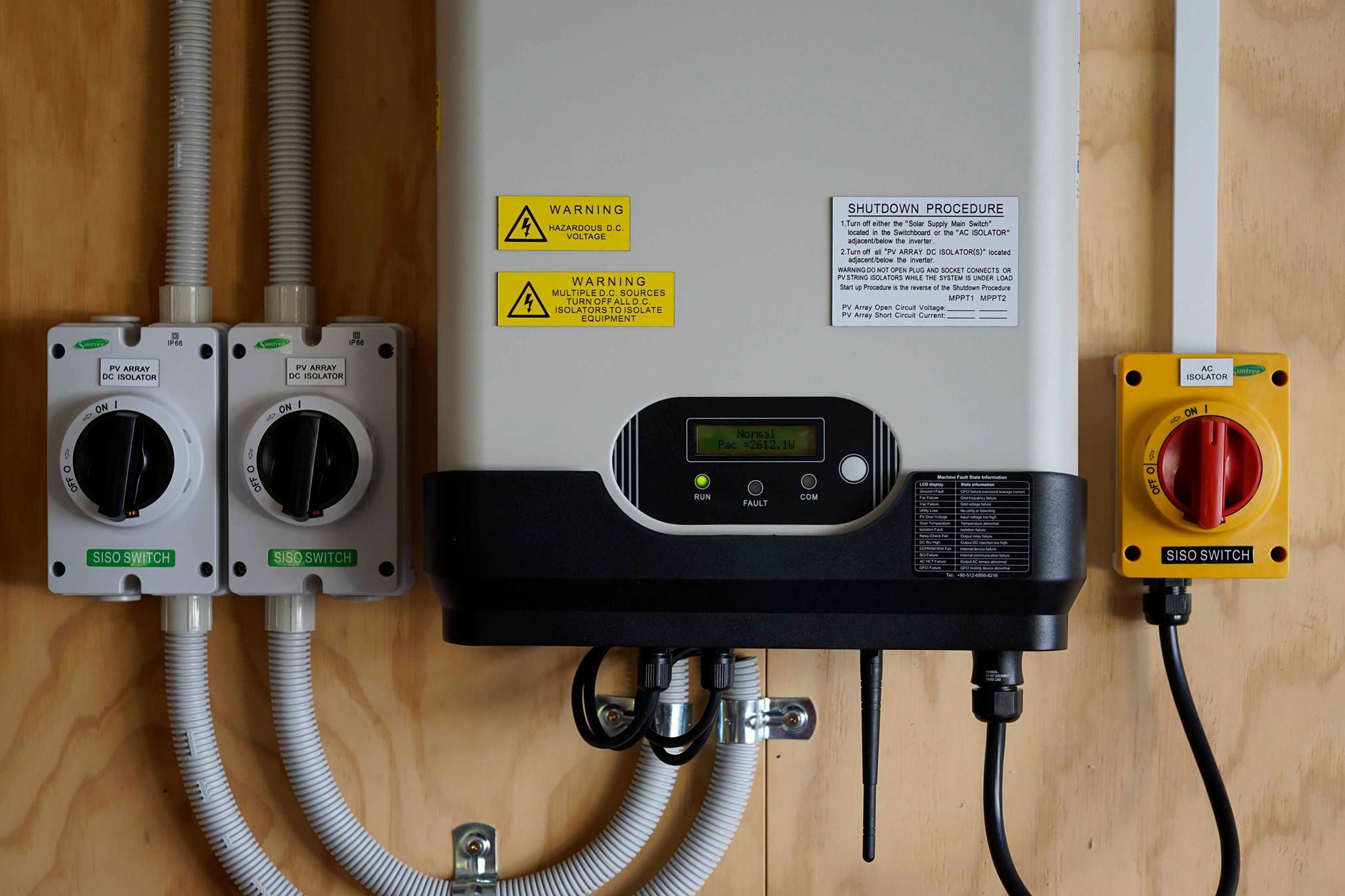

All grid-connected generation systems (wind, PV, Hydro, CHP) must have G83 Grid-connection equipment, and must include a DC isolator on the DC side of the grid-tie inverter, and an AC-isolator on the AC side of the grid tie inverter.| SISO switch |
| |
| Catalogue number construction |
| SISO | 3 | 25 | P | Y |
| "Safety | "NO.of poles | "Operational | "Switch type | "Colour |
| isolating | 3=3 pole | current rating | P-Polycarbonate | Y-Yellow/Red |
| switch | 4=4 pole" | 25A 32A | R-Rotary with handle | G-Grey/Black |
| | | | | |

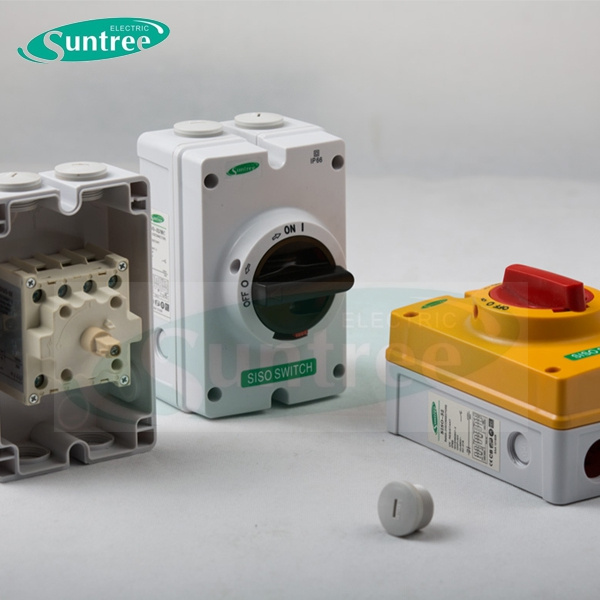

| SISO Switch | | | | |
| Safety isolating switches | | | | |
| Polycarbonate enclsoed rotary switches |
| Compact and suitable were space is limited |
| DIN rail mounting for easy installation |
| Load-breaking up to 8 times rated current making it ideal for motor isolation |
| Double-break with silver rivets-superior performance, reliability and long lasing |
| Highly visible red/yellow handle |
| Large padlockable red/yellow or grey/black handles |
| Comprehensive range, 16 to 32A modles |
| High IP 65 rating |
| High breaking capacity with 12.5mm contact air gap |
| Easy to install and operate |
| Eas snap-on fitting of auxiliary switches |
| Specifications | | | | | |
| | | | | | |

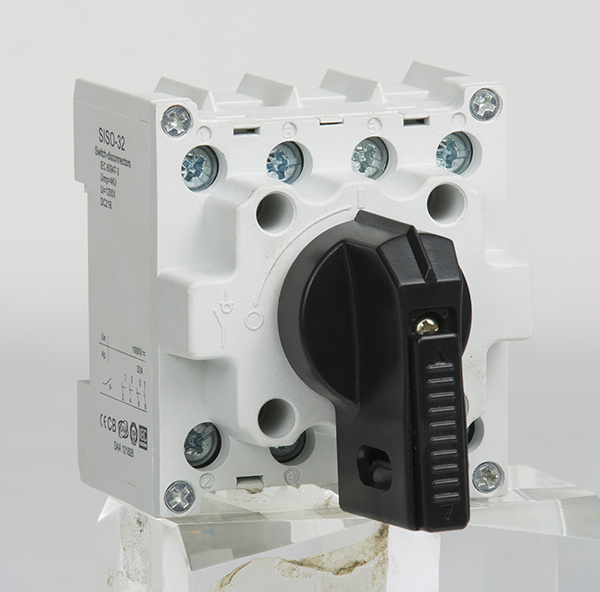

| 3/4Pole SISO Switch |
| | | | | | |
| Main contacts | Type | SISO-63 |
| Rated thermal current l the | A | 16 | 25 | 32 |
| Rated insulation voltage Ui | V | 1000 | 1000 | 1000 |
| Rated operational current leDC21B |
| 2 pole in series | 600V | A | 16 | 25 | 32 |
| 2 pole in series + 2 poles parallel | 600V | A | 29 | 45 | 50 |
| 900V | A | 13 | 16 | 20 |
| 1200V | A | 9 | 11 | 13 |
| 3 ples in series | 900V | A | 16 | 25 | 32 |
| 1000V | A | 16 | 25 | 32 |
| 4 poles in series | 600V | A | 16 | 25 | 32 |
| 1000V | A | 16 | 25 | 32 |
| 1200V | A | 16 | 25 | 32 |
| Rated operational current le DC22B |
| 2 poles in series | 600V | A | 5.5 | 6 | 6.5 |
| 900V | A | 2 | 2.5 | 3 |
| 1200V | A | 1 | 1.5 | 2 |
| 3/4Pole SISO Switch |
| 3 poles in series | 600V | A | 16 | 23 | 25 |
| 900V | A | 6,5 | 7 | 7,5 |
| 1200V | A | 6,5 | 6 | 6,5 |
| 4 poles in series | 600V | A | 16 | 25 | 27,5 |
| 900V | A | 11,5 | 12 | 12,5 |
| 1200V | A | 8 | 9 | 10 |
| Rated conditional short-circuit current | | A | 5 | 5 | 5 |
| Mechanical life | | *10 | 10 | 10 | 10 |
| Rated short-time withstard current(Is) | 2,4/2+2H | A | 800/1300 | 900/1500 | 1000/1700 |
| Short circuit making capacity | lcm | | 800/1300 | 900/1500 | 1000/1700 |
FAQ:
Q: What's your warranty ?
A: Two years
Q: How can i trust you and your company ?
A: Suntree is a group company, we have 6 subcompanies.
Have cooperation with LS, EKF the world-class companies.
Our company over 500 employees, products pass
CE,IEC,TUV,SAA, RCM, ROHS certificates.
Q: What's your contact information:
A: Our address: Liushi town, Zhejiang province, China.
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare,
then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=500pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by made-in-china,
or send us by email, we will reply within 24hrs.
Thank you & Now pls send your inquiry ! ^!^
