10A 16A 20A25A32A 30mA RCBO 1p+N Circuit Breaker SAA

Name: 10A 16A 20A25A32A 30mA RCBO 1p+N Circuit Breaker SAA
Brand: all-electronics-online.com
SKU: 729490492
Availability: InStock
Rating: 4.7 (122 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FNC2-32
Rated Voltage:	220V/230V
Certificate:	Ce CB ISO9001 SAA
Standard:	IEC61008-1
Working Temperature:	"-5°"to +40°
IP Degree:	IP20
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Certification:	SAA
Structure:	RCBO
Poles Number:	1p+N
Function:	RCCB&MCB

Product Description

DPNL earth leakage circuit breaker is used for the protection, against electrical leakagein the circuit of 50Hz or 60Hz, rated voltage single-phase 230V, rated current up to 32A.

When somebody gets an electric shock or residual current of the circuit exceeds the fixed value, the ELCB can cut off the power within the time of 0.1s automatically

protecting the personal safety and preventing the equipment from the fault resulted from the residual current. With this function, the ELCB can protect the circuit against overload and short circuit or can be used for the infrequent switch over of the circuit under normal conditions.

The main technical parameters

Rated current	6A,10A,16A,20A,25A,32A
Breaking capacity	4500A(IEC 60947)
Rated voltage	230V 50Hz
Earth leakage operating current	30mA,AC/A type
Trpping characteristics	C type 5-10In instantaneous tripping
Wiring	Wire below 10mm2
width	18mm
Trip indication position	Device front

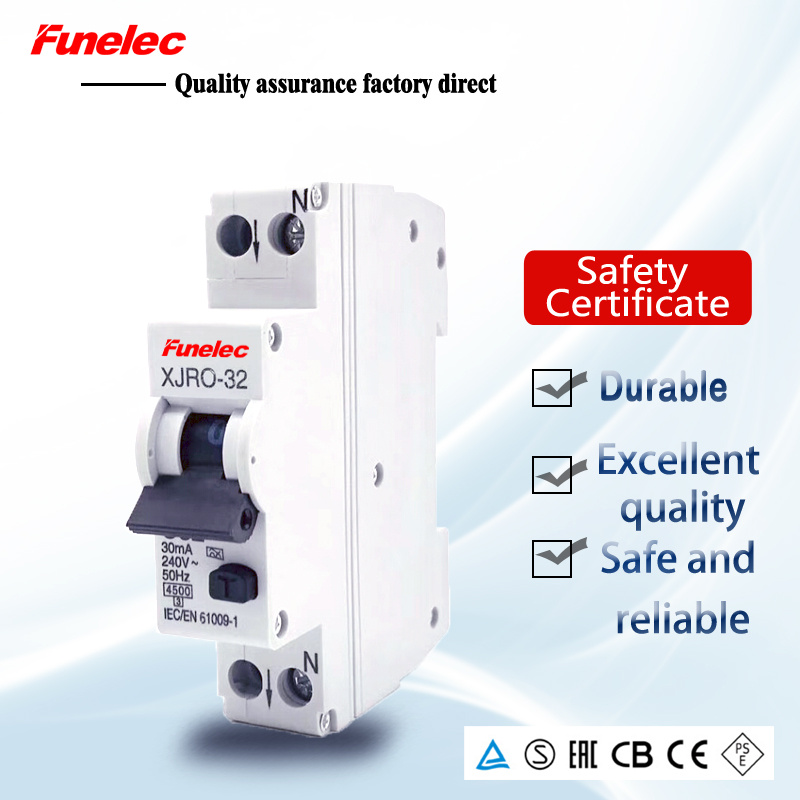

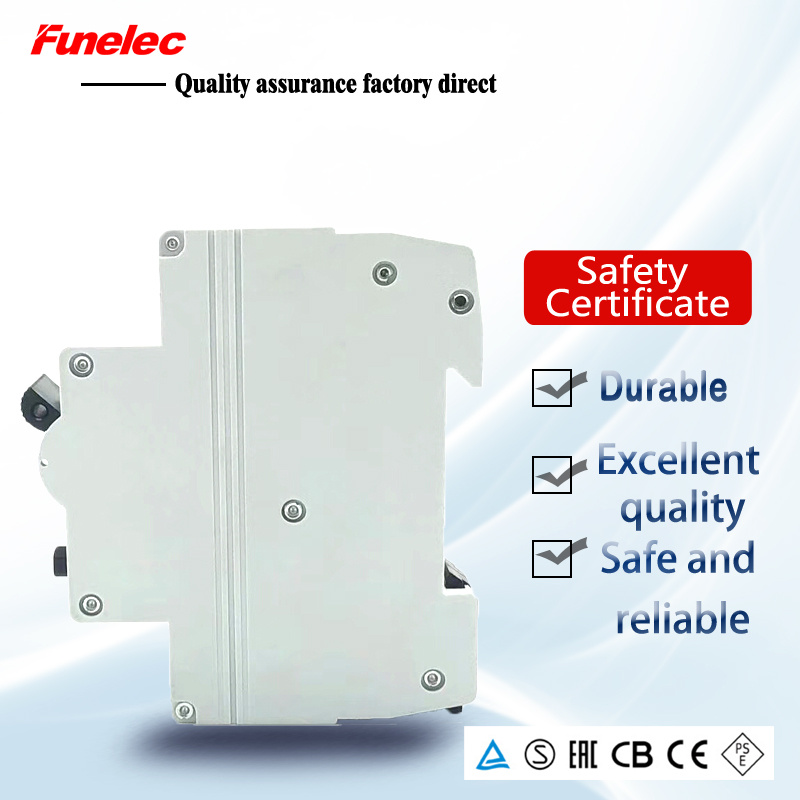

Products Picture:

Packaging & Shinpping:
1.Standard export box package
2.Delivery Time: 10-15 days for batch goods.
4.Shipment port:SHANGHAI/NINGBO
5.By Air or by Sea for batch goods,Airport/ Port receiving;
6.Customers specifying freight forwarders or negotiable shipping methods!

Our Services
1.One to one service,Feedback within 24 hours
2.Design for special packing, Products printing and logo OEM
3.Find the solution for any problems actively

Company Information

FAQ
Q: If I'm interested in your RCBO when I can receive your quotation and detail information after send the enquiry?
A:All your enquiry will be replied in 24hours.
Q:Your RCBO seems perfect but what's the difference between you and other suppliers?Because I find some cheaper price from others!
A: Our RCBO are high quality customized.I think compare the quality first and then compare the price is the best way.
Q:Can I get a sample before the order because I really don't how is your RCBO quality?
A:Of course!We also think sample order is the best way to build the trust.And in our company we offer free sample service!Please send the enquiry to us and get the free sample!
Q:How's the delivery?Because I really need them is urgently?
A:For sample order 3~7days will be no problem.And for regular order we promise in 15days.
Q:How's the warranty period for your RCBO?
A:We offer one year warranty for our customer.

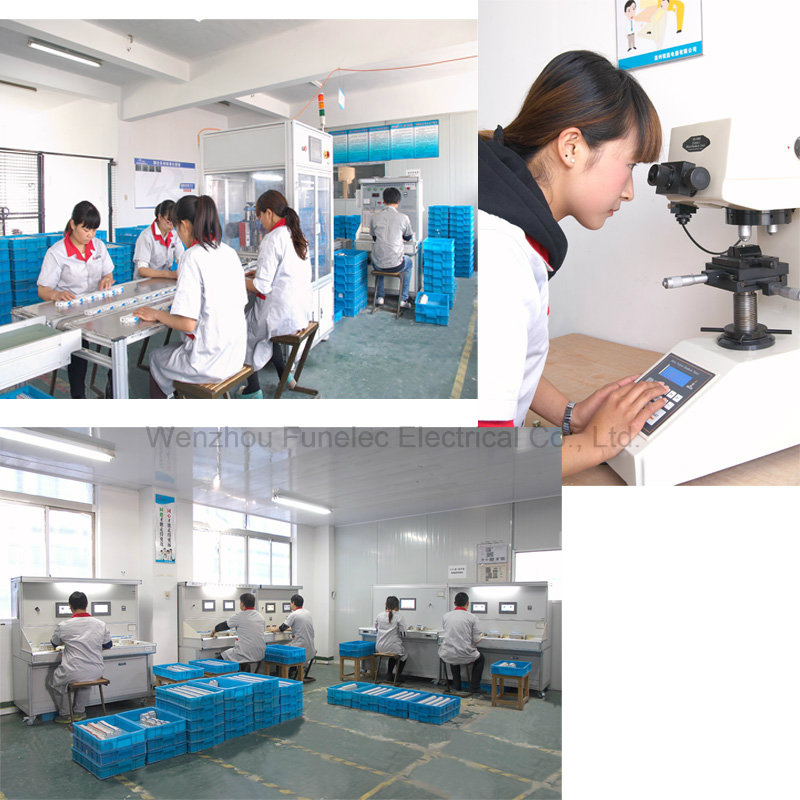

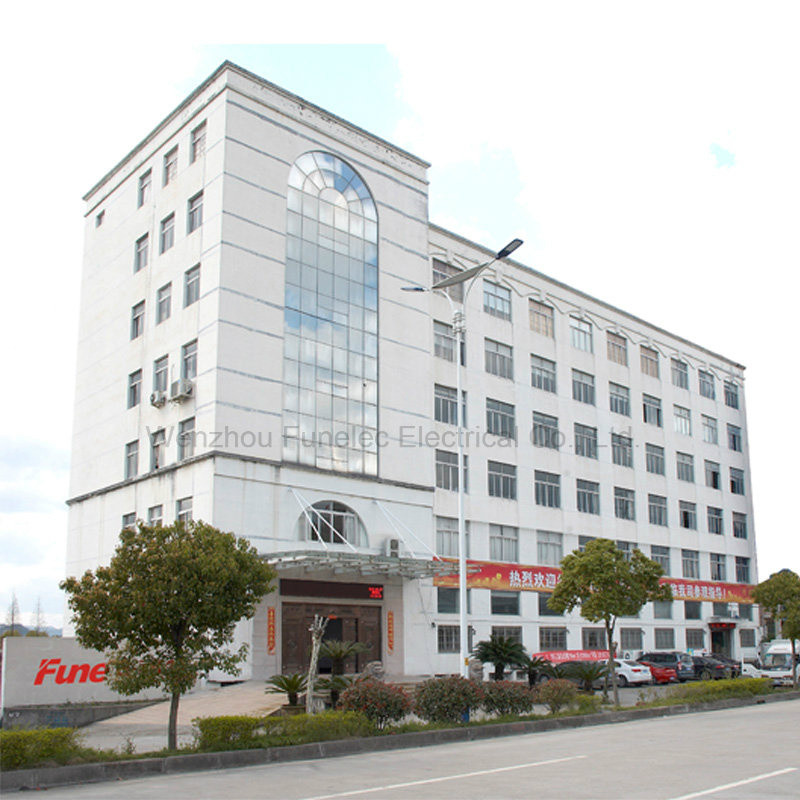

WenZhou Funelec Electrical Co., Ltd., which specializes in manufacturing series of breakers, is a scientific enterprise integrating with scientific research, manufacture, processing and trading business. It has 300 employees with an area of more than 3000 square meter.

The main products in our company are Miniature Circuit Breaker, Residual Current Circuit Breaker, isolator. It consists of 9 series of products with over 60 types. Our products apply into high end of market in the world. With the safe product certificate of EU-CE, Sweden S, Finland F1, Poland B, Argentina IRAM&CB and the certificate of China CCC, ISO9001 International Quality Management System, the qualification of products reaches advanced world level, and the quality is accepted by high end of market. Meanwhile, we have our own intellectual rights for breakers and leakage breakers and have advanced testing and assembly equipment and exquisite manufacture techniques.

It covers worldwide markets, among them European as a leading market with many customers from top 500 enterprises. WenZhou Funelec Electrical Co., Ltd.
